ERGOMETRICS CT 870 PRO Handbuch Seite 10

Step 4
59
40 30
38
36 29

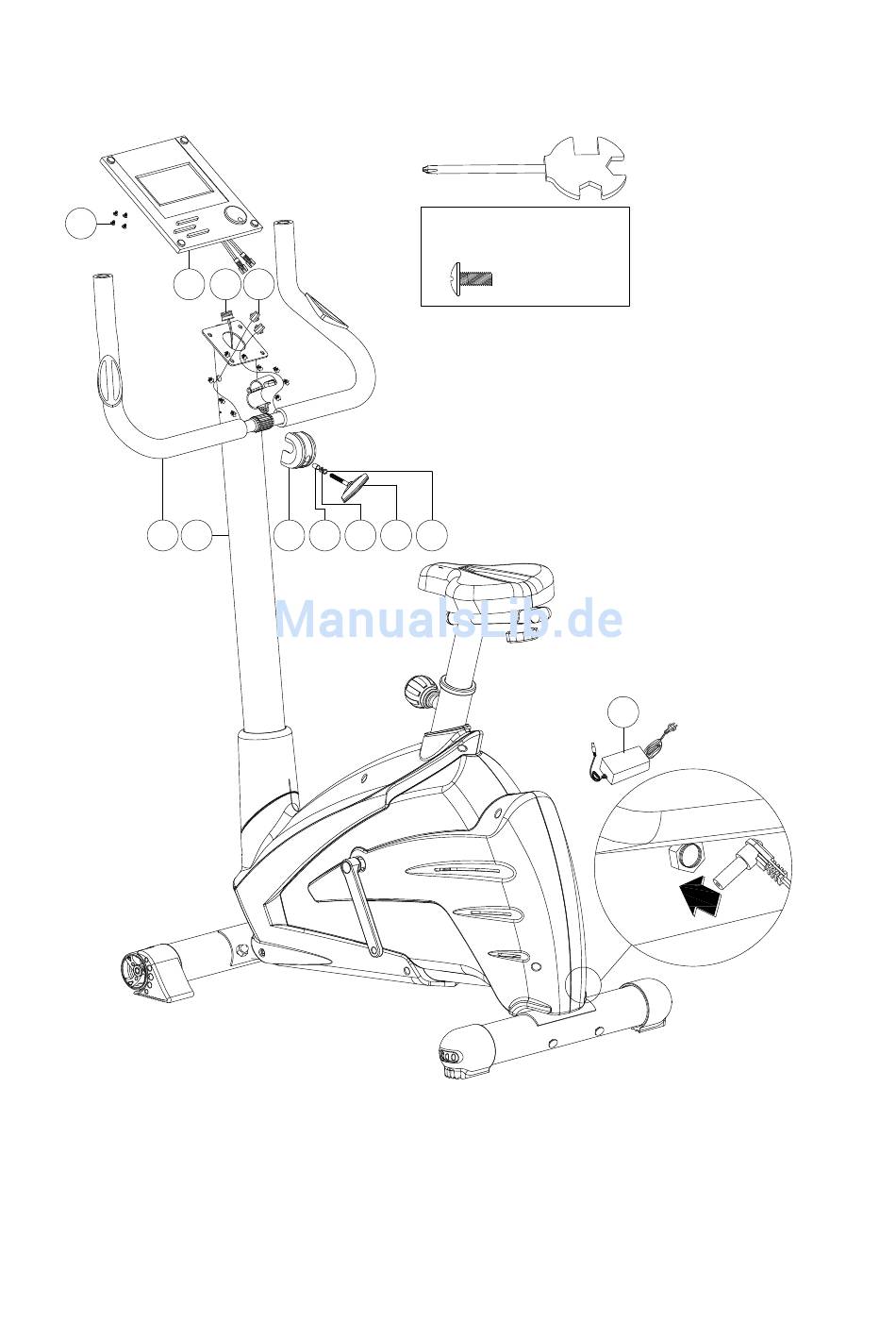

1. Assemble the handle bar (36) to the handle bar post (29) by fixing the cover (42), the flat washer (43),
the spring washer (44), the bushing (45) and the T-shaped knob (37).
2. Connecting the upper computer cable (40) and the handle pulse cable (30) with the computer (38).
And then assemble the computer onto the handle bar post (29) by fixing the screw (59).
3. The user could adjust the position of the handlebar by turning the T-shaped knob (37).
D
42 45 44 43
37
10
(x4)
M5*10L
15
