5.2.7. Closing limit switch.
Terminals "FCC & COMF". Normally closed contact. It stops the gate closing movement. The status of this input
is signalled by LED "FCC".
Attention:
• Both limit-switches must be connected to ensure correct operation of the automated system.
• The COMF terminal must be used ONLY FOR connecting the common contact of the limit-switches.
5.3. TERMINAL BOARD CN3
5.3.1. Gearmotor
Terminals "APM - CHM - COM" (opens - closes - common). Connect the gearmotor power cables to these
terminals, connecting the capacitor between terminals APM and CHM.
5.3.2. Flashing lamp
Terminals "LAMP & N". Connect the flashing lamp to these terminals. Output of these terminals is 230V~.
Attention: The flashing is not commanded by the control unit but by the flashing lamp.
5.3.3. Power line
Terminals "N & F". Connect power supply line 230V~ 50Hz to these terminals.

6. INSTALLING THE RADIO CONTROL RECEIVER BOARD

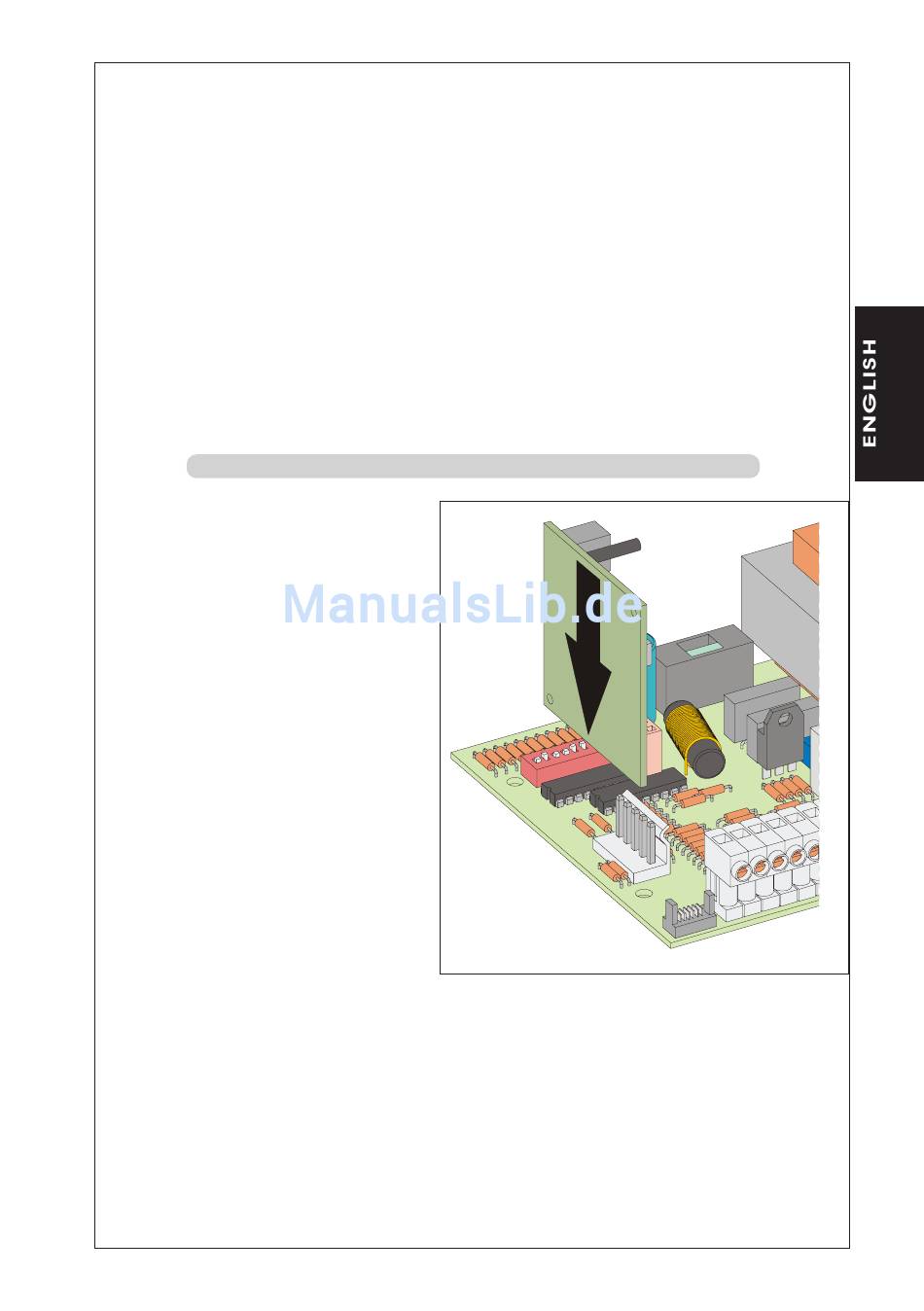

The control unit is designed to house a 5-pin radio-
receiver module. Installation procedure: turn off
power and fit the module on connector CN4 (see
Fig.1) on the control unit.
Attention: To avoid damaging the receiver
and thus irreparably compromising its
operation, the receiver must be installed,
observing the fitting direction specified in
Fig.2.
Then, follows the radio-receiver instructions for
memory-storing the radio control.
11
Fig. 2
