Standards/regulations

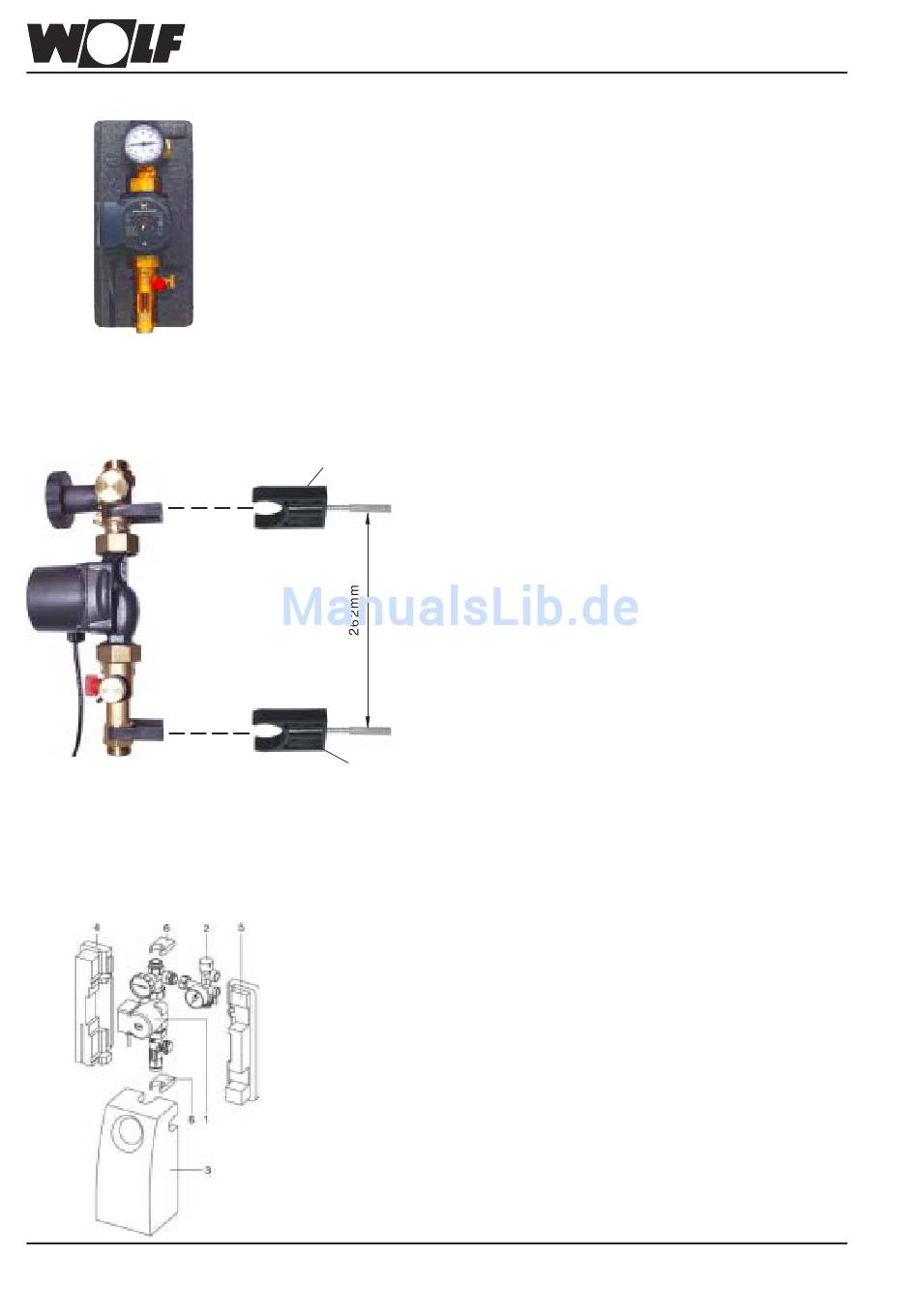

Fig. 1: Installation position of the pump
fittings assembly
Installation location
Wall mounting
Fig. 2: Pump fittings assembly clipped into
the wall mounting brackets
Installing connection pipes
Fitting rear insulating shells
4
Installation instructions
Pump fittings assembly 10E / 20E
Connection of thermal solar systems
- DIN 4757 Pt. 1 Solar heating systems operating with water or water mixtures as the
process medium, requirements relating to safe design and construction.
- DIN 4757 Pt. 2 Solar heating systems operating with organic process media,
requirements relating to safe design and construction.
Installation and equipment of hot water heaters
- DIN 18380 Heating water and service water heating systems
- DIN 18381 Gas, water and waste water installation work
- DIN 18421 Heat insulation work on thermal systems
- AVB Water
Electrical connection
- VDE 0100 Installation/construction of electrical power installations up to 1000 V
- VDE 0185 Lightning protection systems
- VDE 0185 Operation of electrical power installations up to 1000 V
- DIN 18382 Cables and lines in buildings
The pump fittings assembly is to be installed in the return line of the solar heating system.
wall mounting bracket top
wall mounting bracket bottom
- Use threaded clamping ring unions to fit the pipes of the solar heating system at
the upper and lower connections. Insert the pipe ends, cut off at right angles, as far
as they will go into the connections and use a correspondingly sized open-ended
spanner to firmly tighten the threaded clamping ring unions. Use a spanner as a
brace to hold the joint when tightening.
- Slide rear insulating shells 4 and 5 into position from the right and left.
- Remove the pump fittings assembly
from its packaging and remove the
insulating shells.
- Mark drill holes (spacing between
centres 262 mm), drill (Ø 8 mm) and fit
the wall plugs supplied.
- Unclip pump unit from upper and lower
wall mounting bracket.
- Secure wall mounting brackets with
supplied screws and clip pump unit
back into the wall mounting brackets.
3061447_0506
