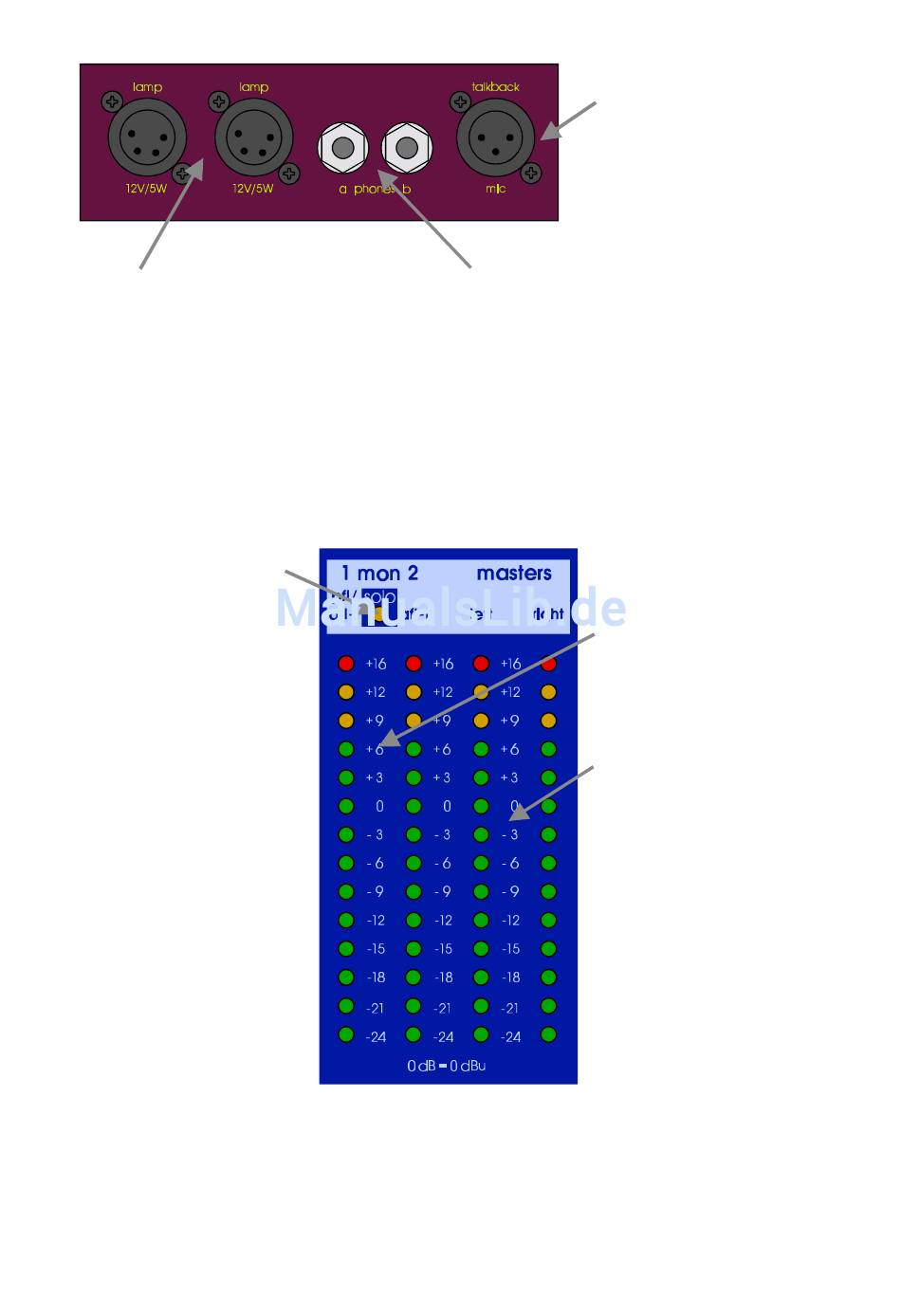

A convenient connection for two
12V desk lamps is provided via the
4pin-female XLR connectors. The
power rating 5W is the maximum
rating per output and may not be
exceeded.
Whenever a solo button is en-
gaged the SOLO led turns on
and the mon 1/2 metering is
autom a tically used as solo
meter.
In pfl-mode the mon1 meter
displays the signal level in
dBu of the selected solo sour-
ce at the pre- fader position.
In afl-mode the mon1 (afl-l)
and mon2 (afl-r) meters are
active and display the signal
levels in dBu in the stereo
image at the after- fader posi-
tion.
The 1/4 inch jack sockets
provide stereo outputs for
two PHONES. Both outputs
are controlled via the phones
rotary control.
The input for a TALKBACK Mi-
crophone is provided via a 3pin-
female XLR connector. The +48V
Phantom power is permanently
connected which is suitable for
condenser m icrophones.
T h e M O N m eters display the
post fader peak signal levels of
the monitor outputs. Whenever a
solo button is engaged the meter
displays the peak signal levels of
the selected pfl or afl solo source.
The MASTER meters monitor
the peak signal levels of the m a-
ster outputs left and right (post
fader).
