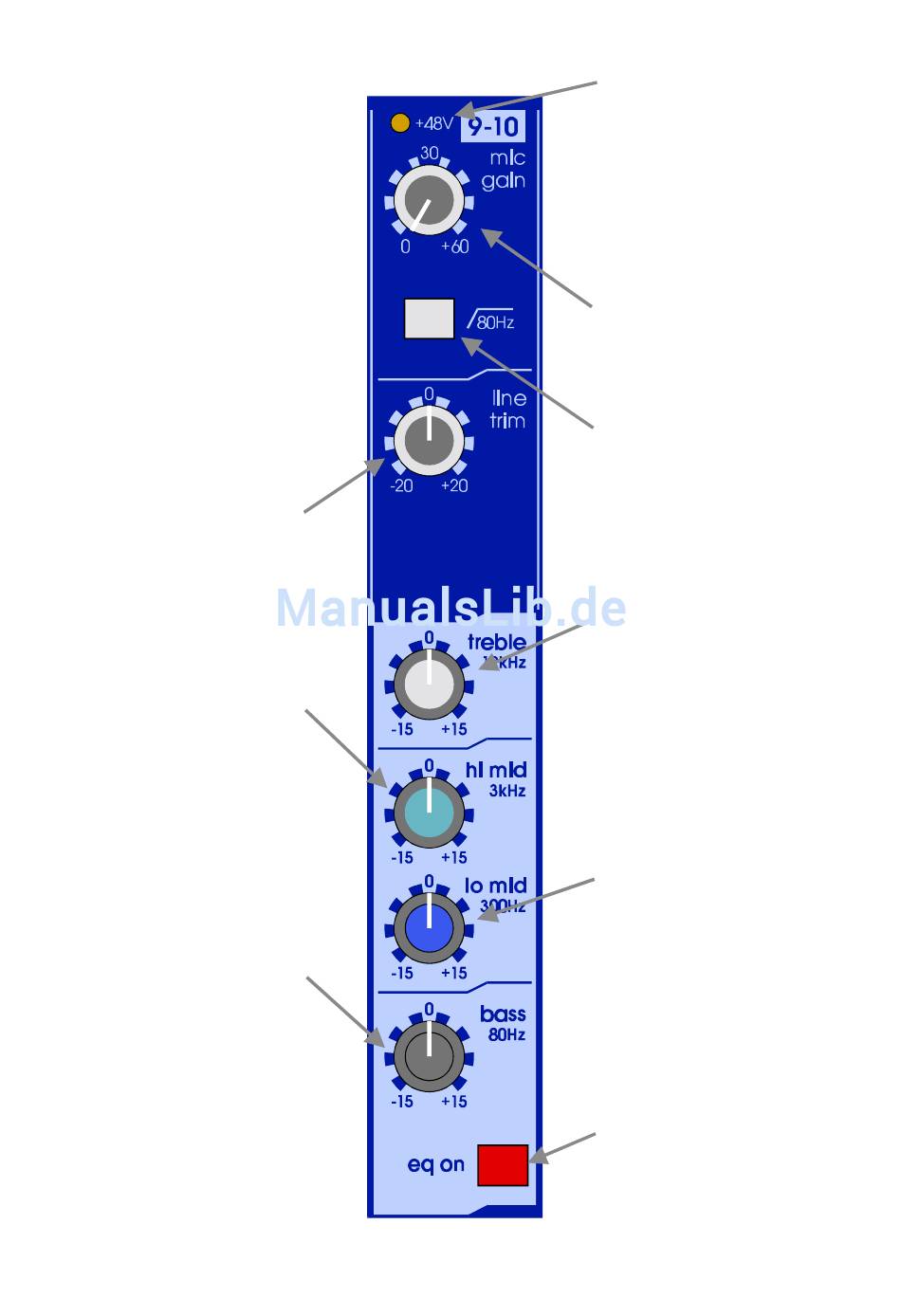

The Venice stereo input chan-
nel is equipped with an XLR
input which can be used for M ic
o r L i n e l e v e l s i g n a l s u p t o
+22dBu. Two additional ¼ inch
jack sockets, provide an input
for Stereo- or Mono Line level
signals up to +28dBu. The ste-
reo channel features the same
hi-value m icrophone pre-amp
as the mono channel. Because
the stereo input channel uses in-
dependet circuits for M ic and
Stereo Line , it is possible to
have all inputs connected at the
s a m e t i m e , w i t h o u t i n t e r f e-
rence.
The LINE TRIM control gives
continuous adjustment of the ste-
reo input amplifier gain from -
20dB to + 20dB for the Stereo
Line input.
The HI MID control gives conti-
nuous adjustment of boost and
cut from + 15dB to - 15dB with
a 0dB centre detent. The HI M ID
equaliser acts on 3kHz with a 1.4
octaves bandwith.
The BASS control gives conti-
nuous adjustment of boost and
cut from + 15dB to - 15dB with
a 0dB centre detent. The bass
equaliser acts on 80Hz with a
traditional M IDAS shelving re-
sponse.
The +48V switch for each chan-
nel is positioned at the rear panel
of the console. It connects +48 V
phantom power to the XLR input
connector. This is suitable for a
c o n d e n s e r m i c r o p h o n e o r D I
box.
The M IC GAIN control gives
continuous adjustment of the in-
put amplifier gain from 0dB to
+ 60dB for the M ic input.
The HI PASS switch connects
the the 80Hz hi-pass-filter in the
input channel signal path right
after the m ic input amplifier.
The TREBLE control gives con-
tinuous adjustment of boost and
cut from + 15dB to - 15dB with
a 0dB centre detent. The treble
equaliser acts on 12kHz with a
traditional M IDAS shelving re-
sponse.
The LO MID control gives con-
tinuous adjustment of boost and
cut from + 15dB to - 15dB with
a 0dB centre detent. The LO
M ID equaliser acts on 300Hz
with a 1.4 octaves bandwith.
T h e E Q s w i t c h c o n n e c t s t h e
equaliser in the input channel si-
gnal path.
