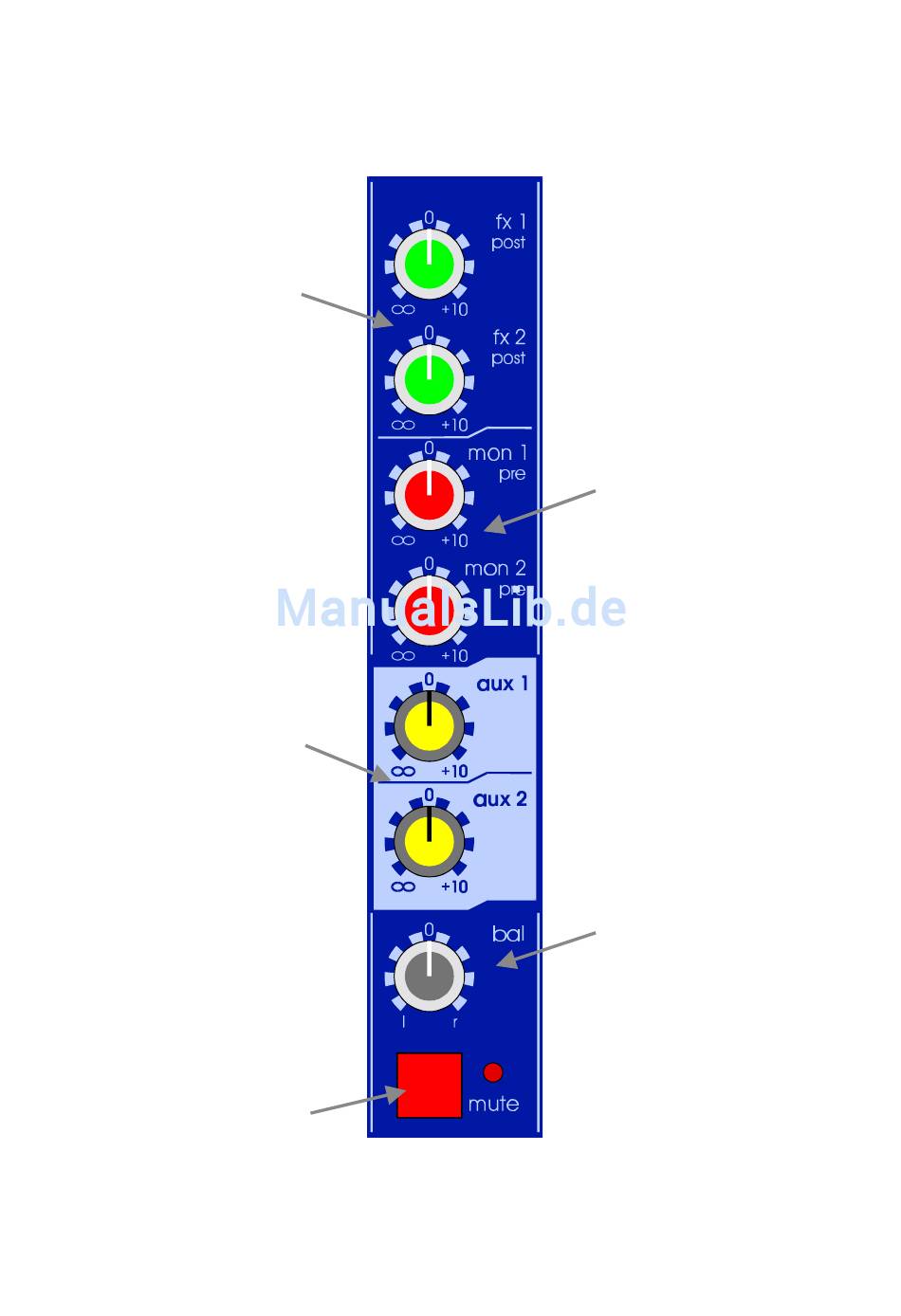

The FX controls give continuous
adjustment of the level sent from
the input channel to the FX bus-
ses. The level adjustment is from
+ 10dB to off with 0dB at the
centre position of the rotary con-
trol. The FX controls are connec-
t e d p o s t - f a d e r a n d s e n d t h e
mixed left/right signal to the FX
busses.
The AUX controls give conti-
nuous adjustment of the mixed
left/right signal level sent from
the input channel to the AUX
busses. The level adjustment is
from + 10dB to off with 0dB at
the centre position of the rotary
control. AUX1 and 2 can be con-
figured globally for pre- or post-
fader operation by pressing the
PRE/POST switch on the appro-
priate A U X -rail in the master
section.
The MUTE switch mutes the in-
put channel at all points, inclu-
ding all auxiliary sends.
12
The M O N controls give conti-
nuous adjustment of the level
sent from the input channel to the
MON busses. The level adjust-
ment is from + 10dB to off with
0dB at the centre position of the
rotary control. The M O N con-
trols are connected pre fader, pre
equaliser and send the mixed
left/right signal to the MON bus-
ses.
The BAL (pan) control is used to
balance the relative levels of the
left and right channel signals that
are sent to the masters or groups.
The control has a constant power
law, i.e. -3dB at the centre posi-
tion and + 0dB or off at either
extreme setting. If the Stereo
channel used as mono input, the
B A L A N C E (pan) controls the
channel placement within the
master stereo- or group m ix.
