1st
MPX RR
MODEL
I. Install Multiplex receiver in the model
Follow the instructions supplied with the model.
II. Connect the servos according to the Multiplex sequence
Servo sequence:
Note: The servo assignment is not always clear at the early stage. The important
point is to assign the speed controller correctly, to avoid any danger of the motor
starting up accidentally. The control surface servos can be assigned later.
III. Install the battery (do not connect it!) and check the Centre of Gravity
Observe the position stated in the model instructions.
2nd
C
SX M-LINK
OCKPIT
RADIO CONTROL SYSTEM
I.
Prepare the Cockpit SX transmitter
I.I. Transmitter with
I.II. Transmitter with empty model memory
model memory
Download Multiplex Launcher from MPX site
-
Install Launcher on PC
-
-> move to II.
Use Launcher to transfer the memory contents to the
-
transmitter
II.
Select the model memory at the Cockpit SX
At the „GO TO" point of the (MEMO) menu:
Use the round 3D digi-adjuster in the centre of the transmitter.
(Functions: left
& right
and press )
to MENU, ..................1x (SETUP appears)
1x
to MEMO, ..................1x (GO TO appears)
4x
1x (0 appears, flashing)
Select model ................. (concludes select process)
Memory name and transmitter voltage displayed; Select process concluded.
MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • D-75015 Bretten • www.multiplex-rc.de

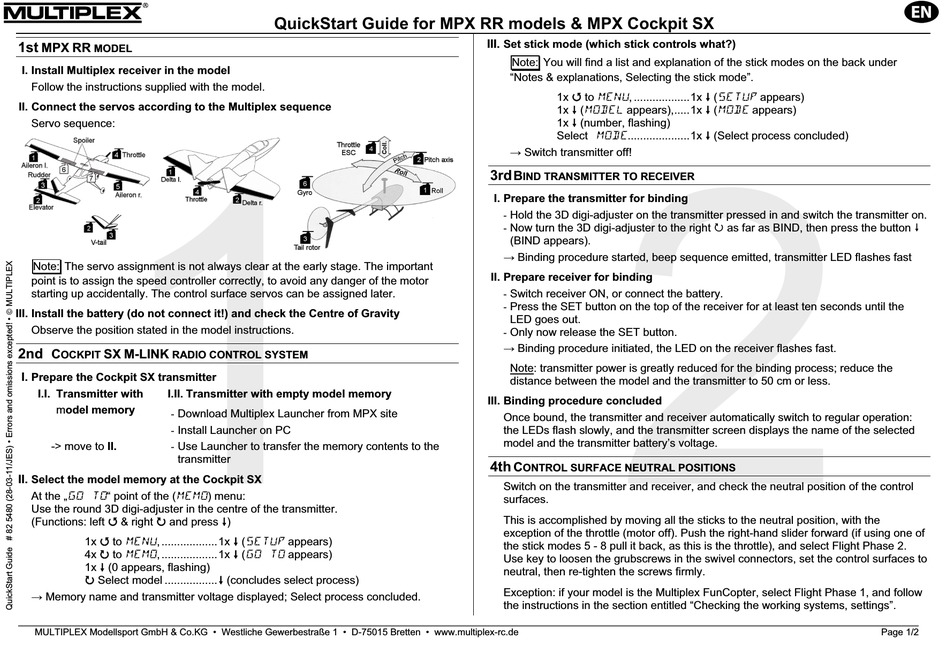

QuickStart Guide for MPX RR models & MPX Cockpit SX
III.
Set stick mode (which stick controls what?)
Note: You will find a list and explanation of the stick modes on the back under
"Notes & explanations, Selecting the stick mode".
to MENU, ..................1x (SETUP appears)
1x
1x (MODEL appears),.....1x (MODE appears)
1x (number, flashing)
Select MODE....................1x (Select process concluded)
Switch transmitter off!
3rd
B
IND TRANSMITTER TO RECEIVER
I. Prepare the transmitter for binding
Hold the 3D digi-adjuster on the transmitter pressed in and switch the transmitter on.
-
Now turn the 3D digi-adjuster to the right
-
(BIND appears).
Binding procedure started, beep sequence emitted, transmitter LED flashes fast
II. Prepare receiver for binding
Switch receiver ON, or connect the battery.
-
Press the SET button on the top of the receiver for at least ten seconds until the
-
LED goes out.
Only now release the SET button.
-
Binding procedure initiated, the LED on the receiver flashes fast.
Note: transmitter power is greatly reduced for the binding process; reduce the
distance between the model and the transmitter to 50 cm or less.
III. Binding procedure concluded
Once bound, the transmitter and receiver automatically switch to regular operation:
the LEDs flash slowly, and the transmitter screen displays the name of the selected
model and the transmitter battery's voltage.
4th
C
ONTROL SURFACE NEUTRAL POSITIONS
Switch on the transmitter and receiver, and check the neutral position of the control
surfaces.
This is accomplished by moving all the sticks to the neutral position, with the
exception of the throttle (motor off). Push the right-hand slider forward (if using one of
the stick modes 5 - 8 pull it back, as this is the throttle), and select Flight Phase 2.
Use key to loosen the grubscrews in the swivel connectors, set the control surfaces to
neutral, then re-tighten the screws firmly.
Exception: if your model is the Multiplex FunCopter, select Flight Phase 1, and follow
the instructions in the section entitled "Checking the working systems, settings".
as far as BIND, then press the button
Page 1/2
