6. Signal input connectors

1) Unbalanced

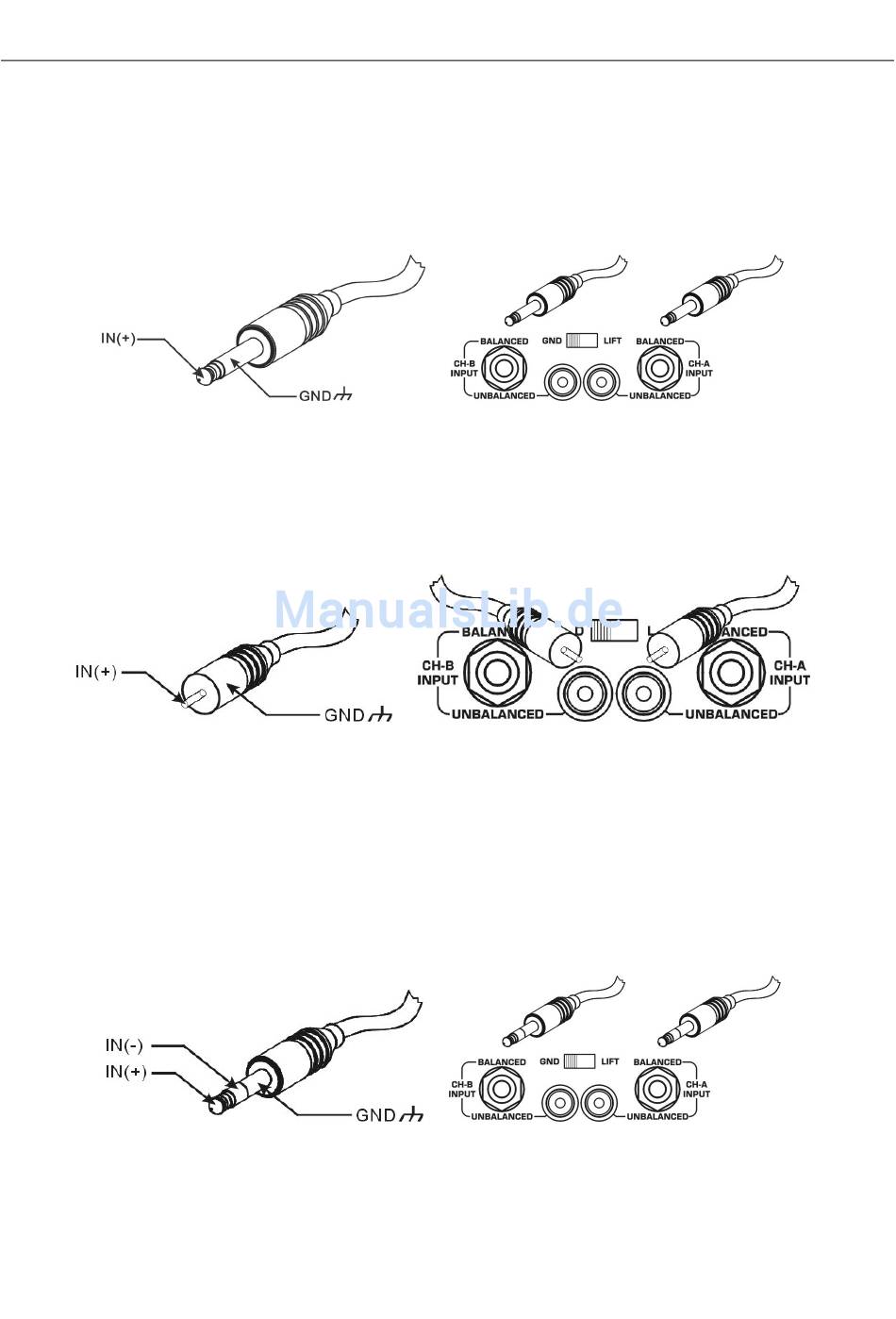

Fig. 1: Signal input via 1/4" mono jack connector
Mono jack connector:
Tip = + signal
Sleeve = ground
Fig. 2: Signal input via RCA connector
RCA connector:
Tip = + signal
Ring = ground
2) Balanced
Fig. 3: Signal input via stereo jack connector
Channel A and B signal input:
Sleeve = ground
Tip = + signal
Ring = - signal
Attention: Improper connections will result in malfunctions. Ensure that connections are correct before
beginning operation.
