These potentiometers are used to control the input volume of the amplifier.
10) Power switch
After the power is switched on, it takes approximately 3 to 4 seconds for the soft-start function to be
executed, then the amplifier is ready to operate.

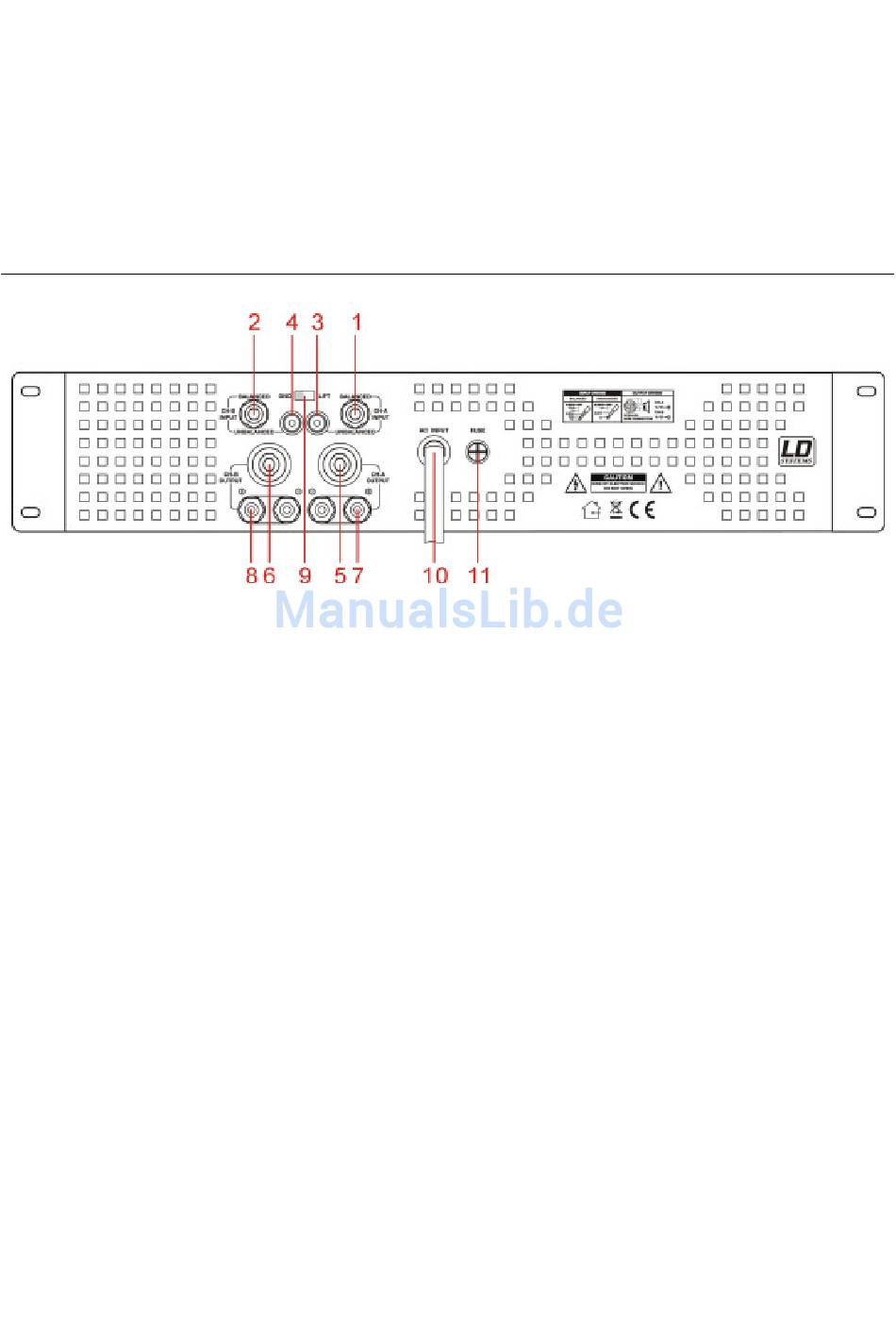

5. Rear panel

1/2) Channel A and B input jack connectors:
6.3 mm (1/4") jack connectors
Balanced: Sleeve = ground, tip = + signal, ring = - signal
Unbalanced: Sleeve = ground, tip = + signal
3/4) Channel A and B input RCA connectors:
Unbalanced: Ring = ground, tip = + signal
5/6) Channel A and B output Speakon connectors:
+1/+2 = + signal, -1/-2 = - signal
7/8) Channel A and B output pole terminals (binding post):
Red = + signal, black = - signal
9) Ground-lift switch
10) AC power cord for mains power supply
11) Fuse: F5A/250V
