4 Spare Parts
18627 limit switch
18628 limit switch
20669 plexiglas lid
25125 ice container PE
31410 operating capacitor
32313 spiral wheel
32314 gear motor
34107 knob handle for plexiglas lid
42405 crusher shaft VA
43335 outer casing
43440 motor coupling
43443 bearing of the shaft

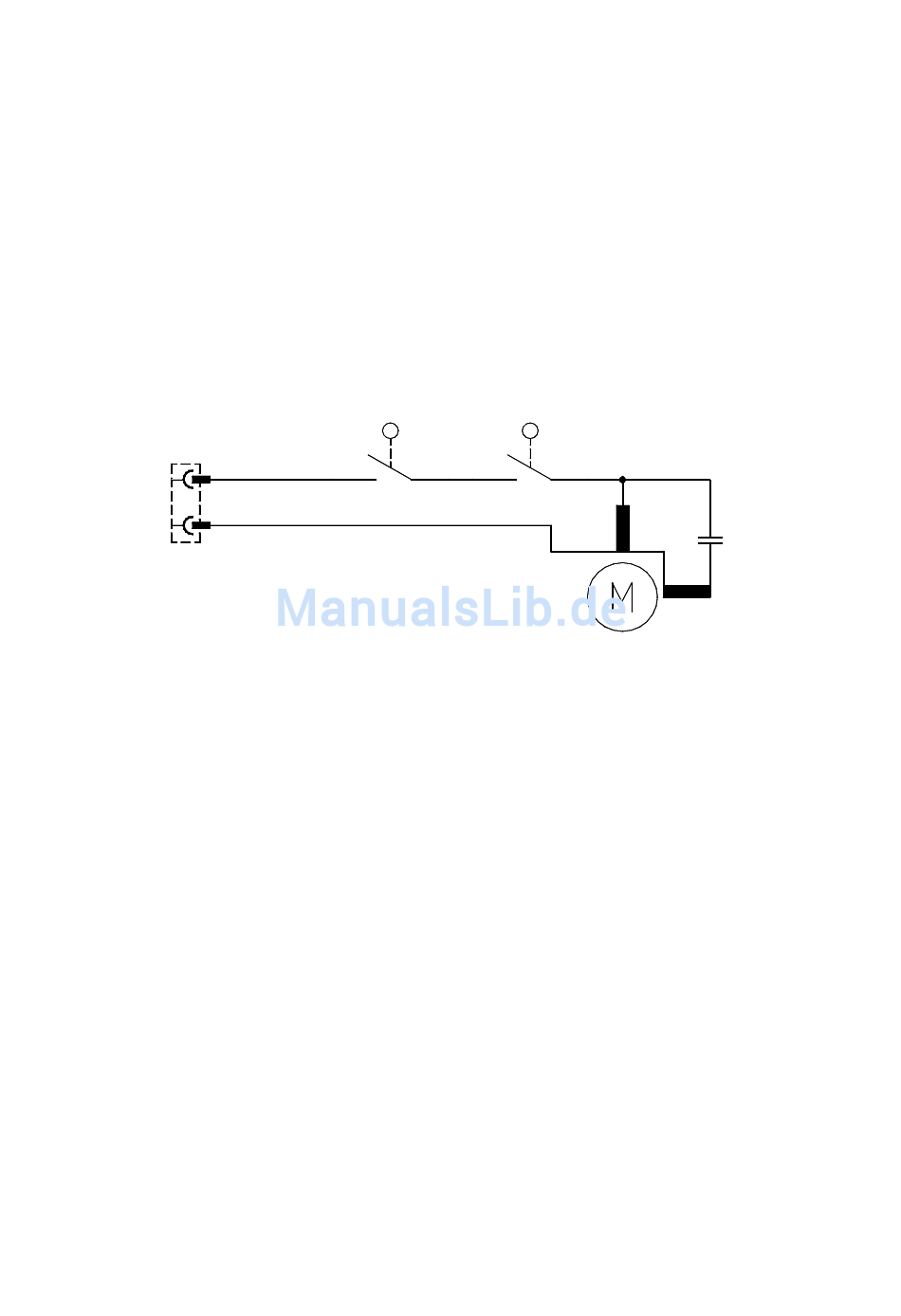

5 Wiring Diagram
~ 230 V / 50 Hz
Legend:
S1 =
S2 =
BA-C103_e / 10.03.2004 / 18.10.2011/ 30.07.2013
operating instructions – WESSAMAT Eismaschinenfabrik GmbH
limit switch, filling lid
limit switch, ice container
S1
S2
M1
C1 = operating capacitor 5µF
M1 = gear motor
C1
page 3
