Installation in solid walls
- Installation of suction socket about
30 cm above floor.

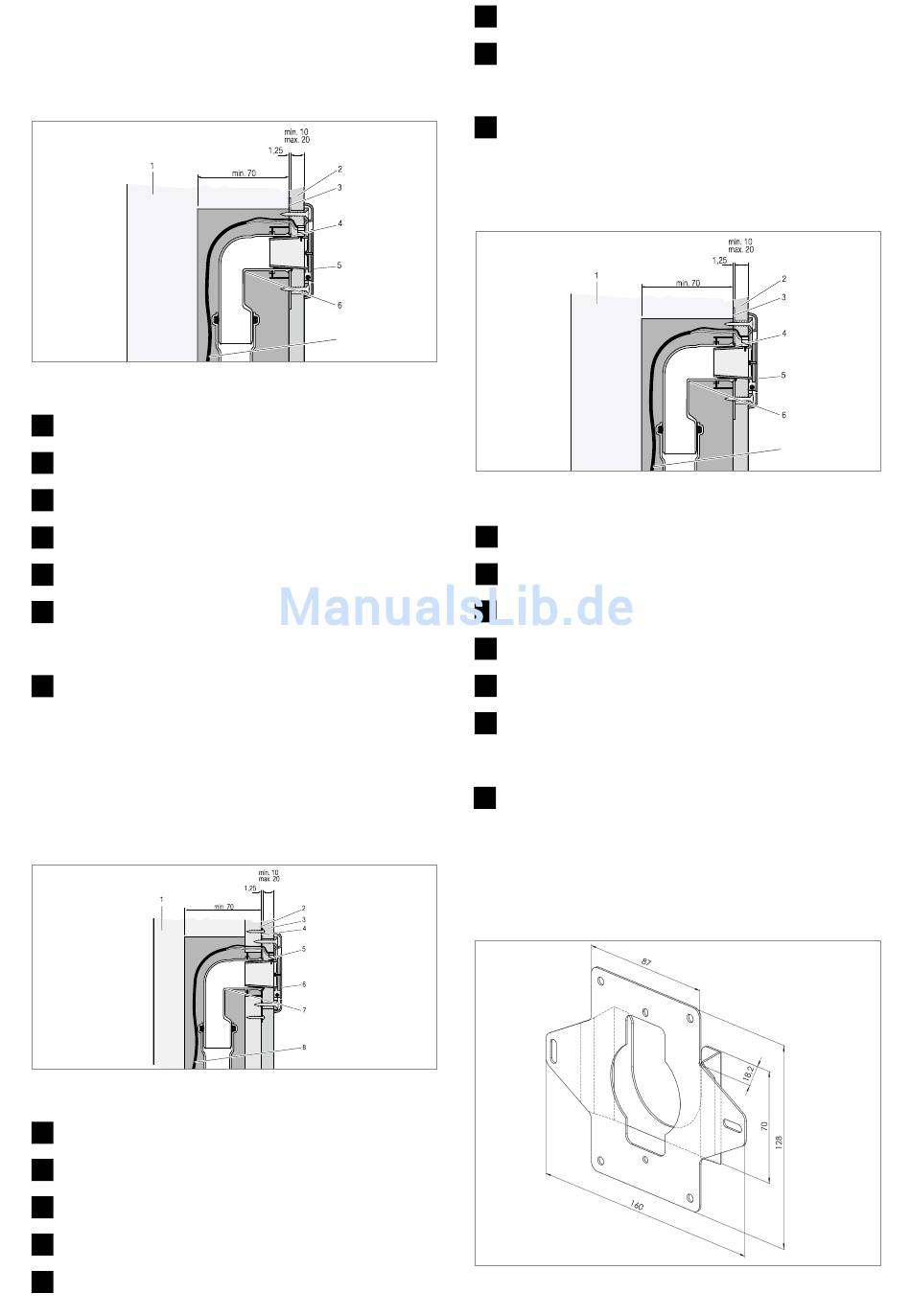

Fig. 13: Installation in solid walls
Solid wall
1
Plaster
2
Mounting frame
3
Sealing ring
4
Suction socket
5
Suction socket reduced connecting
6
bend DN 50/90°
Control cable (24V)
7
Installation in light weight walls
Covering: particle board or plaster board
- Installation of suction socket about
30 cm above floor.
Fig. 14: Installation in light weight walls, Variant 1
Light weight wall
1
Particle board
2
Plaster board
3
Mounting frame
4
Sealing ring
5
Suction socket
6
Suction socket reduced connecting
7
bend DN 50/90°
Control cable (24V)
8
Installation in light weight walls
Covering: particle board or plaster board
7
Fig. 15: Installation in light weight walls, Variant 2
Light weight wall
1
Particle board or plaster board
2
Mounting frame
3
Sealing ring
4
Suction socket
5
Suction socket reduced connecting
6
bend DN 50/90°
Control cable (24V)
7
Mounting frame:
Allow a recess of at least 30 mm (depth) in
the area of the suction socket fixing holes.
Abb. 16: Dimensions for fitting mounting frame
7
