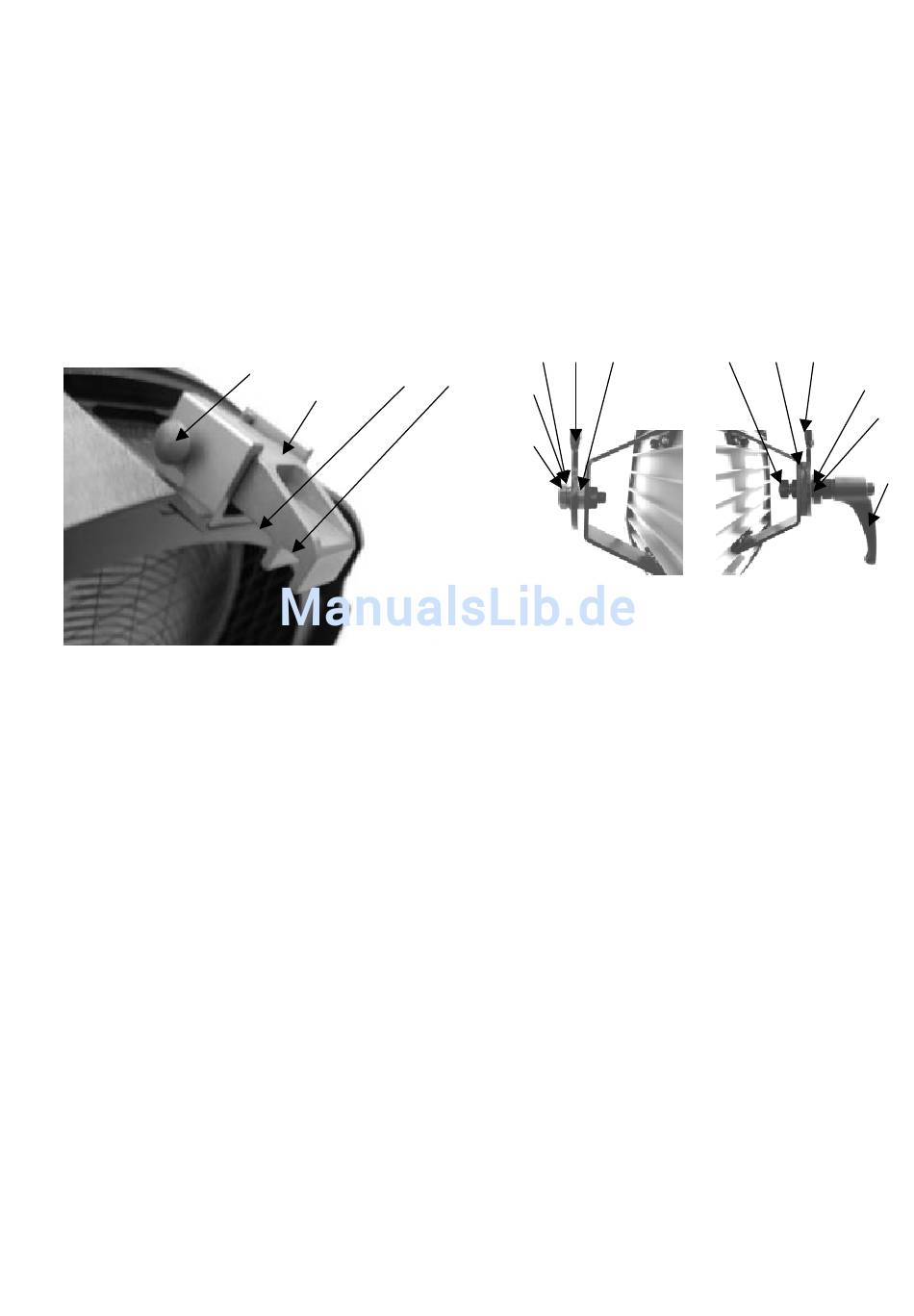

Einsetzen des Zubehörs (Bild 4):
Stift (1a) seitlich eindrücken, Torsicherung (1) klappt
nach oben.
Zubehör, wie z.B. Flügeltor, Tubus, Jalousie in den
vorderen Einschub (1b) der Halteklauen einsetzen.
Der hintere Einschub (1c) der Halteklauen dient zur
Aufnahme von Filtern oder Streulichtrahmen.
Torsicherung ohne Drücken des Stiftes (1a) nach unten
klappen. Die Torsicherung verriegelt sich selbsttätig.
VORSICHT! Den Scheinwerfer nicht bei ge-
schlossenem Tor einsetzen! Gefahr der Überhitzung.
Wartung:
Reflektor und Stufenlinse regelmäßig mit handels-
üblichen Glasreinigern säubern und anschließend mit
einem weichen Tuch nachpolieren.
Achten Sie darauf, daß der Reflektor nicht beschädigt
ist und keine Beulen aufweist.
Halten Sie die Kontaktelemente der elektrischen
Steckverbindungen sowie die Fassungsteile sauber.
Bild 4 / picture 4:
Montage für Haltebügel:
An den Bügelenden befinden sich Bohrungen. Bei der Montage des
Bügels ist darauf zu achten, dass die große Bohrung, von hinten
gesehen links und die kleine Bohrung rechts an der Bügelhalterung
des Scheinwerfers anliegt (s. Bild 4).
Um ein einwandfreies Feststellen des Scheinwerfers zu
gewährleisten, muß die offene Seite der Lagerfassung mit dem
Kugellager am Bügel anliegen.
Bei beidseitiger Bügelklemmung wird Beschreibung der rechten
Seite auch links angewandt.
Technische Änderungen vorbehalten!
ARRI Service Werkstätten / ARRI Service Locations
Germany
Germany
ARNOLD & RICHTER
ARRI Lighting
CINE TECHNIK
Solutions GmbH
GmbH & Co. Betriebs KG
Pulvermühle
Agastr. 24
D-83071 Stephanskirchen D-12489 Berlin
Tel.+49(0)8036-3009-0
Tel.+49(0)30-678233-0 Tel.+1(845)353-1400 Tel.+1(818)841-7070 Tel.+1(416)255-3335 Tel.+44(0)1895-457000 Tel.+39(02)26227175
Fax +49(0)8036-2471
Fax+49(0)30-67823399 Fax+1(845)425-1250 Fax+1(818)848-4028 Fax+1(416)255-3399 Fax+44(0)1895-457001 Fax+39(02)2421692
Internet: WWW.ARRI.COM
1a
1c
1
USA
ARRI Inc
New York Office
617 Route 303,
Blauvelt,
NY 109131123
5 / 5
Installing Accessories (Picture 4):
Push the hinge pin (1a) to the right to open the top latch (1)
Insert the accessories (barndoor, snoot or louvre shutter)
into the front slot (1b) of the accessory bracket.
The rear slot (1c) of the accessory bracket holds filters or
diffuser frames.
Turn down the top latch without pushing the hinge pin (1a).
The top latch will be fixed in locked position automatically.
WARNING! Do not use lamphead with closed barndoors.
Risk of fire or damage of lamphead!
Maintenance:
Please clean the reflector and fresnel lens in appropriate
time intervals with common glass cleaning agent. After
cleaning, polish the surface with a soft cloth.
Please check that the reflector shows no kind of
deformation or damages.
Keep the contact surfaces of the electrical connections and
lamp holder clean.
25
21
1b
26
27
Bild 5 links / picture 5 left
18
Bügelkemmhebel / Stirrup locking lever
19
Lagerfassung / Retaining bush
20
Axial Kugellager / Ball-race
21
Haltebügel / Stirrup
22
Friktionsscheibe / Friction disk
23
Sechskantmutter / Hexagonal nut
24
Distanzstück / Distance bush
25
Scheibe / Washer
26
Federring / Spring washer
27
Sechskantschraube / Hexagon headed bold
Stirrup mounting instruction:
At the end of the stirrup to be attached to the lamphead there are
holes of different sizes. The bigger one, looking from behind the
lamphead should be left, the smaller hole should be on the right
hand side (s. picture 5).
For a proper function, it is important that the open end of the ball-
race inserted into the retaining bush should show to the stirrup.
With the locking handle, the friction now can be adjusted and the
tilting angle of the lamphead can be fixed.
When using the friction on both sides, the right side description will
be used twice.
Design and specifications subject to change without notice!
USA
Canada
ARRI Inc
ARRI Canada LTD.
Burbank Office
600 N. Victory Blvd.
415 Horner Avenue,
Burbank,
Unit 11, Etobicoke,
CA 915021639
Ontario M8W 4W3
23
22
24
Bild 5 rechts / picture 5 right
Great Britain
ARRI (GB) LTD.
2 Highbridge,
Oxford Road
Uxbridge Middlesex
UB8 1LX
21
20
19
18
Italy
ARRI ITALIA SRL
Viale Edison 318
I-20099 Sesto S.G.
Milano
