CORE Combat Kurzanleitung Seite 2

CORE COMBAT &
D C
A
B1
G
F
H
I
Download the detailed user manual from
C D
A
B2
E
F
H
J
ESP BAR SYSTEM
Short manual:
CORE COMBAT and
CORE ESP CONTROL SYSTEM

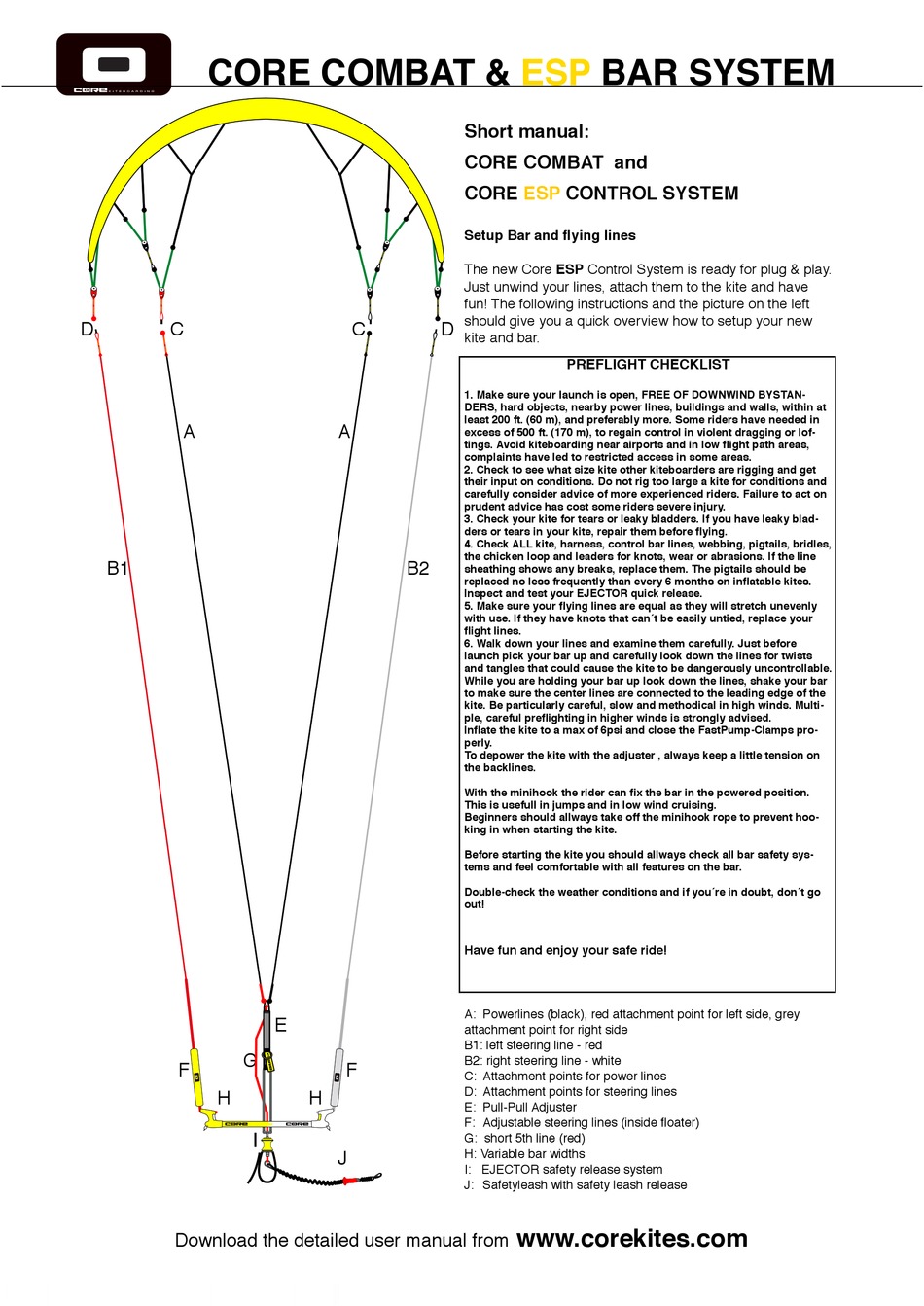

Setup Bar and flying lines
The new Core ESP Control System is ready for plug & play.
Just unwind your lines, attach them to the kite and have
fun! The following instructions and the picture on the left
should give you a quick overview how to setup your new
kite and bar.
PREFLIGHT CHECKLIST
1. Make sure your launch is open, FREE OF DOWNWIND BYSTAN-
DERS, hard objects, nearby power lines, buildings and walls, within at
least 200 ft. (60 m), and preferably more. Some riders have needed in
excess of 500 ft. (170 m), to regain control in violent dragging or lof-
tings. Avoid kiteboarding near airports and in low flight path areas,
complaints have led to restricted access in some areas.
2. Check to see what size kite other kiteboarders are rigging and get
their input on conditions. Do not rig too large a kite for conditions and
carefully consider advice of more experienced riders. Failure to act on
prudent advice has cost some riders severe injury.
3. Check your kite for tears or leaky bladders. If you have leaky blad-
ders or tears in your kite, repair them before flying.
4. Check ALL kite, harness, control bar lines, webbing, pigtails, bridles,
the chicken loop and leaders for knots, wear or abrasions. If the line
sheathing shows any breaks, replace them. The pigtails should be
replaced no less frequently than every 6 months on inflatable kites.
Inspect and test your EJECTOR quick release.
5. Make sure your flying lines are equal as they will stretch unevenly
with use. If they have knots that can´t be easily untied, replace your
flight lines.
6. Walk down your lines and examine them carefully. Just before
launch pick your bar up and carefully look down the lines for twists
and tangles that could cause the kite to be dangerously uncontrollable.
While you are holding your bar up look down the lines, shake your bar
to make sure the center lines are connected to the leading edge of the
kite. Be particularly careful, slow and methodical in high winds. Multi-
ple, careful preflighting in higher winds is strongly advised.
Inflate the kite to a max of 6psi and close the FastPump-Clamps pro-
perly.
To depower the kite with the adjuster , always keep a little tension on
the backlines.
With the minihook the rider can fix the bar in the powered position.
This is usefull in jumps and in low wind cruising.
Beginners should allways take off the minihook rope to prevent hoo-
king in when starting the kite.
Before starting the kite you should allways check all bar safety sys-
tems and feel comfortable with all features on the bar.
Double-check the weather conditions and if you´re in doubt, don´t go
out!
Have fun and enjoy your safe ride!
A:! Powerlines (black), red attachment point for left side, grey
attachment point for right side
B1: left steering line - red
B2: right steering line - white
C: !Attachment points for power lines
D: !Attachment points for steering lines
E: !Pull-Pull Adjuster
F: !Adjustable steering lines (inside floater)
G: short 5th line (red)
H: Variable bar widths
I: EJECTOR safety release system
J: ! Safetyleash with safety leash release
www.corekites.com
