Diese Maschine ist nur für den gewerblichen- und industriellen Gebrauch und nicht für private Nutzung bestimmt. Wet & dry pick-up tub vac IC 225 This machine may only be used for commercial and industrial purposes and is not intended for household use.
Allgemeines Allgemeines Vielen Dank, dass Sie sich für den Trocken Kesselsauger IC 225 oder den Nass- /Trocken Kesselsauger IC 335 entschie- den haben. Sie wurden entwickelt und hergestellt, um Ihnen über viele Jahre einen störungsfreien Betrieb zu leisten. Informationen zur...
2004/108/EG “Elektromagnetische Verträglichkeit” und 2006/95/EG “Niederspannungsrichtlinie”. Das Gerät trägt auf dem Typenschild die CE-Kennzeichnung. Bestimmungsgemässe Der IC 225 ist ausschliesslich zur Trockenreinigung, der IC 335 Verwendung zur Nass- bzw. Trocken-Reinigung von Flächen im Innenbereich von Gebäuden bestimmt. Vor Inbetriebnahme prüfen, ob alle Filter richtig eingesetzt sind.
Sicherheit Sicherheitshinweise WARNUNG! Verletzungsgefahr durch Einsaugen: Niemals Kleidungsstücke, Haare, Augen, Finger oder andere Körperteile einsaugen. Düsen und Rohr-Enden dürfen niemals in die Nähe von Augen und Ohren gelangen. Menschen oder Tiere dürfen mit dem Gerät nicht abgesaugt werden.
Sicherheit Elektrischer Strom ACHTUNG! Eine falsche Spannung kann das Gerät zerstören. Betreiben Sie das Gerät nur, wenn die auf dem Typenschild angegebe- ne Spannung mit der Spannung in Ihrem Haushalt überein- stimmt. Die Steckdose muss über einen 16 A-Sicherungsautomaten abgesichert sein.
Service-Hotline 01805 325474 14 Cent / Minute aus dem Festnetz der deutschen Telekom Fakir und nilco halten für Sie ein dichtes Netz an Ansprech- partnern bereit. Diese finden Sie stets aktuell im Internet unter: www.fakir.de/Vertragswerkstätten oder www.nilco.de/service Hier finden Sie auch Kontaktformulare sowie Beauftragungs- formulare und Konditionen-Übersichten bei Servicebedarf.
Gerätebeschreibung Technische Daten Spannung 220-240 Volt, 50/60 Hz IC 335 Leistung 1600 W Stromaufnahme 7,2 A Max. Luftfördermenge 32,0 l/s Unterdruck 25,5 kPa Geräuschpegel 74 dB(A) Behältervolumen, gesamt 30 l Nutzinhalt Feststoffe 12 l Nutzinhalt Flüssigkeiten 16 l Geräte-Länge 42,5 cm Geräte-Breite 42,5 cm Geräte-Höhe...
Vor Inbetriebnahme Vor Inbetriebnahme Montage WARNUNG! Prüfen Sie vor der Montage, ob der Netzstecker gezogen ist. Bei eingestecktem Netzstecker könnte das Gerät versehentlich einge- schaltet werden und Verletzungen verursachen. ACHTUNG! Prüfen Sie vor Inbetriebnahme, ob alle Filter richtig eingesetzt sind. Das Gerät darf nicht ohne Filter benutzt werden. ...
Allgemeine Anwenderhinweise Allgemeine Anwenderhinweise Saugzubehör Das Gerät ist serienmäßig mit einem Saugzubehörsystem (teilweise Sonderzubehör) (Rohrdurchmesser 35 mm) ausgestattet. Mit diesem Sys- tem lassen sich alle üblichen Saugarbeiten erledigen. Alle Düsen können wahlweise direkt am Schlauchgriff oder am Saugrohr befestigt werden. Staubbeutel Dieser Filter dient zur Aufnahme von trockenem Haus- schmutz.
Bedienung Bedienung Allgemein-Saugen WARNUNG! Prüfen Sie das Gerät und das Stromkabel vor jeder Benutzung. Ein beschädigtes Gerät birgt Verletzungsrisiken und darf nicht verwendet werden. ACHTUNG! Achten Sie vor der Benutzung darauf, dass alle der Anwen- dung entsprechenden Filter richtig eingesetzt und nicht be- schädigt sind.
Bedienung Beide Behälterklammern an der Unterseite nach außen drü- Nass-Saugen (Nur IC 335) cken und Motorkopf am Tragegriff vom Behälter abnehmen und beiseite stellen. Textil Feinstaubfilter entnehmen Abb. ähnlich Staubbeutel entnehmen und Sitz der Motorschutzfiter/ Schaumstoffmanschette prüfen. ...
Teile nicht mit Wasser in Berührung kommen. Die Filter müssen regelmäßig bzw. nach starker Verschmut- Filter zung gereinigt oder gewechselt werden, damit stets die beste Saugwirkung des Geräts erzielt wird. HINWEIS! Verwenden Sie nur Original-Fakir / nilco-Filter, damit Ihr Gerät die gewünschte Funktion behält.
Nach dem Gebrauch Schutzgitter-Patrone ACHTUNG! (Nur für IC 335) Sollte die Saugkraft spürbar nachlassen, muss die Schutzgitter- Patrone gereinigt, evtl. bei Bedarf ersetzt werden. Behälterklammern öffnen und das Motorgehäuse vom Behäl- ter abnehmen. Filterdeckel durch drehen des Sterngriffes lösen. ...
Nach dem Gebrauch Faltenfilter* (Nur für IC 335 ACHTUNG! =Sonderzubehör) Sollte die Saugkraft spürbar nachlassen, muss der Faltenfilter gereinigt, evtl. bei Bedarf ersetzt werden. Behälterklammern öffnen und das Motorgehäuse vom Behäl- ter abnehmen. Filterdeckel durch drehen des Sterngriffes lösen. ...
Nach dem Gebrauch Reinigen WARNUNG! Schalten Sie das Gerät aus und ziehen Sie den Netzstecker, bevor Sie mit Reinigung und Pflege beginnen. So verhindern Sie, dass das Gerät versehentlich eingeschaltet wird. ACHTUNG! Verwenden Sie keine Reinigungs- und Scheuermittel oder Alkohol. Diese würden das Gehäuse beschädigen Reinigen Sie den Motorkopf des Gerätes nur trocken oder mit ei- nem feuchten Tuch.
Wenn Sie mal nicht weiterkommen… Wenn Sie mal nicht weiterkommen… Sehr geehrte Kundin, sehr geehrter Kunde, unsere Produkte unterliegen einer strengen Qualitätskontrolle. Sollte dieses Gerät trotzdem nicht einwandfrei funktionieren, bedauern wir dies sehr. Bevor Sie sich an unseren Kundendienst wenden, prüfen Sie, ob Sie den Fehler selbst beseitigen können.
Seite 21
Wenn Sie mal nicht weiterkommen… WARNUNG! Reparaturen und Wartungen dürfen nur von Fachkräften (z.B. Fakir-Kundendienst bzw. nilco-Serviceorganisation) durchgeführt werden. Dabei dürfen nur Original-Fakir / nilco- Ersatzteile eingesetzt werden. Nicht fachgerecht reparierte und gewartete Geräte stellen eine Gefahr für den Benutzer dar.
Seite 25
Operating Instructions IC 335 IC 225 Wet & dry pick-up tub vac This machine may only be used for commercial and industrial purposes and is not intended for household use. Dry pick-up tub vac WARNING! This machine may only be used for commercial and industrial Original operating instructions! purposes and is not intended for household use.
Seite 26
In case of danger ......................28 In case of defects ......................29 Dispatch ......................... 29 Product description ..................... 30 Basic equipment IC 225 ....................30 Technical data IC 225 ....................31 Basic equipment IC 335 ....................32 Technical data IC 335 ....................33 Unpacking ........................
General General Congratulations on your purchase of the dry pick-up tub vac IC 225 or the wet and dry pick-up tub vac IC 335. It was de- signed and constructed for many years of trouble-free operation. Information about the These operating instructions are intended to enable the safe and operating instructions proper handling and operation of the appliance.
The appliance bears the CE mark on the rating plate. Intended use The IC 225 is only for dry cleaning, the wet & dry vacuum cleaner IC 335 may only be used for wet & dry cleaning of sur- faces inside of buildings.
Safety Safety instructions WARNING! Danger of injury from vacuuming: Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body. Nozzles and tube ends must never be brought close to the eyes or ears. Never use the appliance to vacuum human beings or animals. The manufacturer is not responsible for any damages caused by unauthorized use or improper operation.
Safety Electric current ATTENTION! Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household. The socket must be protected with a 16 A automatic circuit breaker.
This information can be found on the rating plate of the ap- pliance. WARNING! Repairs and maintenance may be performed only by trained tech- nicians (e.g. nilco / Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

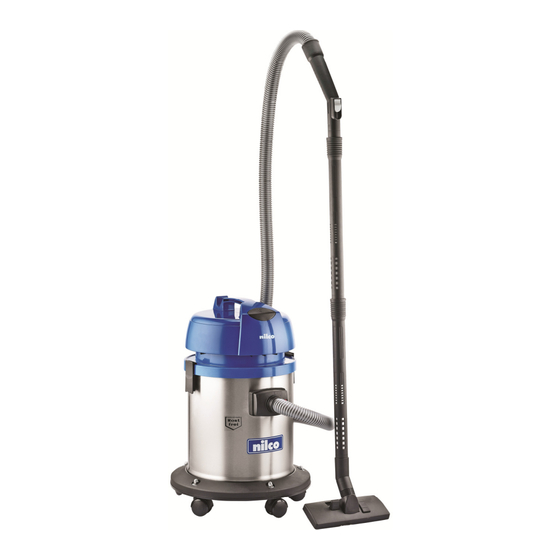

Product description Product description Basic equipment Dry pick-up tub vac IC 225 IC 225 Suction hose cpl. Suction socket Cable hook Trolley On / off switch Handle Motor head Suction regulator Motor housing Upholstery nozzle Motor protection filter Furniture brush...
Product description Technical data Voltage 220-240 Volt / 50/60 Hz IC 225 Nominal power 1000 W Current 4,7 A Air flow max. 32,0 l/s Vacuum 19,0 kPA Noise level 74 dB(A) Total canister capacity 19 l Effective canister capacity – solids 11 l Effective canister capacity –...
Product description Technical data Voltage 220-240 Volt / 50/60 Hz IC 335 Power input 1600 W Current 7,2 A Air flow max. 32,0 l/s Vacuum 25,5 kPA Noise level 74 dB(A) Total canister capacity 30 l Effective canister capacity – solids 12 l Effective canister capacity –...
Before use Before use Assembly WARNING! Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries. ATTENTION! Check if all filters have been inserted properly before using the appliance.
General directions for use General directions for use Suction accessories The appliance is provided with a 35 mm diameter system for acces- (partly optional) sories as standard. All the usual domestic vacuum cleaning tasks can be undertaken with this system. All the nozzles can be attached directly to the handle or to the suction tube, as required.
Operating Operating Vacuum cleaning WARNING! Always check the appliance and the power cable before use. Faulty appliances may cause injury and should not be used. ATTENTION! Check if all filters have been and the dust bag are inserted prop- erly resp. are damaged before using the appliance. Dry vacuum cleaning Having selected and installed the desired accessory, check to ensure that the interior of the appliance and the accessories are...
Operating Release both canister clips and remove motor head from the Wet vacuum cleaning (only IC 335) canister by means of the carrying handle and set on side. Take off the textile filter. Remove dust bag and check whether the motor protection filter / foam filter is inserted correctly.
Filters must be cleaned or replaced at certain intervals in order to obtain the utmost cleaning efficiency from the appliance. NOTICE! Use only original Fakir / nilco filters. Only in this way can the excellent filter effect of the cleaner be retained.
After use Protective grid (only IC 335) ATTENTION! When the suction power diminishes to a noticeable extent the protective grid must be cleaned or, if necessary, replaced. Release both canister clips and remove motor head from the canister. Remove the filter cover by turning the star grip. ...
After use Cartridge filter * (only IC 335 ATTENTION! *optional accessory) When the suction power diminishes to a noticeable extent the cartridge filter must be cleaned or, if necessary, replaced. Release both canister clips and remove motor head from the canister.
After use Cleaning WARNING! Before conducting any maintenance or cleaning, switch off and unplug the appliance. If the mains plug is plugged in, the appli- ance could accidentally be switched on, resulting in injuries. ATTENTION! Do not use any cleaning agents, abrasives or alcohol. These damage the housing.
After use Dear customer, Troubleshooting Our products undergo stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our service department, check to see if you can eliminate the problem yourself. WARNING! Switch off and unplug the appliance before beginning trouble- shooting.
Seite 45
After use WARNING! Repairs and maintenance may be performed only by trained techni- cians (e.g. nilco / Fakir customer service). Only original Fakir replace- ment parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.
The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty. Valid from 1st June 2014 Fakir-Hausgeräte GmbH 71665 Vaihingen/Enz, Industriestraße 6 71657 Vaihingen/Enz, Postfach 1480 Telefon +49 (0)7042 912-0 Fax +49 (0) 7042 912-360 Internet: http:// – http://www.nilco.de - E-Mail: info@fakir.de – verkauf@fakir.de www.fakir.de...
