Exsys EX-1093 Bedienungsanleitung

EX- EX EX - - 1093 1093 1093

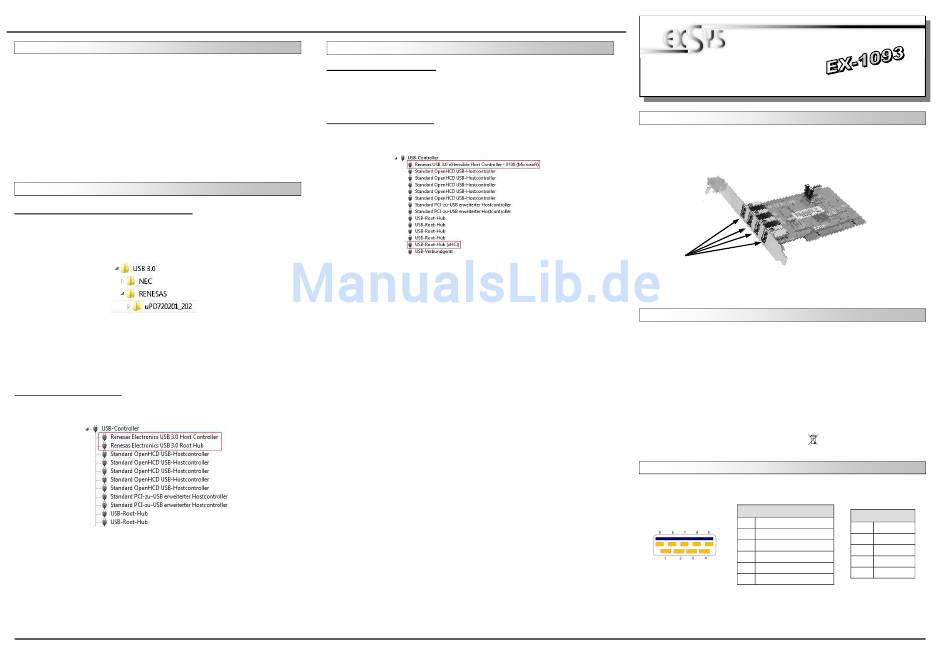

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences
between PC's, we can give you only a general installation guide for the EX-1093. Please
refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available PCI expansion slot and insert the card. Make sure that the card is
plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003 & 2008
After starting, Windows is recognizes a new "USB (Universal Serial Bus)-Controller".
Start the „SETUP" file which is in the "uPD720201_202" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating
system. After the installation the operating system detects the card and automatically
install them.
CHECK INSTALLED DRIVER:
Open the >Device manager<. Now you should see at „USB-Controller" the following
new entry's:
If you see this or a similar information the device is installed correctly.
5
EX 1093
EX- EX - - 1093 1093
English English English
DRIVER INSTALLATION
Windows 8 & Server 2012
After the hardware installation, the operating system will recognize the device automati-
cally and install the drivers.
CHECK INSTALLED DRIVER:
Open the >Device manager<. Now you should see at „USB-Controller" the following
new entry's:
If you see this or a similar information the device is installed correctly.
English
English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.1 / 05.08.13
AUFBAU
J1-J4:
4 x externe
USB 3.0 A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN

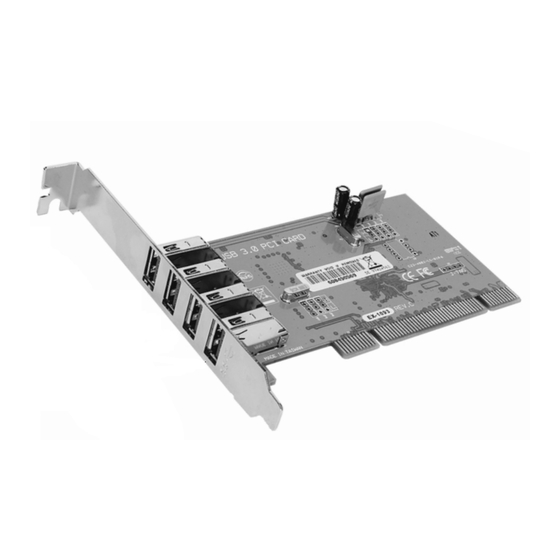

Die EX-1093 ist eine USB 3.0 PCI Karte. Die Karte ist mit 4 externen Ports ausgestattet,
die jeweils 900mA Strom zu Verfügung stellen. Sie unterstützt den 32-Bit PCI & PCI-X
Bus mit 5 Volt und 3,3 Volt. Der serielle PCI Bus unterstützt optimal die Leistung des
schnellen Renesas Chipsatz. Die EX-1093 gewährleistet so eine sichere Datenübertra-
gung und exzellente Performance von bis zu 5Gbit pro Sekunde! Es ist nicht möglich die
I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte vom
System (BIOS) und beim installieren des Betriebssystems automatisch vorgenommen
werden. Sie unterstützt alle USB Anschlüsse von 1.1 bis 3.0.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
J1-J4:
6
PCI 32-Bit oder PCI-X, 33Mhz
Windows XP/ Vista/ 7/ 8/ Server 2003 & 2008 & 2012
4x USB 3.0 A-Buchse extern
EX-1093, Treiber CD, Anleitung, LowProfile Bügel
CE / FCC / RoHS / WEEE DE97424562 / WHQL
USB 3.0 Pin's
USB 2.0 Pin's
Pin Signal
Pin Signal
5 SSTX+
1 VCC
6 SSTX-
2 DATA-
7 GND
3 DATA+
8 SSRX+
4 GND
9 SSRX-
1
