10. Technische Daten
Eingangsgrößen
Eingangswechselspannung
85 - 270V (0 - 66Hz)
AC
Eingangsgleichspannung
120 - 400V
DC
Stromaufnahme bei Nennlast
bei 115V
max. 5,0A /bei 230V
max. 2,5A
AC
AC
Einschaltstromstoß
<10,0 A bei 270V
AC
Schutzbeschaltung
Transientenüberspannungsschutz-Varistor
Ausgangsgrößen
Ausgangsspannung U
siehe Tabelle unten
Nenn
Einstellbereich
siehe Tabelle unten
Ausgangsstrom I
siehe Tabelle unten
Nenn
einstellbar 0,5 ... 1,5 x I
Strombegrenzung
Nenn
Leistung
siehe Tabelle unten
Restwelligkeit (20MHz Bandbreite)
<50mV
SS
Betriebsdaten
Einschaltdauer (ED)
100% (Dauerbetrieb)
Wirkungsgrad
siehe Tabelle unten
Parallelschaltbar
Ja
Arbeitstemperaturbereich
-40°C bis +70°C
Lagertemperaturbereich
-40°C bis +105°C
Leistungsabweichung bei Temperatur
ab 40°C
Kühlung
natürliche Konvektion
Aufstellungshöhe
unbegrenzt
MTBF
> 380.000h
Schutzeinrichtungen
Vorsicherung
bei 115 V
10A träge / bei 230 V
AC
AC
Ausgangssicherung
nicht erforderlich, da kurzschlussfest
Überlastschutz
im Gerät integriert
Sicherheitsdaten
Prüfspannung Trafo
5kV gemäß VDE0570
AC
Hochspannungsfestigkeit
Eingang/Ausgang 4,4kV nach VDE0806/IEC380
AC
Funkentstörgrad
gemäß VDE0871B, EN55022/B
Schutzklasse
Schutzklasse I mit PE-Anschluss (EN60950)
Schutzkleinspannung
PELV (EN60204), SELV (EN60950)
Umgebungsfeuchte
95% relative Feuchte im Jahresdurchschnitt
Betauung möglich - tropentauglich
Schutzart Gehäuse
IP65
Schutzart Klemmen
IP20 (BGV A3)
Rüttelfestigkeit
>100g bei 33Hz in X, Y und Z
nach IEC68 und DIN41640
Angewandte Bauvorschriften
gemäß VDE
VDE0100, VDE0110, VDE0113, VDE0551,
VDE0806
IEC
IEC60950-1, IEC61000-6-1,2,3,4, IEC60068-2-3,
IEC60068-2-11-52, IEC60529
EN
EN60950-1, EN61140, EN61000-6-1, EN61000-6-2,
EN61000-6-3, EN61000-6-4, EN55022, EN55011
EN61000-3-2, EN61000-3-3, EN60204
EN60529, EN61000-4-2-3-4-5-6-8-11, EN60068-1,
EN6068-2-1, EN61558-2-17
CSA/UL
CSA-C 22.2 / Ul60950, Ul508, UL1950
Verbraucher (z.B. Schütze, Motoren, Magnetventile, etc.)
die nicht ordnungsgemäß nach den relevanten
Richtlinien entstört sind (z.B. Varistoren, RC-Glieder,
etc), können zur Störung bzw. Zerstörung des
Netzgerätes führen.
Typ
SNT12612
Einstellbereich der
Ausgangsspannung
10,0 - 15,5VDC
Range of adjustment
output voltage
Ausgangsstrom I
Nenn
35,0A
Output current I
Nominal
Ausgangsleistung
Nenn/Boost
420 / 630 Watt
Output-power
Nom./Boost
Wirkungsgrad
91%
Efficiency
Vorsicherung
bei 115VAC 10,0Amp. träge / bei 230VAC 5,0Amp. träge
Fuse for input
at 115VAC 10,0Amp. delayed / at 230VAC 5,0Amp. delayed
Maße
BxHxT
Dimensions
BxHxD
Gewicht
ca. 7,00kg
Weight
10. Technical Data
Input data
AC input voltage
85 - 270V (0 - 66Hz)
AC
DC input voltage
120 - 400V
Input current at nominal load
at 115V
max. 5.0A / at 230V
AC
Input current peak
< 10.0 A at 270V
Protective circuit
Transient voltage suppressor Varistor
Output data
Output voltage U
see table below
Nominal
Range of adjustment
see table below
Output current I
see table below
Nominal
Current limiting/Fuse Mode
adjustable 0.5 ... 1.5 x I
Power
see table below
Residual ripple (20MHz Bandwidth)
<50mV
PP
Operating data
Duty circle
100%
Efficiency
see table below
Parallel connection
Yes
Operating temperature range
-40°C to +70°C
Storage temperature range
-40°C to +105°C
Derating
from 40°C
Cooling
selfcooling
Installation altitude
unlimited
MTBF
> 380.000h
Safety devices
5A träge
Fuse for input
at 115 V
AC
Fuse for output
not necessary - short circuit proof
Overload protection
integrated into device
Safety data
5kV according to VDE0570
Test voltage transformer
AC
Input/Output 4,4kV according to VDE0806/IEC380
High voltage resistance
Degree of EMI suppresion
according to VDE0871B, EN55022/B
Protection class
Protection class I with PE-Connection (EN60950)
Extra low safety potential
PELV (EN60204), SELV (EN60950)
Ambient humidity
95% relative humidity, yearly average
dewing allowed for use in tropical ambient
Protective class enclosure
IP65
Protective class terminals
IP20 (BGV A3)
Vibration proof
>100g at 33Hz in X, Y and Z
acc. IEC68 and DIN41640
Applied construction regulations
according to VDE
VDE0100, VDE0110, VDE0113, VDE0551,
VDE0806
IEC
IEC60950-1, IEC61000-6-1,2,3,4, IEC60068-2-3,
IEC60068-2-11-52, IEC60529
EN
EN60950-1, EN61140, EN61000-6-1, EN61000-6-2,
EN61000-6-3, EN61000-6-4, EN55022, EN55011
EN61000-3-2, EN61000-3-3, EN60204
EN60529, EN61000-4-2-3-4-5-6-8-11, EN60068-1,
EN6068-2-1, EN61558-2-17
CSA/UL
CSA-C 22.2 / Ul60950, Ul508, UL1950
Consumers (e.g. contactors, motors, solenoid valves
etc.) which have not been correctly interference-
suppressed in accordance to the relevant guidelines
(e.g. varistors, RC elements, etc.) may cause power
supply regulation to malfunction.
SNT12624
23,0 - 30,0VDC
48,0 - 60,0VDC
20,0A
480 / 720 Watt
480 / 720 Watt
93%
114mm x 196mm x 167,5mm
ca. 7,00kg
Betriebsanleitung
Bitte sorgfältig beachten!
DC
max. 2.5A
AC
AC
Nominal
10A delayed / at 230 V
5A delayed
AC
AC
SNT12648
Für die Modelle:
10,0A
93%
ca. 7,00kg
©2012
SNT126
SNT12612, SNT12624, SNT12648
®
Postfach 1521
GmbH
D - 22905 AHRENSBURG
Operating
instructions
Please observe carefully!
- konform
to apply for:
Telefon: 04102 - 42082
Telefax: 04102 - 40930
www.feas.de
Stand: 16.07.2012
loading

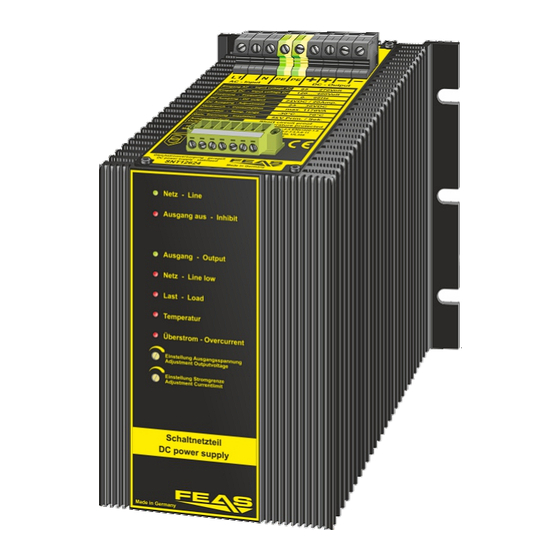

Inhaltszusammenfassung für Feas SNT12612

  • Seite 1 Für die Modelle: to apply for: Ausgangsstrom I Nenn 35,0A 20,0A 10,0A Output current I Nominal SNT12612, SNT12624, SNT12648 Ausgangsleistung Nenn/Boost 420 / 630 Watt 480 / 720 Watt 480 / 720 Watt Output-power Nom./Boost Wirkungsgrad Efficiency ®...
  • Seite 2 Ausgang - Output ΔU >±10% ΔU <±2% ±2%< ΔU <±10% optional Eingangsspannung niedrig Netz OK e.g. FEAS NFK Netz -Line low Input OK Input low > I < I < I < I yellow Boost Last - Load Nenn...
  • Seite 3 5. Fehlermeldungen und Reset des Gerätes 5. Error messages and reset of the unit Gerätetemperatur (max. 85°C) Operating temperature (max. 85 ° C)   lang anhaltende Überlast Longterm overload   Fusemode (je nach eingestellten Wert) Fusemode (depending on the value set) ...
  • Seite 4 6. Meldekontakte und Kontaktbelegung 6. Signal contacts and pin assignment Das Überwachungsmanagement des SNT126 erlaubt eine Vielzahl an Einstellmöglichkeiten am Gerät und kann über zwei The monitoring management of the SNT126 allows a variety of settings on the device. It can be remotely monitored via two built- integrierte Relais-Kontakte fernüberwacht werden.
  • Seite 5 Excel-Sheet, aus den Details des Netzteiles, auf www.feas.de herunter. Widerstand. Zeit / Time (min.) Please down load the Excel-Sheet from the details of the power supply, on www.feas.de, to get Examples for the output voltage controlled by a the exactly control voltage or control resistor.
  • Seite 6 RZM122-80M Redundanzmodul Art.Nr.: 52007 Improve your system security by (n +1) or (1 +1) Principle Erhöhen Sie Ihre Anlagensicherheit nach (n+1) oder    Status indication by LED (1+1) Prinzip  Message relay for power failure and overheating LED Statusanzeige ...
