Fig 2

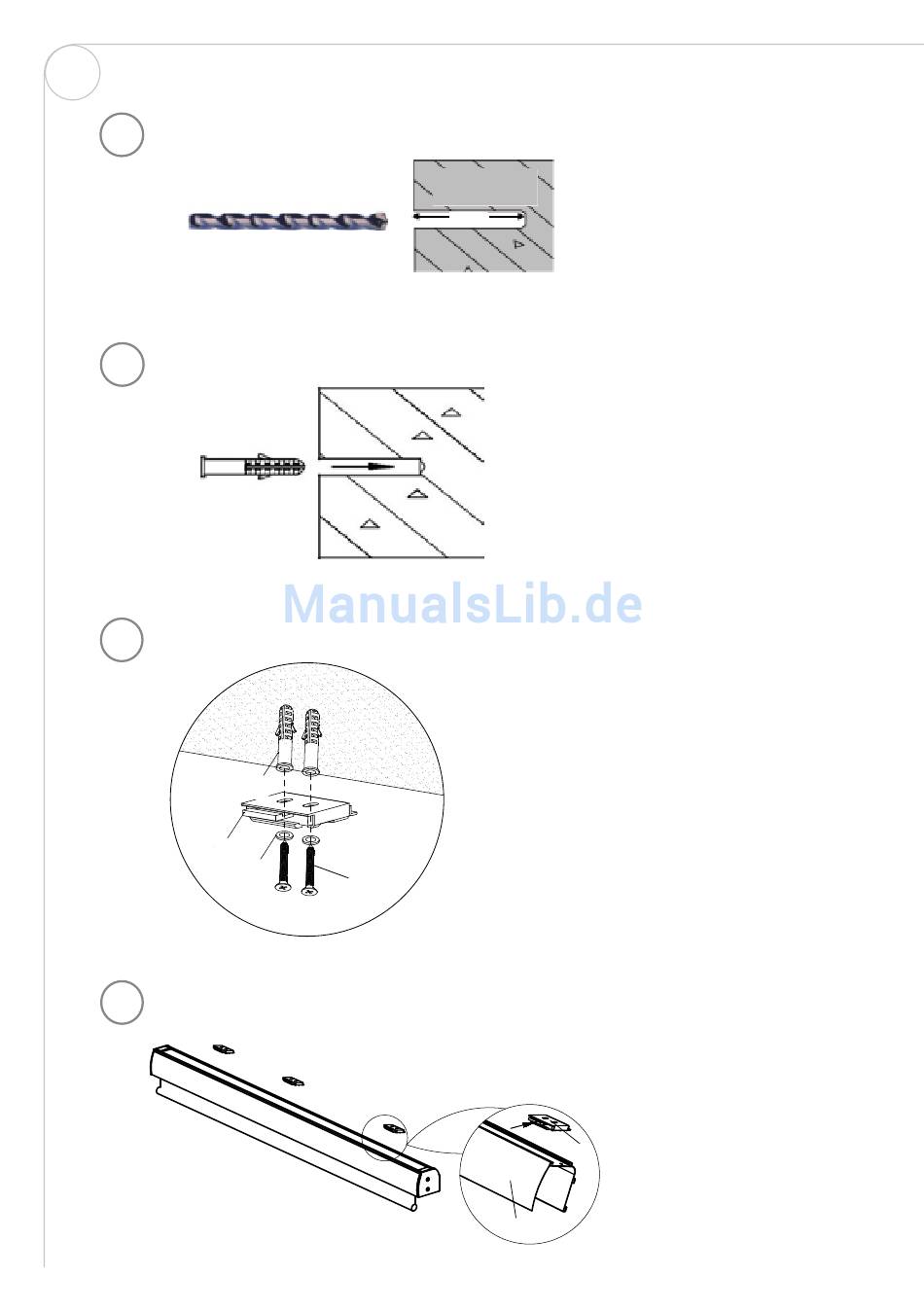

Drill three 5cm deep holes in the size as the following picture shows. Ref. Fig. 3.
Step 3:
ENG
Drill three 5cm deep holes in the size as the following picture shows. Ref. Fig. 3.
Drill three 5cm deep holes in the size as the following picture shows.
3
Fig. 3 8mm masonry drill / Cross section of wall/ceiling
8mm masonry drill.
Step 4:
Fig. 3 8mm masonry drill / Cross section of wall/ceiling
Insert one 8x45mm plastic expansion tube in each of holes. Ref. Fig. 4.
Insert one 8x45mm plastic expansion tube in each of holes.
4
Step 4:
Insert one 8x45mm plastic expansion tube in each of holes. Ref. Fig. 4.
Fix the bracket with ST4.8x50 cross tapping screws and washers.
5
B
Insert drop screen awning into bracket.
6
Make sure the awning is locked into bracket.
6
D
E
C
Cross section of wall/ceiling
5 cm
Fig. 4
Fig. 4
B
A
