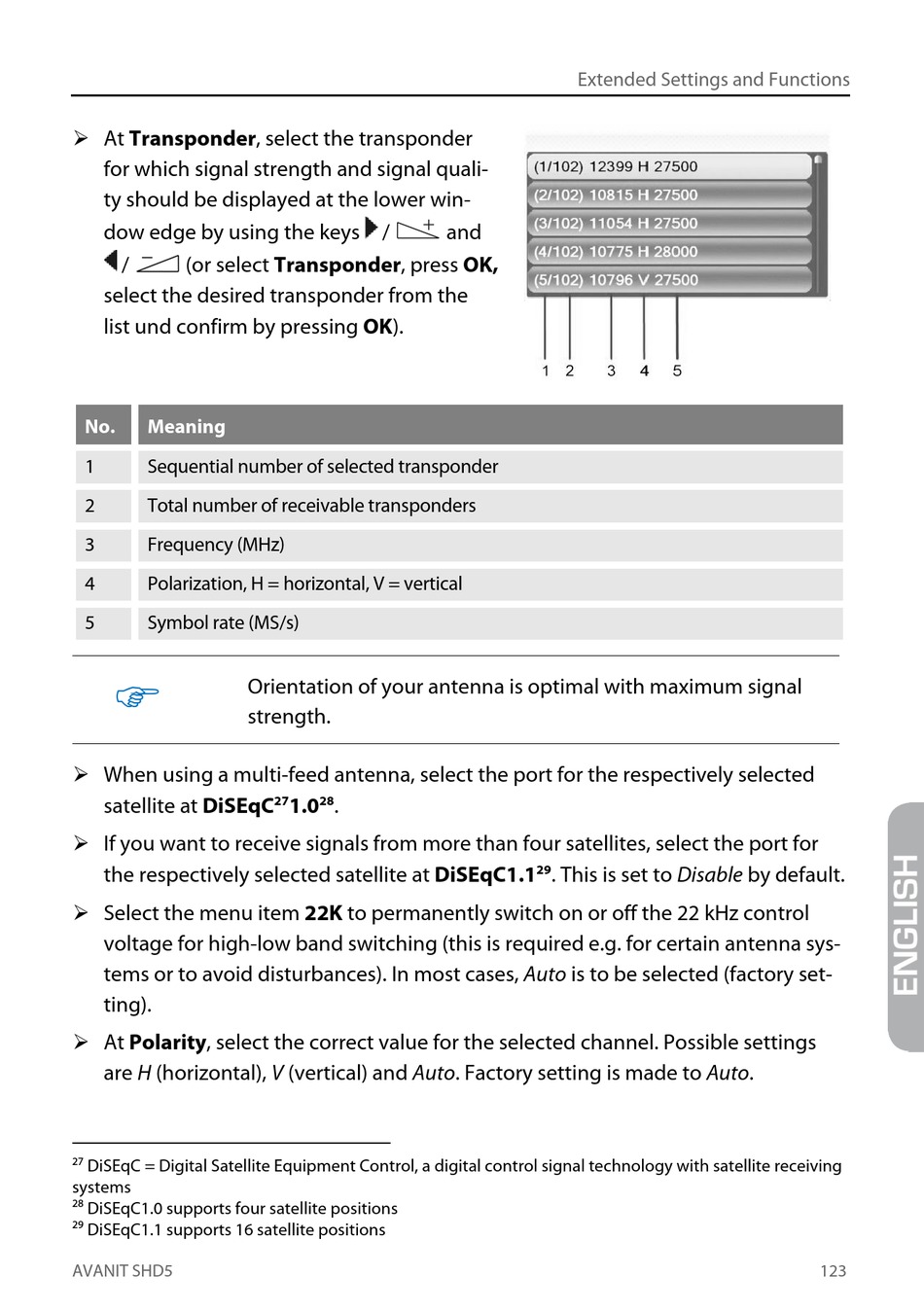

 At Transponder, select the transponder
for which signal strength and signal quali-
ty should be displayed at the lower win-
dow edge by using the keys /
(or select Transponder, press OK,
/
select the desired transponder from the
list und confirm by pressing OK).
No. Meaning
1 Sequential number of selected transponder
2 Total number of receivable transponders
3 Frequency (MHz)
4 Polarization, H = horizontal, V = vertical
5 Symbol rate (MS/s)

Orientation of your antenna is optimal with maximum signal
strength.
 When using a multi-feed antenna, select the port for the respectively selected
satellite at DiSEqC
 If you want to receive signals from more than four satellites, select the port for
the respectively selected satellite at DiSEqC1.1
 Select the menu item 22K to permanently switch on or off the 22 kHz control
voltage for high-low band switching (this is required e.g. for certain antenna sys-
tems or to avoid disturbances). In most cases, Auto is to be selected (factory set-
ting).
 At Polarity, select the correct value for the selected channel. Possible settings
are H (horizontal), V (vertical) and Auto. Factory setting is made to Auto.
27 DiSEqC = Digital Satellite Equipment Control, a digital control signal technology with satellite receiving
systems
28 DiSEqC1.0 supports four satellite positions
29 DiSEqC1.1 supports 16 satellite positions
AVANIT SHD5
and
1.0
27 28 .
Extended Settings and Functions
29 . This is set to Disable by default.
