Connecting The Speakers
1. Match each speaker cable bundle to the correct speaker by matching the colour
coded plug on each bundle to the coloured sticker on the bottom of each speaker.
2. To attach speaker wire to each speaker:
a. Press down the red tab on the back of the speaker, insert the red wire, and then
release the tab.
b. Press down the black tab on the back of the speaker, insert the black wire, and
then release the tab.
3. Connect the speaker wire plugs from each speaker to the back of the product by
matching the colours of the speaker plugs to the colours of the speaker jacks.

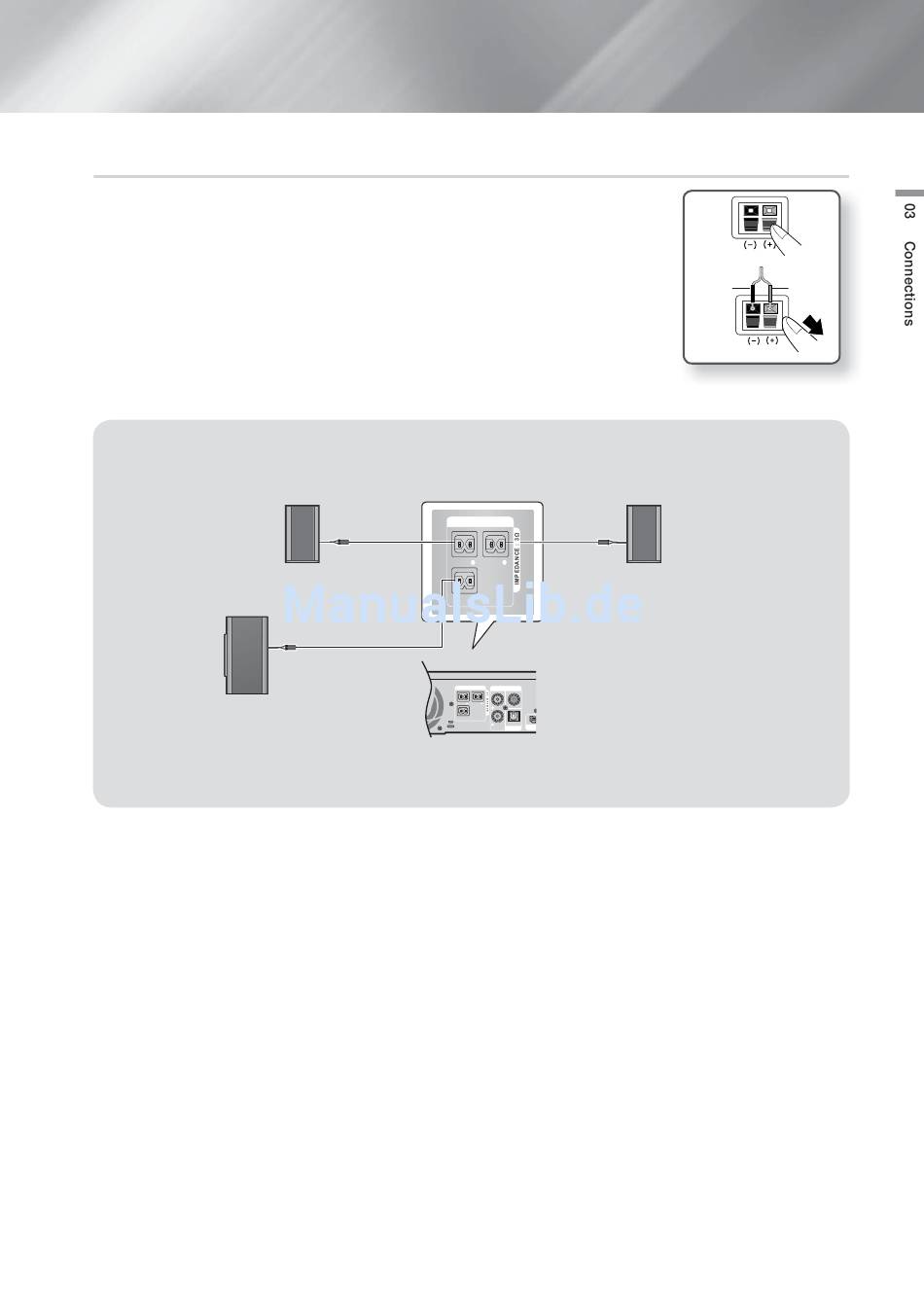

* In case of HT-F5200
Front Speaker (R)
Subwoofer
| CAUTION |
\
If you want to install the product on the wall, fasten the screws or nails on the wall firmly and use the holes on the
rear of speaker to install. However, when you install it, accessories (nails or screws) and installation is not provided by
the company.
\
Do not let children play with or near the speakers. They could get hurt if a speaker falls.
\
When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.
\
Keep the subwoofer speaker out of reach of children to prevent children from inserting their hands or alien
substances into the duct (hole) of the subwoofer speaker.
\
Do not hang the subwoofer on the wall using the duct (hole).
| NOTES |
\
If you place a speaker near your TV set, the screen colour may be distorted because of the magnetic field.
\
If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment or any other device that uses
the 2.4/5.8GHz frequencies near the product, sound from the speakers may be disrupted because of interference.
SPEAKERS OUT
FRONT FRONT
L
R
SUBWOOFER
SPEAKERS OUT AUX IN FM ANT
FRONT R FRONT L
L
SUBWOOFER
OPTICAL
R
DIGITAL HDM
AUDIO IN
Black Red
Front Speaker (L)
