Operating instructions
LED outdoor floor lamp Torrent, 44 cm, 10.5 W
Item no. 1218438
LED outdoor floor lamp Torrent, 76 cm, 10.5 W
Item no. 1218440
Intended use
The product is designed for use as a light indoors and outdoors. The LED floor lamp is
built according to IP44 and can be mounted and operated both indoors and outdoors.
It is not dimmable. The product is designed to be placed on the ground. A separate
switch can be installed to turn the lamp on/off. The safety information and all other
information in these operating instructions must be followed!
For safety and approval purposes (CE), you must not rebuild and/or modify this product.
If you use the product for purposes other than those described above, the product may
be damaged. In addition, improper use can cause hazards such as short circuiting,
fire, electric shock etc. Read the instructions carefully and keep them. Make this
product available to third parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All
company names and product names are trademarks of their respective owners. All
rights reserved.
Delivery content
• LED outdoor floor lamp
• 3 x screws
• 3 x dowels
• Operating instructions
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting
personal injury or damage to property. Such cases will invalidate the
warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. These may
become dangerous playing material for children.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can no
longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a
low height can damage the product.
• Also observe the safety and operating instructions of any other devices
which are connected to the product.
• Mount the lamp so that children cannot reach it.
• The lamp must only be operated using the mains voltage (see "Technical
data" section). Never try to operate the lamp using another type of voltage
as this will destroy it.
• The product is designed according to protection class I; the earth wire
must be connected.
• Attention, LED light: Do not look directly into the LED light! Do not look into
the beam directly or with optical instruments!
• The lamp is designed according to IP44 and can be mounted and operated
both indoors and outdoors.
• Never mount or operate the product under water.
• Ensure that you mount the lamp in the correct mounting position (see
"Mounting and connection" section), otherwise there is risk of a fatal injury
due to an electric shock!
• The light must be not be operated using a dimmer.
• The product is not explosion proof. Never use the product in rooms which
contain or may contain flammable gases, vapours or combustible dusts!
There is a risk of explosion!
• Never point a garden hose or a pressure washer etc. at the product (e.g.
for cleaning)!
• The lamp must only be used when mounted in a fixed location. Never
mount the lamp in vehicles.
• Do not hang or secure any objects (e.g. decorations) to the lamp.
• In industrial facilities, the accident prevention regulations for electrical
equipment and facilities issued by the Industrial Employers' Liability
Association must be adhered to!
• Consult an expert when in doubt about operation, safety or connection of
the device.
• Maintenance, modifications and repairs are to be performed exclusively
by an expert or at a qualified shop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.
Preparation for mounting
Pay attention to the "Safety instructions" section.
Warning! The product must only be installed by a qualified electrician
who is familiar with the relevant regulations (e.g. VDE)! By carrying out
improper work on the mains voltage you endanger not only yourself, but
also others! If you do not know how to mount the product, get an expert to
do it for you; do not mount it yourself.
• Only mount the lamp on a stable surface. Depending on the surface, suitable screws
and dowels must be used.
• The lamp must be protected with a 10/16A fuse at the sub-distribution. An earth
leakage circuit breaker must be installed before this (FI protective switch).
• The lamp may only be installed when it is disconnected from the power supply. It is
not sufficient just to turn off the light switch!
• Isolate all poles of the mains cable from the mains supply by removing the electric
circuit fuse or switching off the circuit breaker. Then turn off the earth leakage
circuit breaker. Protect it against an unauthorised restart, e.g. with a danger sign.
• Check that the mains cable is free of current, e.g. with an appropriate tester.

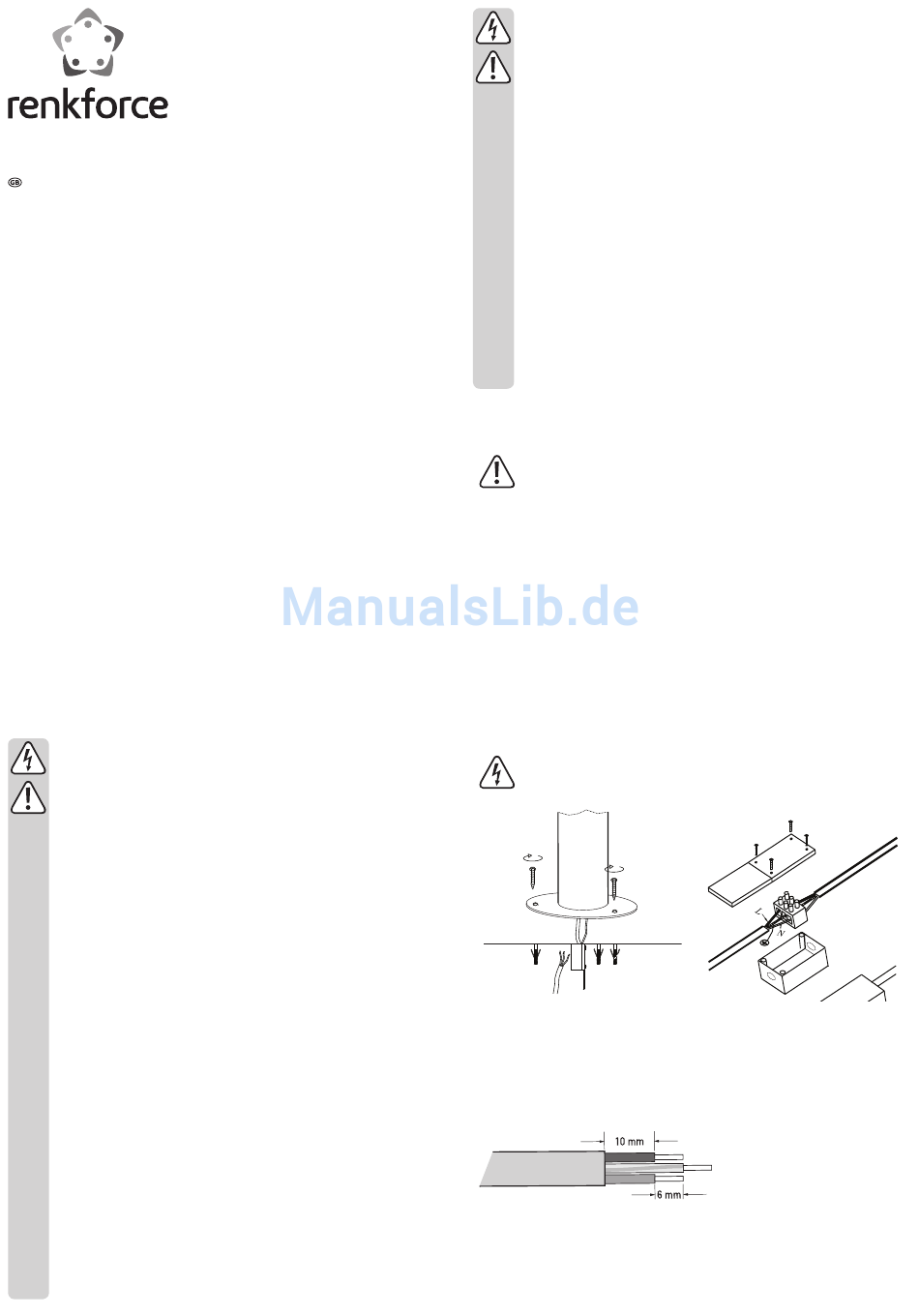

Mounting and connection
Pay attention to the information in the "Preparation for mounting" section.
Installation
1. Remove the junction box from the floor stand of the lamp. Begin by holding the
flat plastic handle.
2. Then unscrew the four screws from the top and remove the cover of the junction
box.
3. Carefully pull the screw terminal out of the junction box.
4. Remove the outer insulation on the mains cable to a maximum length of about
16 mm. Strip the insulation on each of the three wires on the mains cable to a
length of about 6 mm. The earth cable (yellow-green cable) should be at least 6 mm
longer so that it remains the last cable in the screw terminal in the event of a fault.
5. Loosen the two strain relief screws in the junction box, but do not remove them
completely.
Electrical connection
Removing the insulation on the
cable
