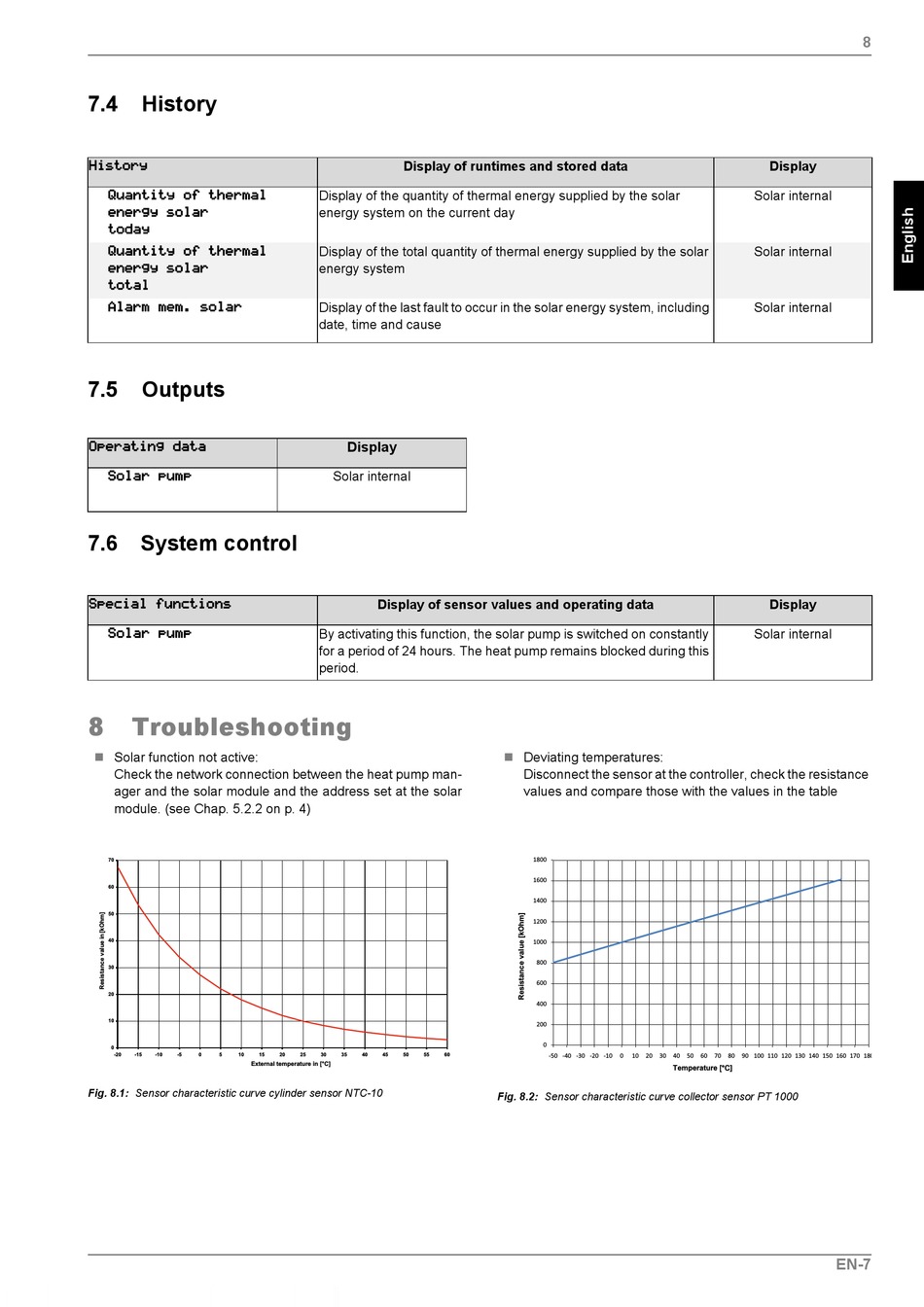

History; Outputs; System Control; Troubleshooting - Wpm Econ Sol Montage- Und Gebrauchsanweisung

7.4

History









7.5

Outputs




7.6 System control



8

Troubleshooting

 Solar function not active:
Check the network connection between the heat pump man-
ager and the solar module and the address set at the solar
module. (see Chap. 5.2.2 on p. 4)
Fig. 8.1: Sensor characteristic curve cylinder sensor NTC-10
Display of runtimes and stored data
Display of the quantity of thermal energy supplied by the solar
energy system on the current day
Display of the total quantity of thermal energy supplied by the solar
energy system
Display of the last fault to occur in the solar energy system, including
date, time and cause
Display
Solar internal
Display of sensor values and operating data
By activating this function, the solar pump is switched on constantly
for a period of 24 hours. The heat pump remains blocked during this
period.
 Deviating temperatures:
Disconnect the sensor at the controller, check the resistance
values and compare those with the values in the table
1800
1600
1400
1200
1000
800
600
400
200
0
-50 -40 -30 -20 -10 0 10 20 30
Fig. 8.2: Sensor characteristic curve collector sensor PT 1000
Display
Solar internal
Solar internal
Solar internal
Display
Solar internal
40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
Temperature [ [ °C C ]
