Mounting
•
Mount the radiator fully: loosen the 2 screws on the outside of the lower part of the radiator and re-screw them
after the upper part is set on the lower part of the radiator. The 70cm X-quad is delivered with a complete as-
sembled radiator.
•
Remove the 2 nuts M5 on the bolts of the connector case. Should you find any rubber seals, please remove
them too, they are not needed any more.
•
put the radiator on the boom and fix it with the nuts removed in step before. the connectors have to point
backward (short side of the boom). the loose end of the radiator is to be fixed with a self tapping screw.
•
Mount the reflector and director elements with the element clamps provided. 2 elements are mounted together
with one screw. Take care about the different element lengths: the 70cm X-Quad has only one director length,
the reflector element is longer. The 2m X-Quad has 3 different element lengths: the reflector is the longest,
the first director (nearest to the radiator) is shorter, the other 3 directors are the shortest with same lengths.
•
Mount the mast clamp: the antennas are made for foremast mounting, the clamp will be mounted behind the
reflector element. Take care, the 2 N -jacks must be side by side, not above each other after the antenna is
mounted to the mast. When a glassfibre tube is used, the clamp may be set into the middle of the boom.
Each plane has its own feedline, when the antenna is mounted with b oth jacks facing downward to the rear
(connector case under the boom), the left N-jack is the horizontal plane and the right N-jack is the vertical plane.
See figure below.
Usually N-connectors are waterproof when they are mounted correctly. Anyway it's helpful to seal the connectors
with self amalgating tape no. 23065.
Adjusting
Normally the antennas don't require any adjustments. For fine tuning of SWR the ends of the first director must be
bended. Always bend both ends of the director like shown in the figure below. Bended to radiator: the resonant
frequency shifts downward, bend to second director the frequency shift upward.
Take care to use the right ends of the director, the adjustments of the 2 planes effect each other a bit.

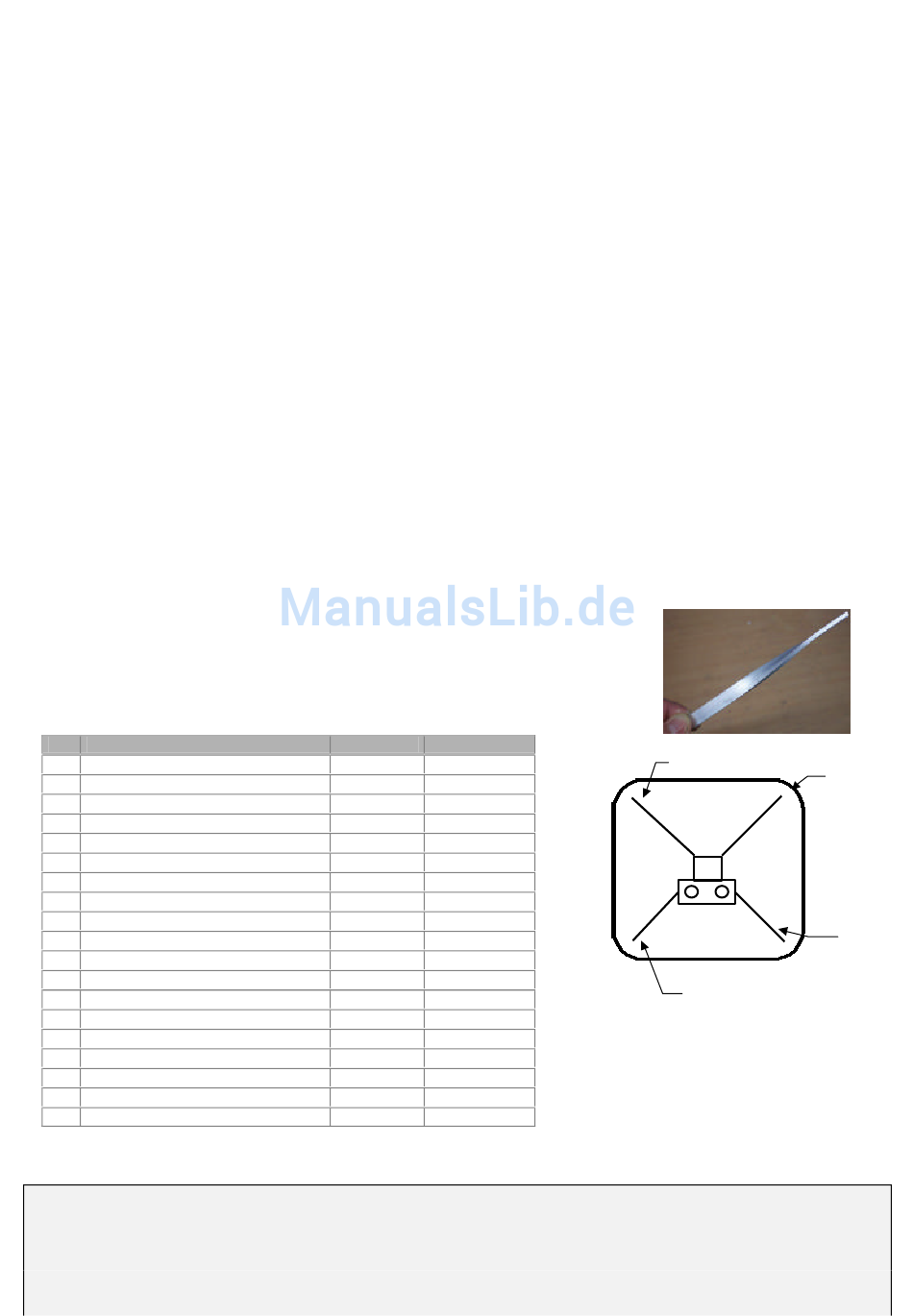

As the bending is not easy to do, you may twist the flat material 90° like shown in
the picture. afterwards adjustments are much easier
parts list
part No.
1
boom
2
radiator element complete
3
passive elements
4
mast clamp
5
fixed clamp
6
clamp for boom 20mm
7
U-bolts
8
element holder
9
DIN 84 screw M5x35
10
DIN 933 screw M6x12
11
DIN 7981 self tapping screw 3,5x9,5
12
DIN 127 lockwasher 5mm
13
DIN 127 lockwasher 6mm
14
DIN 9021 washer 6mm big
15
DIN 934 nut M5
16
DIN 315 wing nut M6
17
description
WiMo Antennen und Elektronik GmbH
Am Gäxwald 14 D-76863 Herxheim
http://www.wimo.com
- 9 -
.
2m-XQuad
70cm-XQuad
18010
18011
1
1
1
1
10
16
1
1
1
1
1
1
1
1
10
16
5
8
2
2
1
1
7
10
2
2
2
2
7
8
2
2
1
1
Tel.(07276) 96680
V
H V
Seen from back of the antenna: right jack
is the vertical connector. For adjustment of
SWR in vertical plane, bend the left ends
of the first director to front or back of the
antenna.
FAX: 966811
e-mail: info@wimo.com
H
H
V
