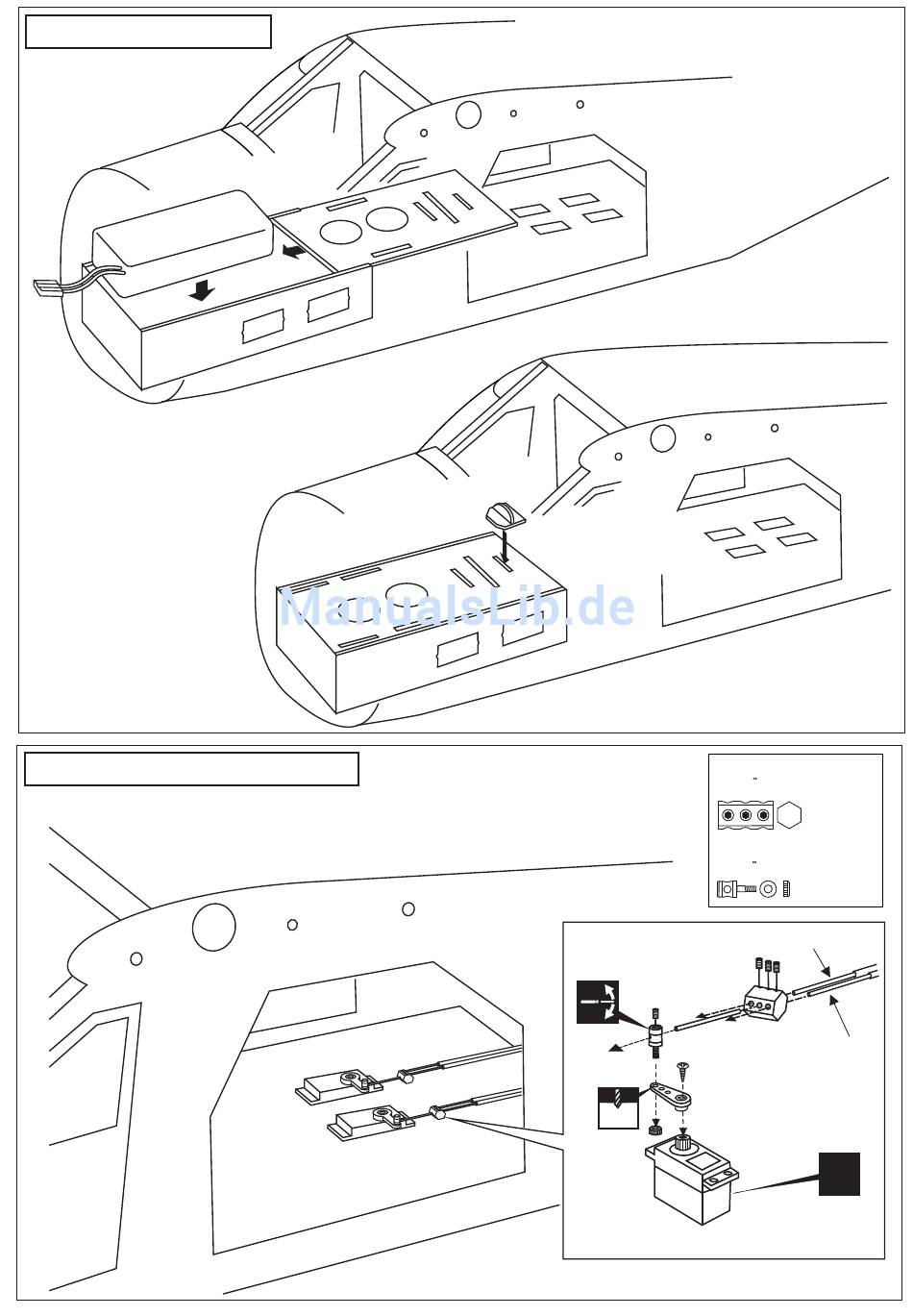

18- Battery installation
1
19- Linkage / Anlenkungen
2
1- Install the LI-po battery into the box.
2- Pull the hatch (as shown).
BTC
Reposition the BTC for secure the hatch in place.
3mm set Screw
2 mm
ELEVATOR / RUDDER SERVO
Connector
Gestangeanschluss
............2
Connector
Gestangeanschluss
............2
Elevator pushrod
Elevator pushrod
or rudder pusshrod
D=5/64"(2mm)
Tail wheel pushrod
D=.050"(1.2mm)
