25- Decor / Aufkleber
Note: Cut out the stickers and apply them in the proper area.
Do not peel the backing paper off all at once. Peel off one corner of the backing and cut off
with scissors. Arrange sticker on model and when satisfied adhere the corner without backing.
Carefully peel back the rest of the backing while at the same time adhering the rest of the
sticker.
Try not to make air bubbles, if there are some, carefully puncture sticker (center of bubble) but not model surface
with the tip of the knife or sharp pin and squeeze out the air.
At curves stretch sticker and apply a little heat so that no ceases occur. Cut off the excess that is produced.

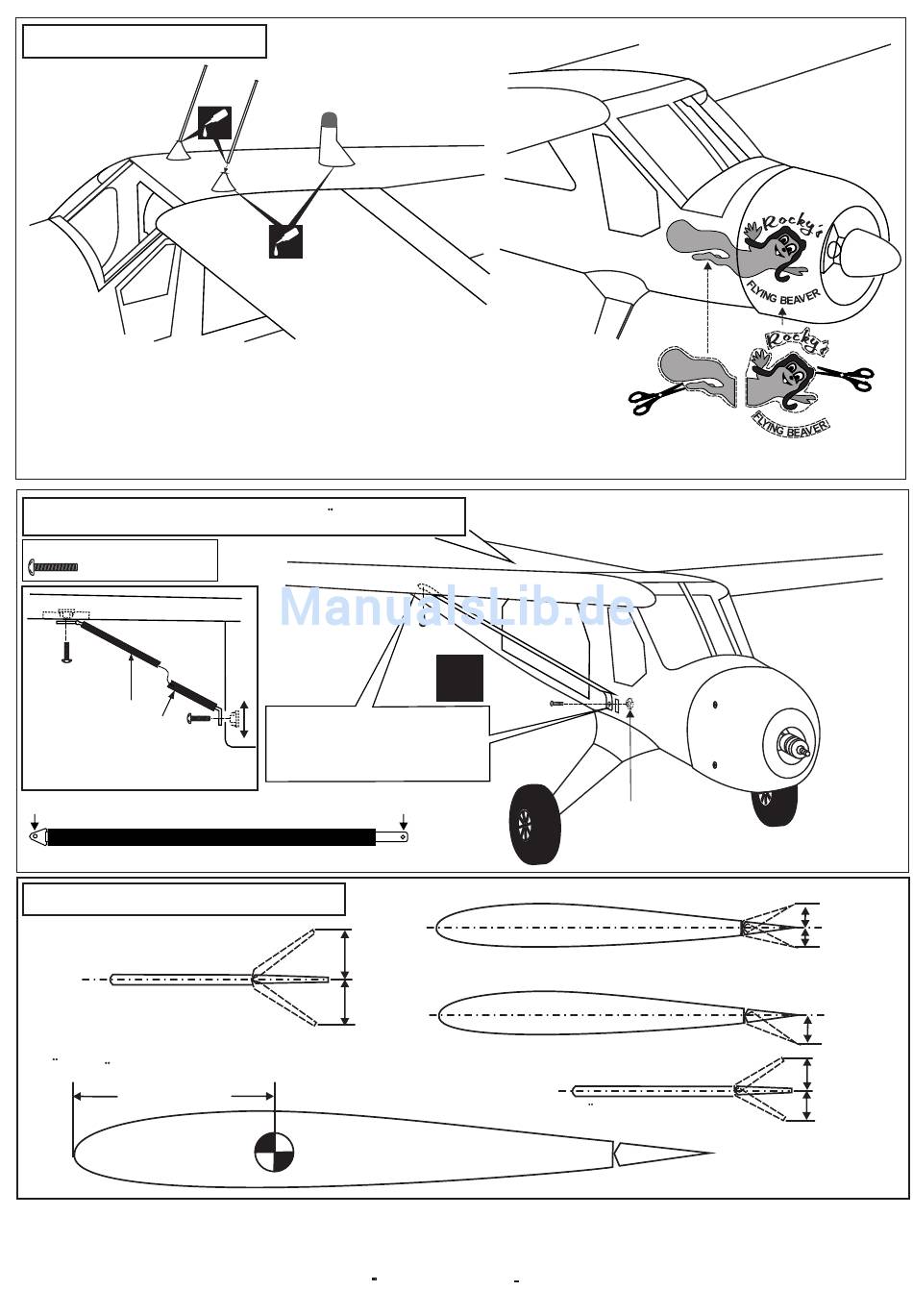

26- Installing the wing / Tragflacheneinbau
3x15mm screw / Schraube
............................2
Wing
3x15mm
sscrew
Wing brace
3x15mm
sscrew
The blindnut in the wing
is installed at factory.
To the bottom of the wing
Wing brace ( right - left)
27- Balance / Schwerpunkt
Rudder
Seitenruderausschlag
Do not try to fly an out-of balance model!
Uberprufen Sie vor dem Flug den Schwerpunkt.
90 ~ 95mm
IMPORTANT:
Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner
to clean on surface of your model to keep the colour not fade.
All details are subject to change
without notice !
CA
CA
The hole on the bottom of the
wings and the slot on the side of
the fuselage are pre-drilled at
factory
To the side of the fuselage
30mm
30mm
Technische Anderungen und Irrtumer
vorbehalten !
L/R
This blindnut can be
move up and down
Aileron
Querruderausschlag
Flap
Hohenruderausschlag
4
4
Elevator
2
1
3
2
1
3
15mm
15mm
20mm
15mm
15mm
