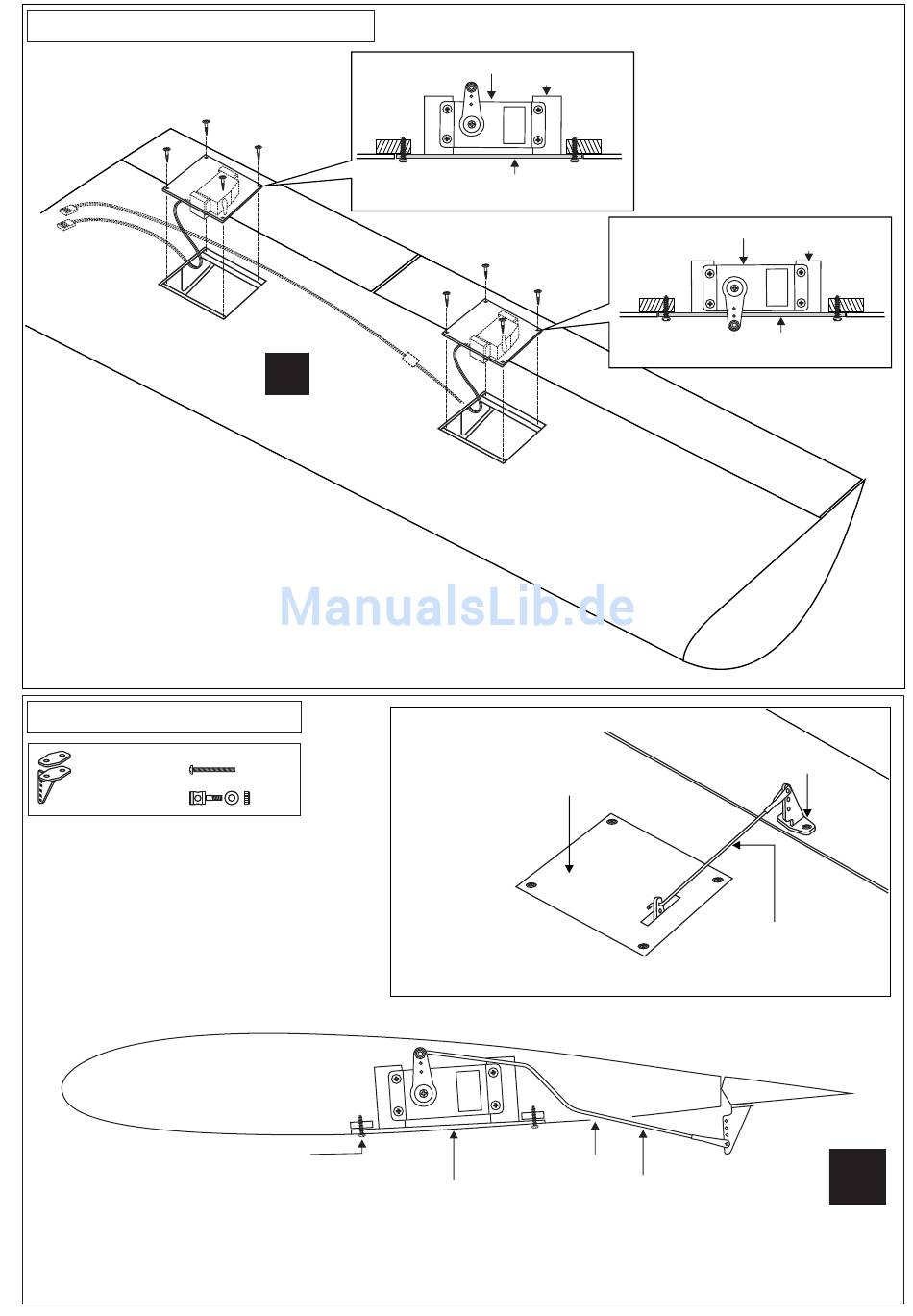

20- Servo installation / Servoeinbau
5/64(2x10mm)
screw
BOTTOM - VIEW / Unteransicht
21- Linkages / Anlenkungen
2x30mm screw
Control horn
...................2
2x10mm screw
1- Place the flap servo onto the servo mounts and secure it in place using the four screws included with the servo.
2- Install the flap push rod connector onto the hole in the flap servo arm and insert the push rod through the push rod
connector.
3- Place the flap servo hatch in its mount and secure it in place using four 2x10mm screws.
Aileron servo
X
extension
cord
Aileron servo / Querruder servo
..........4
......2
TOP
BOTTOM
Flap servo hatch
Flap servo
Servo mount
Flap servo hatch
WING BOTTOM
5/64(2x10mm)
screw
Aileron servo hatch
Wing - Bottom view / Unteransicht
CAUTION: one of the flap servos is revert servo
Push rod exit
Aileron servo
Servo mount
Aileron servo hatch
WING BOTTOM
Aileron control horn
Aileron push rod
Flap push rod
L/R
