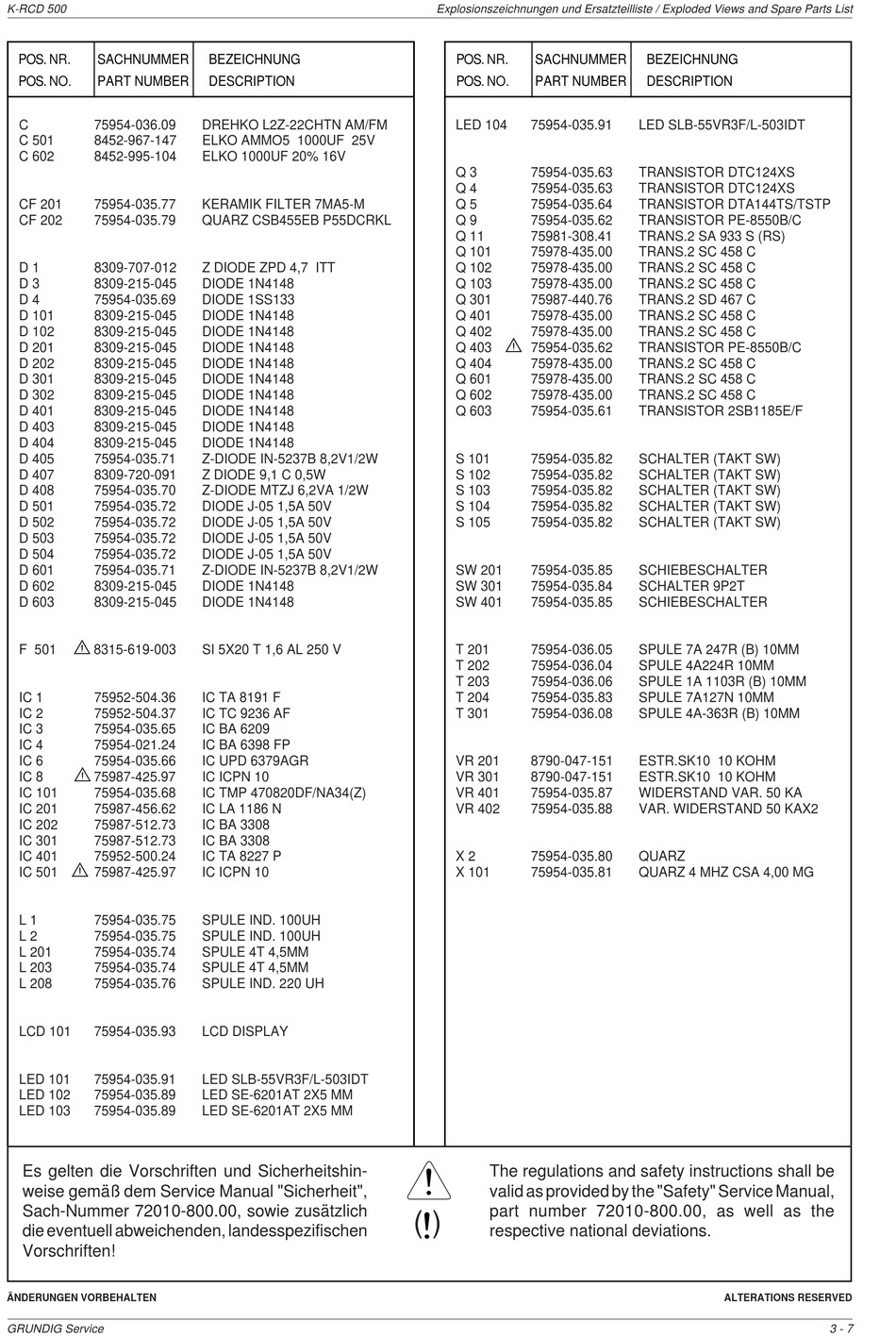

Grundig K-RCD 500 Serviceanleitung Seite 21

K-RCD 500
POS. NR. SACHNUMMER
POS. NO. PART NUMBER
C 75954-036.09
C 501 8452-967-147
C 602 8452-995-104
CF 201 75954-035.77
CF 202 75954-035.79
D 1 8309-707-012
D 3 8309-215-045
D 4 75954-035.69
D 101 8309-215-045
D 102 8309-215-045
D 201 8309-215-045
D 202 8309-215-045
D 301 8309-215-045
D 302 8309-215-045
D 401 8309-215-045
D 403 8309-215-045
D 404 8309-215-045
D 405 75954-035.71
D 407 8309-720-091
D 408 75954-035.70
D 501 75954-035.72
D 502 75954-035.72
D 503 75954-035.72
D 504 75954-035.72
D 601 75954-035.71
D 602 8309-215-045
D 603 8309-215-045
S
F 501 8315-619-003
IC 1 75952-504.36
IC 2 75952-504.37
IC 3 75954-035.65
IC 4 75954-021.24
IC 6 75954-035.66
S
IC 8 75987-425.97
IC 101 75954-035.68
IC 201 75987-456.62
IC 202 75987-512.73
IC 301 75987-512.73
IC 401 75952-500.24
S
IC 501 75987-425.97
L 1 75954-035.75
L 2 75954-035.75
L 201 75954-035.74
L 203 75954-035.74
L 208 75954-035.76
LCD 101 75954-035.93
LED 101 75954-035.91
LED 102 75954-035.89
LED 103 75954-035.89
Es gelten die Vorschriften und Sicherheitshin-
weise gemäß dem Service Manual "Sicherheit",
Sach-Nummer 72010-800.00, sowie zusätzlich
die eventuell abweichenden, landesspezifischen
Vorschriften!
ÄNDERUNGEN VORBEHALTEN
GRUNDIG Service
BEZEICHNUNG
DESCRIPTION
DREHKO L2Z-22CHTN AM/FM
ELKO AMMO5 1000UF 25V
ELKO 1000UF 20% 16V
KERAMIK FILTER 7MA5-M
QUARZ CSB455EB P55DCRKL
Z DIODE ZPD 4,7 ITT
DIODE 1N4148
DIODE 1SS133
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
DIODE 1N4148
Z-DIODE IN-5237B 8,2V1/2W
Z DIODE 9,1 C 0,5W
Z-DIODE MTZJ 6,2VA 1/2W
DIODE J-05 1,5A 50V
DIODE J-05 1,5A 50V
DIODE J-05 1,5A 50V
DIODE J-05 1,5A 50V
Z-DIODE IN-5237B 8,2V1/2W
DIODE 1N4148
DIODE 1N4148
SI 5X20 T 1,6 AL 250 V
IC TA 8191 F
IC TC 9236 AF
IC BA 6209
IC BA 6398 FP
IC UPD 6379AGR
IC ICPN 10
IC TMP 470820DF/NA34(Z)
IC LA 1186 N
IC BA 3308
IC BA 3308
IC TA 8227 P
IC ICPN 10
SPULE IND. 100UH
SPULE IND. 100UH
SPULE 4T 4,5MM
SPULE 4T 4,5MM
SPULE IND. 220 UH
LCD DISPLAY
LED SLB-55VR3F/L-503IDT
LED SE-6201AT 2X5 MM
LED SE-6201AT 2X5 MM
