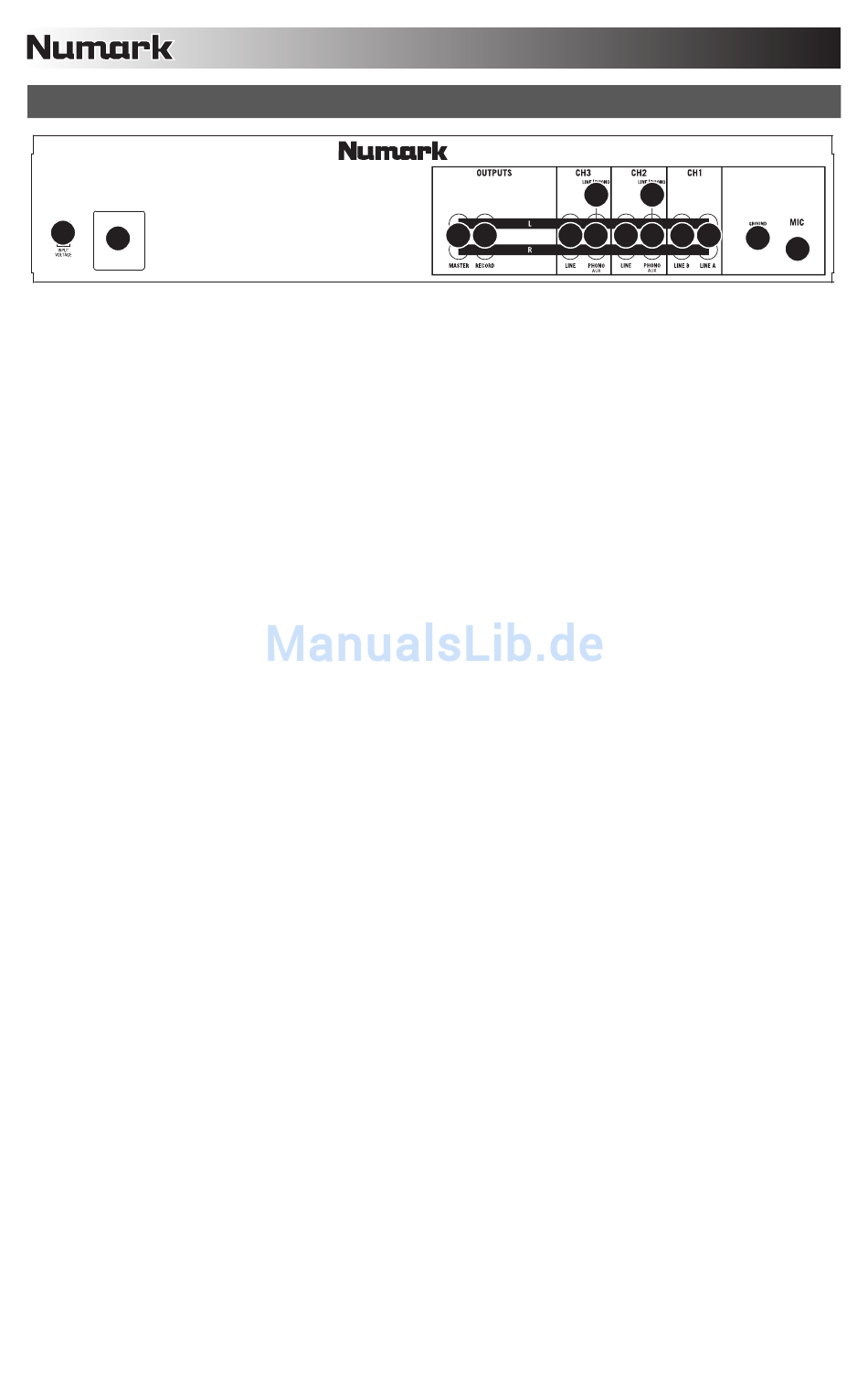

REAR PANEL FEATURES

9
8
1. MIC INPUT – Connect a ¼" microphone to this input. Microphone controls are located on the top
panel.
2. GROUNDING TERMINAL – If using phono-level turntables with a grounding wire, be sure to connect
the grounding wire to these terminals. If you experience a low "hum" or "buzz", this could mean that
your turntables are not grounded.
Note: Some turntables have the grounding wire built into the RCA connection and, therefore, nothing
needs to be connected to the grounding terminal.
3. LINE INPUTS (RCA) – Connect line-level devices, such as CD players, samplers or audio interfaces,
to these inputs.
4. AUX | PHONO INPUTS (RCA) – Connect your audio sources to these inputs. These inputs can accept
both line and phono-level signals.
5. LINE | PHONO SWITCH – Flip this switch to the appropriate position, depending on the device
connected to the PHONO INPUTS. If using phono-level turntables, set this switch to "PHONO" to
provide the additional amplification needed for phono-level signals. If using a line-level device, such as
a CD player or sampler, set this switch to "LINE."
6. RECORD OUTPUT (RCA) – Use standard RCA cables to connect this Record output to a recording
device, such as a CD recorder or tape deck. The level of this output is based upon pre-master levels.
7. MASTER OUTPUT (RCA) – Use standard RCA cables to connect this Master output to a speaker or
amplifier system. The level of this output is controlled by the MASTER FADER on the top panel.
8. POWER IN – Use the included power cable to connect the mixer to a power outlet. While the power is
switched off, plug the power supply into the mixer first, then plug the power supply into a power outlet.
9. VOLTAGE SELECTOR – This 2-position switch sets the AC input voltage for the speaker. U.S. users
should set this switch to "100-120V" whereas U.K. and most European users will need to set this to
"220-240V."
