LINE INPUT LEFT/RIGHT
Balanced line input with XLR/6.3 mm jack combo sockets (left/right) to connect a playback device (such as a mixer, keyboard). If connecting
a mono signal source, please use the line input LEFT/MONO.
16
SYSTEM OUTPUT
Balanced line output with male XLR socket for connecting to other MAUI5 GO speaker systems.
17
POWER SOCKET AND FUSE HOLDER
IEC mains socket with built-in fuse holder. A suitable power cable is included.
IMPORTANT: Replace the fuse only with a fuse of the same type and value. Follow the instructions printed on the housing. In the event of
repeated fuse failure, please contact an authorised service centre.
18
POWER ON-OFF/CHARGE
Switch for powering on the device. In the ON position, the system is ready to use and the battery is charged. In the OFF/CHARGE position,
only the battery charging system is in operation. To use the device without mains power, the network connection must be removed (detach
the mains plug).
19
BATTERY CHECK
Button for displaying battery status with the status LEDs (No. 20).
20

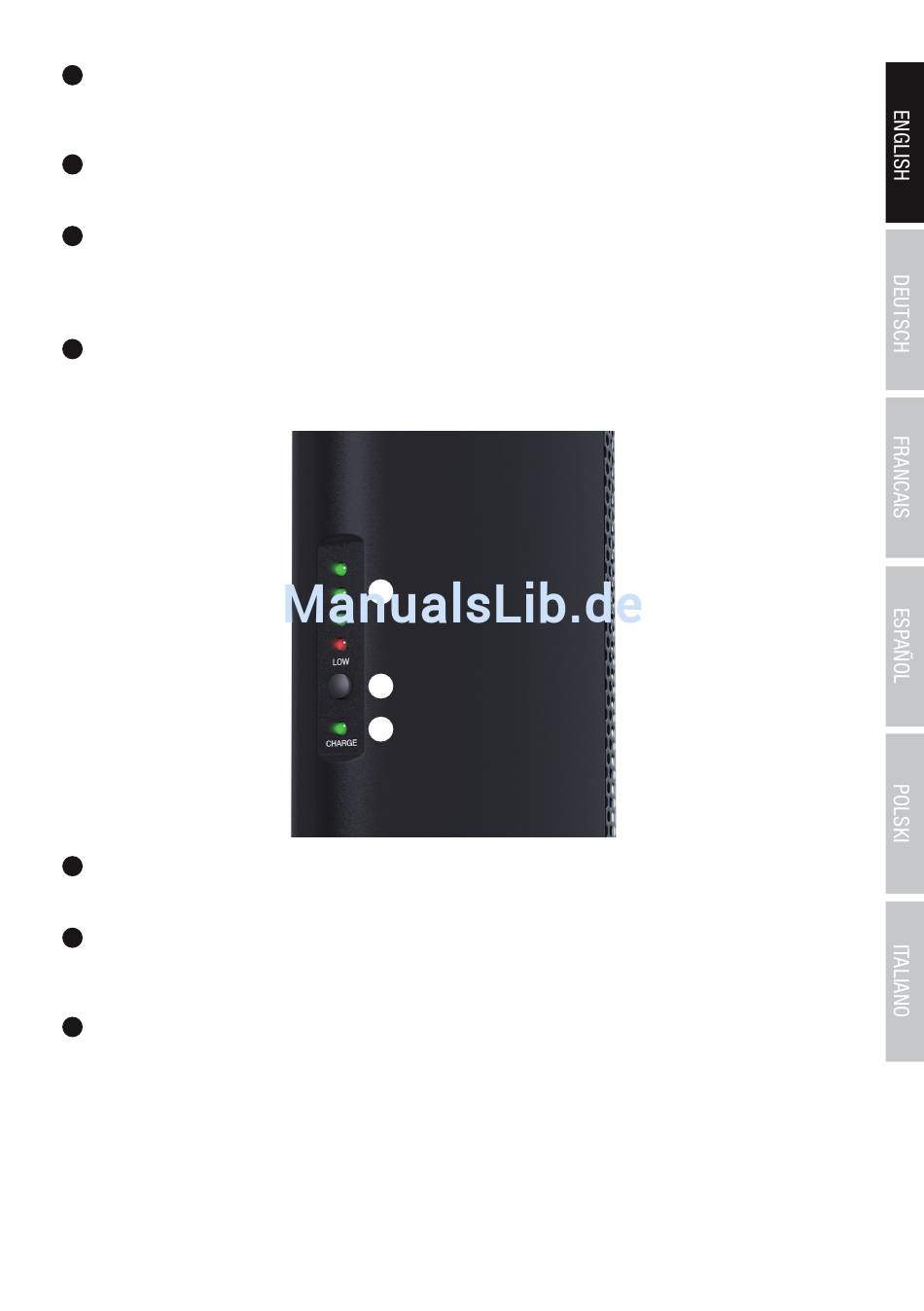

BATTERY STATUS LEDs
4-segment LED battery status display. Press button no. 19 for display of battery status by the status LEDs. If all 4 LEDs light up, the battery
is fully charged. If only the red LOW LED is lit, charge the battery immediately, or exchange it for a fully charged battery.
21
CHARGE
The battery in the corresponding column section is charged and the CHARGE LED lights up as soon as the speaker system is correctly connected to
the power supply (separate charging dock is available as an option). The battery is also charged if the speaker system is connected to the mains power
supply, but is switched off (OFF/CHARGE), The charge current is 2.5 A. If the speaker system is switched on, the charge current is 1.5 A. Charging time
when the system is switched-off (OFF/CHARGE) is approximately 3 hours. When full charge voltage is reached, the charging process is automatically
stopped and the CHARGE LED goes out. The charging system checks the battery voltage at regular intervals and automatically restarts the charging
process if full charge voltage is not achieved.
