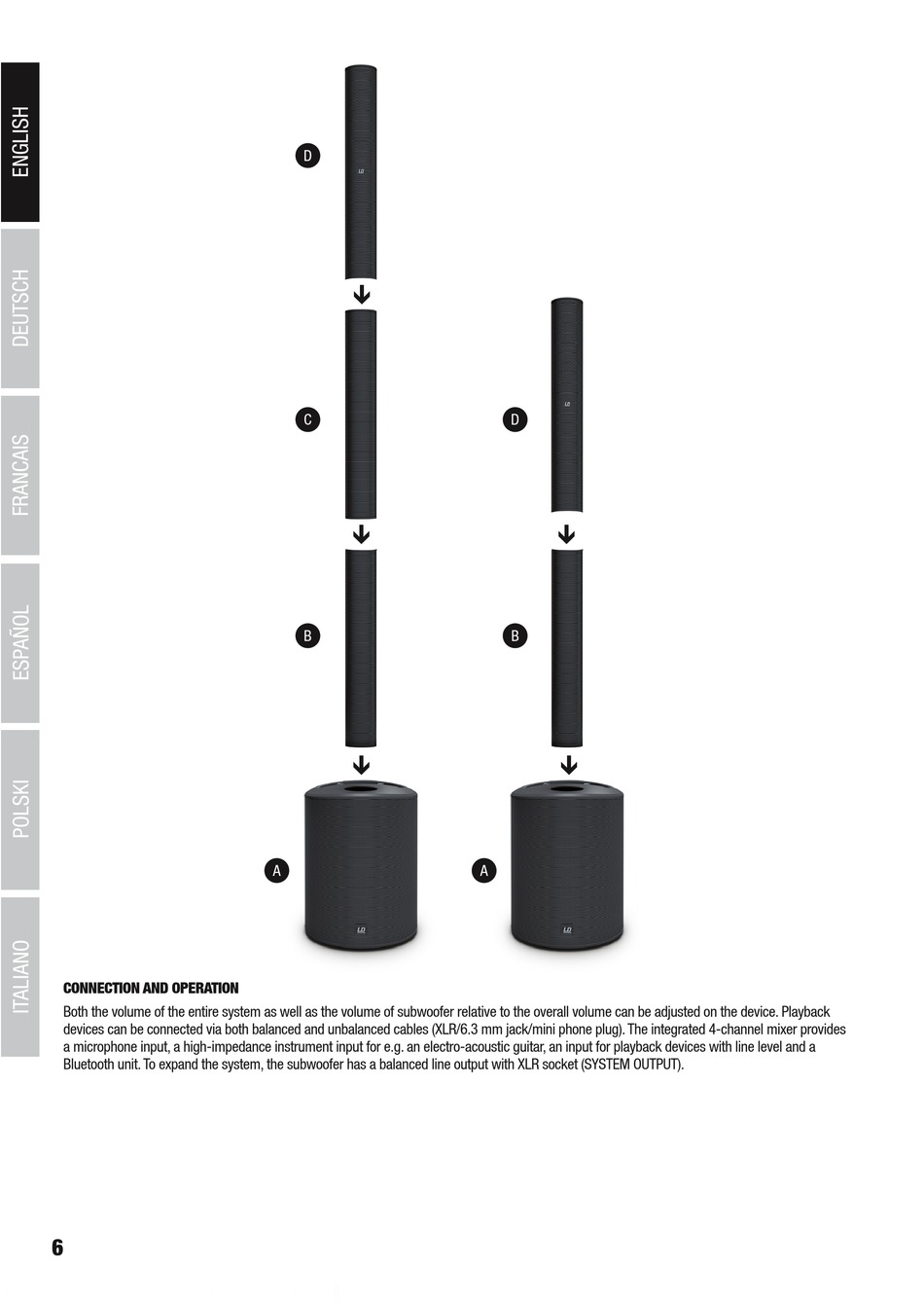

CONNECTION AND OPERATION

Both the volume of the entire system as well as the volume of subwoofer relative to the overall volume can be adjusted on the device. Playback
devices can be connected via both balanced and unbalanced cables (XLR/6.3 mm jack/mini phone plug). The integrated 4-channel mixer provides
a microphone input, a high-impedance instrument input for e.g. an electro-acoustic guitar, an input for playback devices with line level and a
Bluetooth unit. To expand the system, the subwoofer has a balanced line output with XLR socket (SYSTEM OUTPUT).
6
D

C

B

A
D

B

A
