4 Press the OK button.
The valve actuation turns out from the product. 'AdA' appears on the display.
When properly mounted the home screen appears on the display. With an incorrect assembly,
an error code (F1, F2 or F3) appears. See chapter 'Failure' for more information.

6.3 Assembly on a Danfoss valve

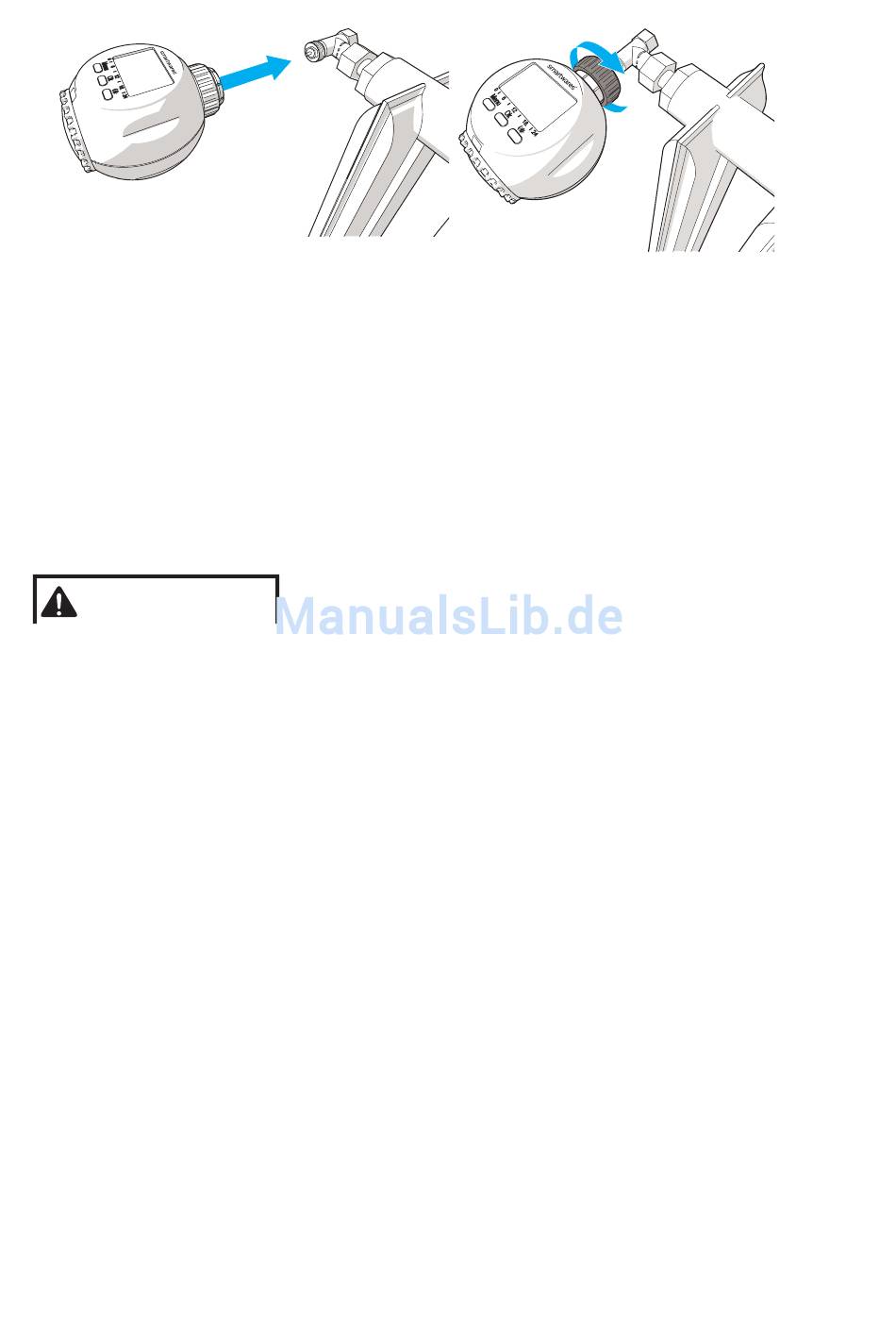

First, determine which of the three Danfoss rings (RA/IPR/RAVL) should be placed on the valve
of the radiator. Fix these rings tightly and then place the smart thermostat head.
The radiator contains recesses; make sure that the Danfoss ring fits securely.
WARNING
• Be careful not to catch your fingers between the two parts of a Danfoss ring during
installation.
Danfoss RA ring
1 Place the RA ring around the valve of the radiator.
Notice! Place the Danfoss ring so that it engages tightly in the recess (E) on the radiator.
2 Bolt on the RA ring using the supplied screw and nut.
Danfoss RAV ring
1 Place the RAV cap (F) to the valve on the radiator.
Notice! Place the Danfoss ring so that it engages tightly in the recess (E) on the radiator.
2 Bolt on the RAV ring using the supplied screw and nut.
