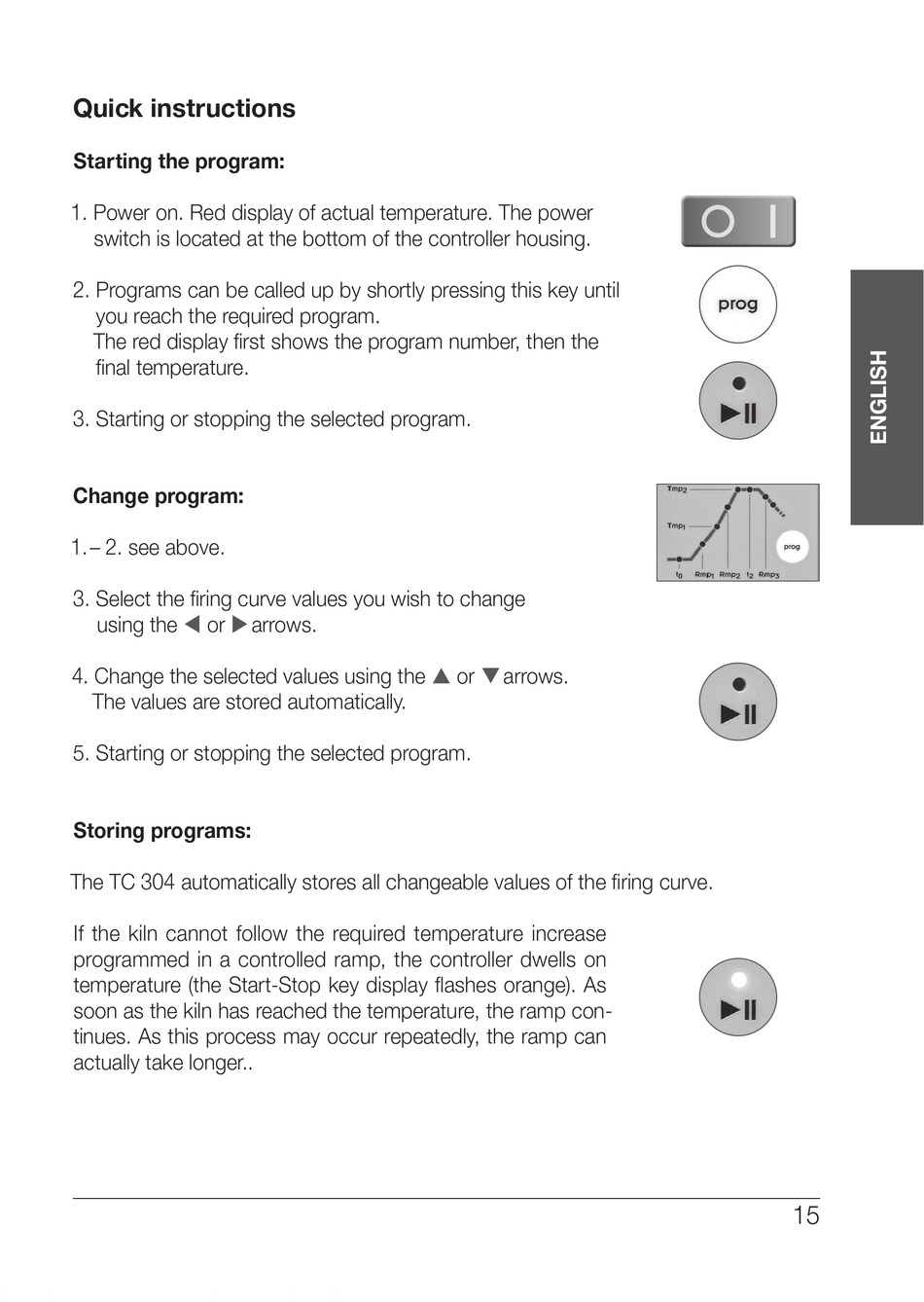

Quick instructions

Starting the program:
1 . Power on . Red display of actual temperature . The power
switch is located at the bottom of the controller housing .
2 . Programs can be called up by shortly pressing this key until
you reach the required program .
The red display fi rst shows the program number, then the
fi nal temperature .
3 . Starting or stopping the selected program .
Change program:
1 . – 2 . see above .
3 . Select the fi ring curve values you wish to change
using the or  arrows .

4 . Change the selected values using the
The values are stored automatically .
5 . Starting or stopping the selected program .

Storing programs:

The TC 304 automatically stores all changeable values of the fi ring curve .
If the kiln cannot follow the required temperature increase
programmed in a controlled ramp, the controller dwells on
temperature (the Start-Stop key display fl ashes orange) . As
soon as the kiln has reached the temperature, the ramp con-
tinues . As this process may occur repeatedly, the ramp can
actually take longer . .
 or  arrows .
15
