Mounting the controller TC 304

Mounting on a wall

Choose a safe, easy to operate place on a wall next to the kiln . Screw the two knurled
screws delivered together with the controller into the holes provided in the controller's
back side . These screws will fix the controller to its mounting .
You can now mount the controller's fastening bar using the 3 wall plugs and screws .
One fixing hole faces upwards, two downwards . The
protective plastic wrap has to point to your direction!
You can now place the controller on its mounting . The
knurled screws might have to be somewhat loosened .

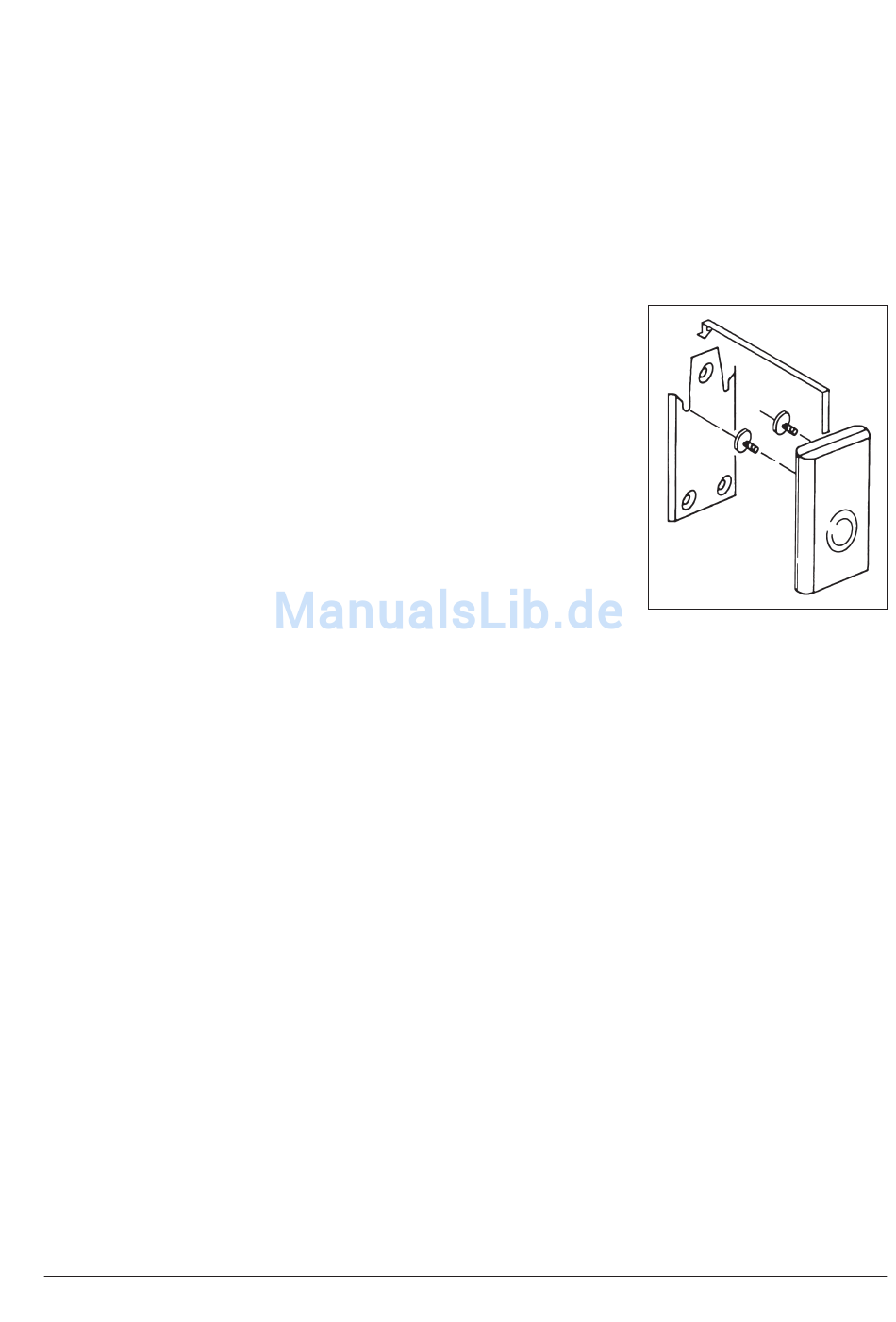

Mounting on a KE controller support
Place the controller support in a way to screw the
hand knob into the mounting place intended for . Ha-
ving tightened the controller support the controller can
be mounted .
Mount the controller's fastening bar using the 3 screws, nuts and washers . One fixing
hole faces upwards, two downwards . The protective plastic wrap has to point to your
direction!
Screw the two knurled screws delivered together with the controller into the holes
provided in the controller's back side .
You can now place the controller on its mounting . The knurled screws might have to
be somewhat loosened .
