Instruction Manual
for outdoor light
RUSTY CROSS
Please read carefully and keep for further reference !
NOTE: The rusty surface is one of the characteristics of this product.
The colour and structure of the surface may change during the
products lifetime.
1.
Use as directed:
This product serves exclusively lighting purposes and may:
only be used with a voltage of 230V ~50Hz.
not be exposed to strong mechanical loads or to strong
contamination.
only be installed and operated after a condition inspection if the
product is dirty or has been moistened through storage.
not be modified or converted.
If these points named above are not adhered to, a short circuit or
electrical shock may occur!
2.
Technical Data:
Operating voltage:
230V ~50Hz
Safety class:
Safety type:
IP 54
Bulb:
E14, max. 40W
Dimensions (Ø/H):
15/25 cm
Weight:
7,15 kg
Importer:
SLV Elektronik GmbH
IP 54: Protection against disturbing dust deposition - Protection against
splashing water from all directions
3.
Installation
The electric connection may be executed only by an electric expert
who is familiar with the valid directives!
Caution: Switch off the power of the mains supply line or
respectively of the connection lead before doing any works
parts, which are supplied with the product or are described as accessories!
Otherwise the product or the installation might not be sufficiently safe.
Installation place:
The product is suited for installation on the floor.
Make sure that the product is mounted on a stable, even and tilt-fixed
background.
The light exit should be placed at least so far from the illuminated surface,
as indicated as minimum distance on the type plate of the luminaire:
. Pay special caution to easily inflammable objects (e.g.
foliage).
Please note: Due to the rusty surface adjacent areas may be stained.

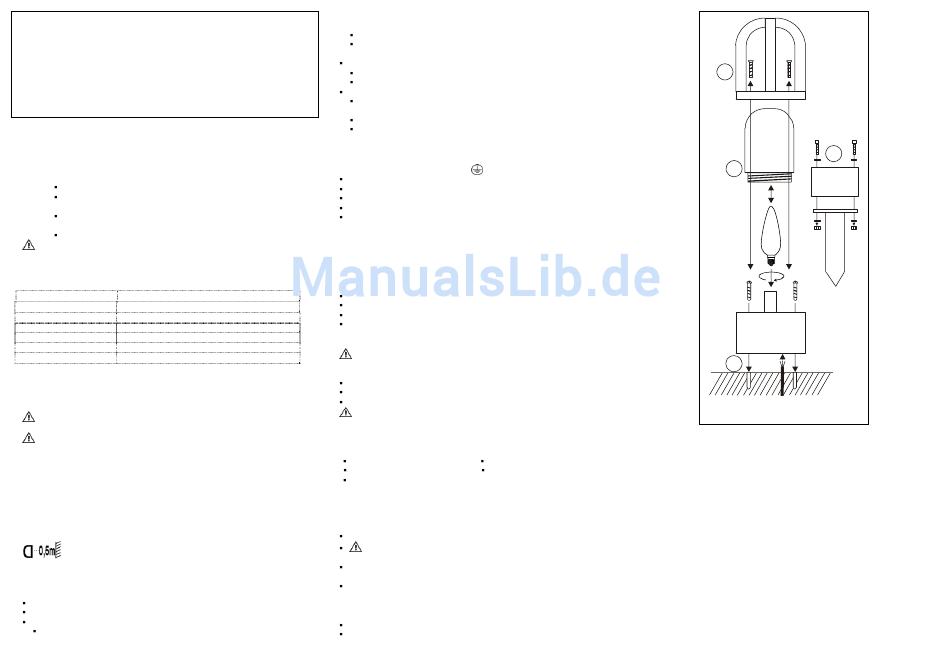

Separate Installation Steps
1: Remove the cover on the top.
2: Screw the glass off.
Direct Installation
Determine the place of installation and mark the holes to be drilled.
Note that the cable outlet of the mains supply corresponds with the
cable inlet of the fixture. Do not damage the power supply line, e.g. by
drilling, screws or strong bending.
Direct the mains lead through the rubber gasket into the housing.
3: Fix the lamp with suited installation material on the installation
surface.
4: Installation of the earth spike art.-no. 229412 (accessory)
Fix the earth spike with suited installationmaterial on the lamp.
Push the earth spike into the ground, until lamp is kept securely.
Electrical Connection
The product must be able to be separated by an all pole separation
from the current supply.
Equip the three wire ends with protective tubes.
For electric connection attach the black or brown wire (live conductor)
of the mains supply with the clamp L and the blue wire (neutral
conductor) of the mains supply with the clamp N. The green-yellow
wire (protective conductor) of the mains supply has to be tightly
screwed into the earth clamp
Screw the glass back on.
Fix the cover on the top.
Inserting the bulb: Screw the bulb into the socket.
Ensure that the light fixture holds securely!
The product is now ready for operation.
4.
Operation
Information for the user:
Operate the product only if it is working correctly. Switch off the product
with a malfunction immediately and operate it again only after examination
by an electrical specialist. This is the case, when:
visible damages appear.
I
the product does not work.
smoke, steam or crackling sounds appear.
an overheating is recognisable.
Repairs of the product or work on mains voltage-prominent sections may
only be carried out by qualified electricians.
Warning: Here exists mortal danger from an electric shock!
How to avoid failure and fire risk:
Do not cover the product - provide free air circulation!
Do not hang or fasten anything on the product, especially no decoration.
Replace damaged protection glasses immediately!
Never let children play unsupervised with electric products! Children
can not always estimate dangers in dealing with electric energy correctly.
The following enviromental influences may have unwanted effects on
Use only
.
the surface of the product:
acid rain and sour soil
thawing salt
other chemical substances (e.g. herbicides)
Protect the product by adequate means to avoid unwanted changes of the
surface. Cleaning tip: Switch off power! Clean the product with a damp
cloth.
What is to do if a bulb is defect or does not work?
Disconnect the product from power, before you exchange the bulbs.
Caution: Let the bulb cool down first before replacement – otherwise
considerable risk of injury exists because of the hot surface.
Replace the bulbs only with bulbs of the same data like socket, power
and capacity. Every other sort of bulb can lead to damages of the light.
Replacing the bulb: see Installation.
5.
What else has to be considered?
Disconnect the product from power, before you...
clean or maintain the product.
do any works on the product or its components (electric expert).
of the product.
:
high salt content in the air
cleaning agents
1
4
2
3
08/2007 © by SLV Elektronik GmbH
229430
Daimlerstr. 21-23, 52531 Übach-Palenberg, Germany
Technical Details are subject to change.
Duplication prohibited !
