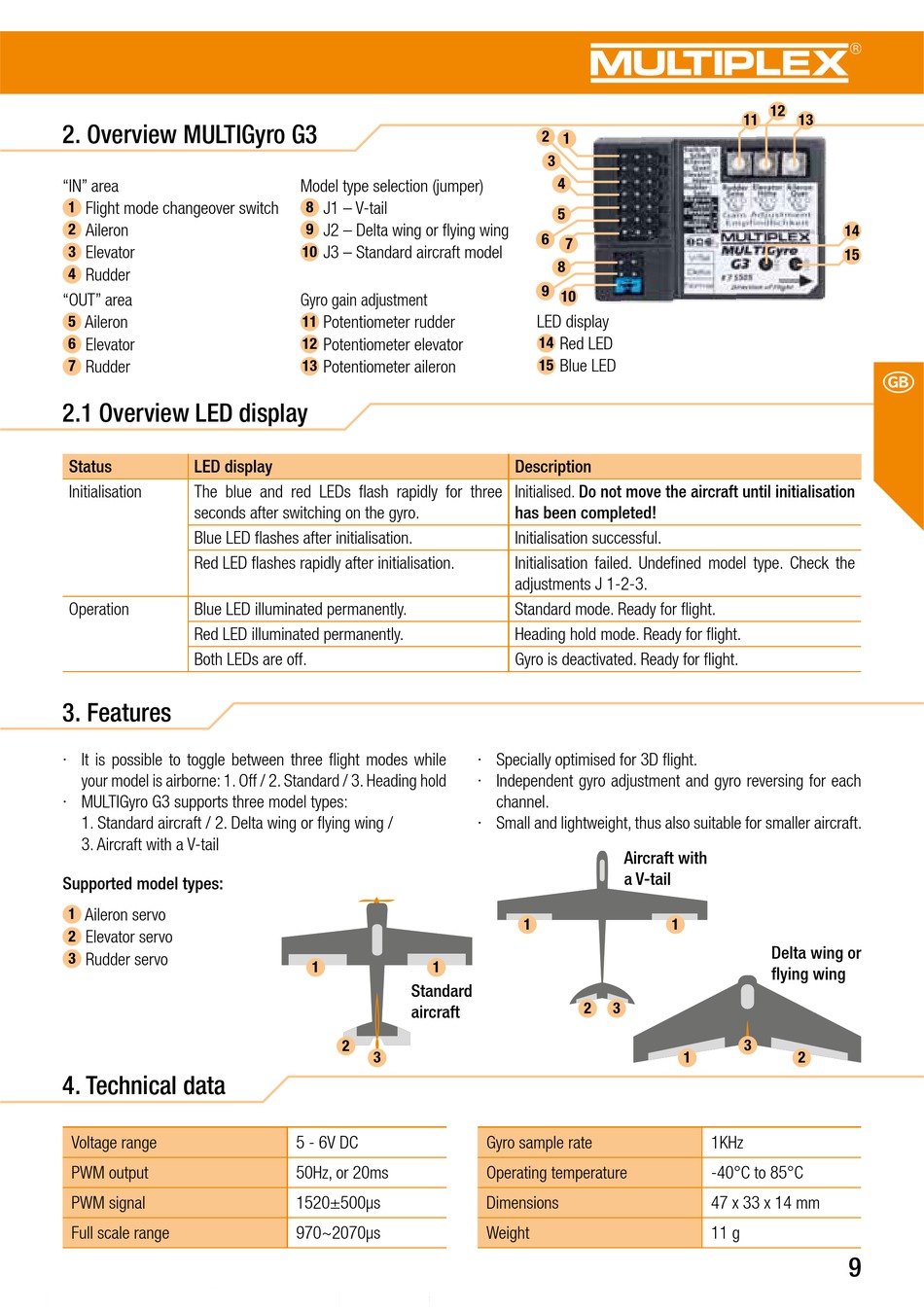

2. Overview MULTIGyro G3

"IN" area
1 Flight mode changeover switch
Aileron
2
3 Elevator
4 Rudder
"OUT" area
5 Aileron
6 Elevator
7 Rudder

2.1 Overview LED display

Status LED display
Initialisation The blue and red LEDs flash rapidly for three
seconds after switching on the gyro.
Blue LED flashes after initialisation.
Red LED flashes rapidly after initialisation.
Operation Blue LED illuminated permanently.
Red LED illuminated permanently.
Both LEDs are off.

3. Features

· It is possible to toggle between three flight modes while
your model is airborne: 1. Off / 2. Standard / 3. Heading hold
· MULTIGyro G3 supports three model types:
1. Standard aircraft / 2. Delta wing or flying wing /
3. Aircraft with a V-tail
Supported model types:
Aileron servo
1
Elevator servo
2
3 Rudder servo

4. Technical data

Voltage range
PWM output
PWM signal
Full scale range
Model type selection (jumper)
8 J1 – V-tail
J2 – Delta wing or flying wing
9
10 J3 – Standard aircraft model
Gyro gain adjustment
11 Potentiometer rudder
12 Potentiometer elevator
13 Potentiometer aileron
1 1
Standard
aircraft
2
3
5 - 6V DC
50Hz, or 20ms
1520±500µs
970~2070µs
2
1
3
4
5
6
7
8
9 10
LED display
14 Red LED
15 Blue LED
Description
Initialised. Do not move the aircraft until initialisation
has been completed!
Initialisation successful.
Initialisation failed. Undefined model type. Check the
adjustments J 1-2-3.
Standard mode. Ready for flight.
Heading hold mode. Ready for flight.
Gyro is deactivated. Ready for flight.
· Specially optimised for 3D flight.
· Independent gyro adjustment and gyro reversing for each
channel.
· Small and lightweight, thus also suitable for smaller aircraft.
Aircraft with
a V-tail
1
2 3
Gyro sample rate
Operating temperature
Dimensions
Weight
12
11 13
14
15
1
Delta wing or
flying wing
3
1 2
1KHz
-40°C to 85°C
47 x 33 x 14 mm
11 g

9
