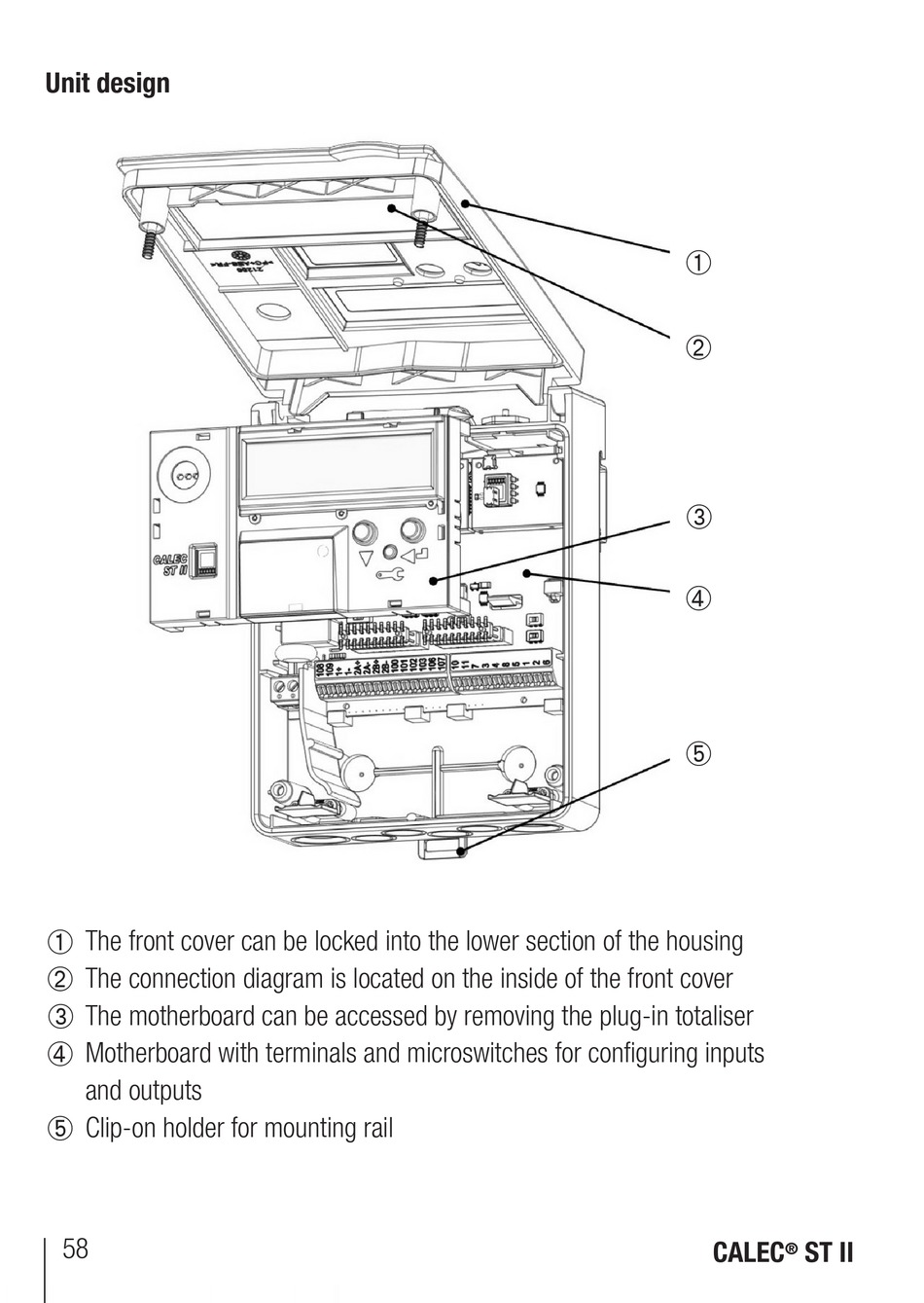

Unit design

The front cover can be locked into the lower section of the housing
À
The connection diagram is located on the inside of the front cover
Á
The motherboard can be accessed by removing the plug-in totaliser
Â
Motherboard with terminals and microswitches for configuring inputs
Ã
and outputs
Clip-on holder for mounting rail
Ä
