OWNER'S MANUAL

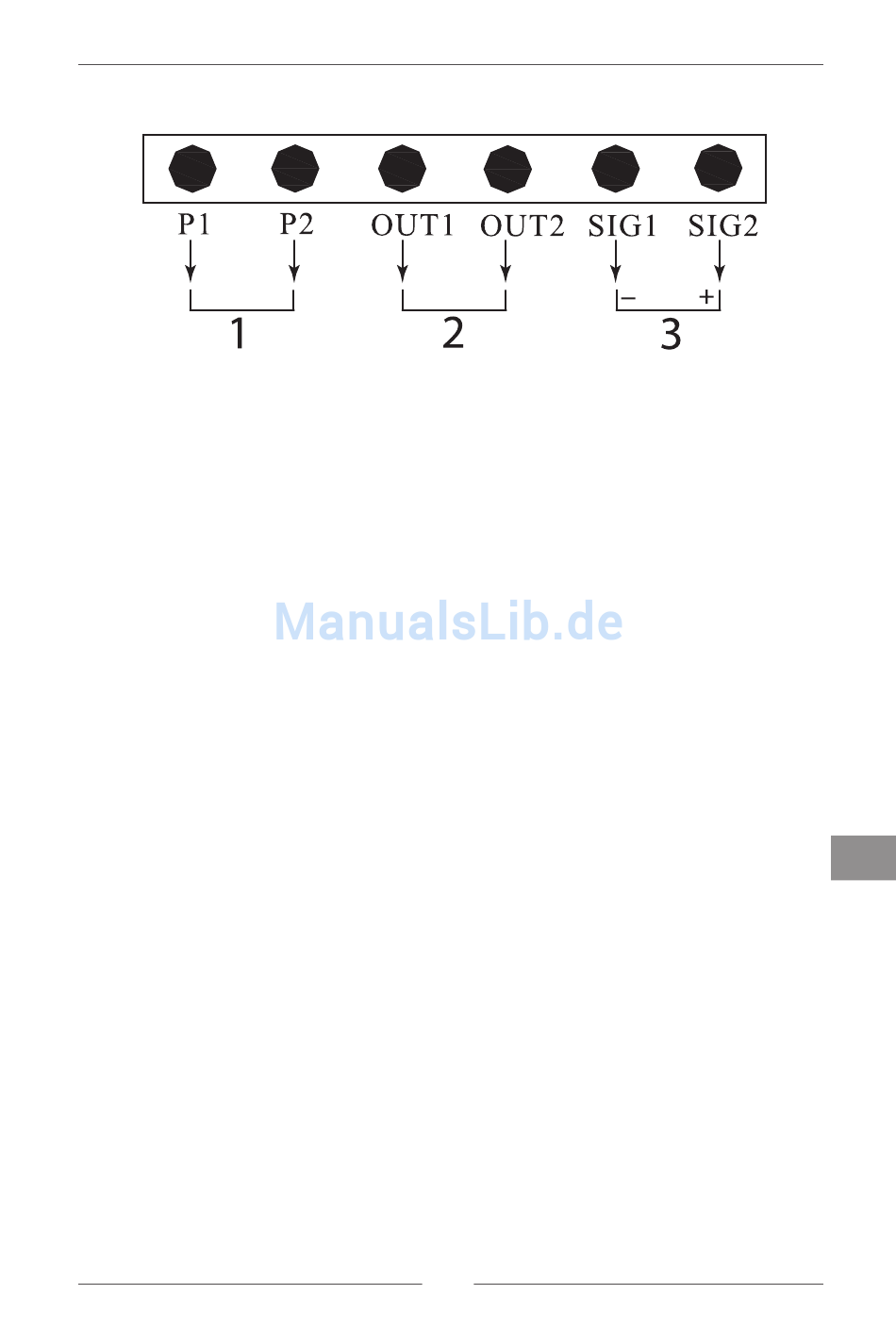

6. TERMINAL BLOCK FIGURE
1. Power input
2. NC/NO or connect with exhaust fan
3. Electrovalve
7. OPERATING INSTRUCTION
This multifunction detector can be used independently, or
with wired networks output functions.
7.1. Independently
1. WChoose a suitable position to install the detector.
2. Turn on the power supply, the device will go into the self-test
status, the power LED turns on, the alarm LED (red) flashes
for a second, and the buzzer emits a sound. Then the device
goes into the warm-up state, the green light flashes. After about
3-5 minutes, warm-up state ends, the green light turns off, that
means the detector comes into normal working status.
7.2. In wired network
1. Choose a suitable position to install the detector. To
connect the detector with the controller, with the N.C./N.O.
contact, (optional) refer to controller system instructions.
2. Turn on the power supply, the device goes into the self-
test status, the power LED turns on, the alarm LED (red)
17
EN
