Disk Drive Mounting Holes
Disk Drive Mounting Holes

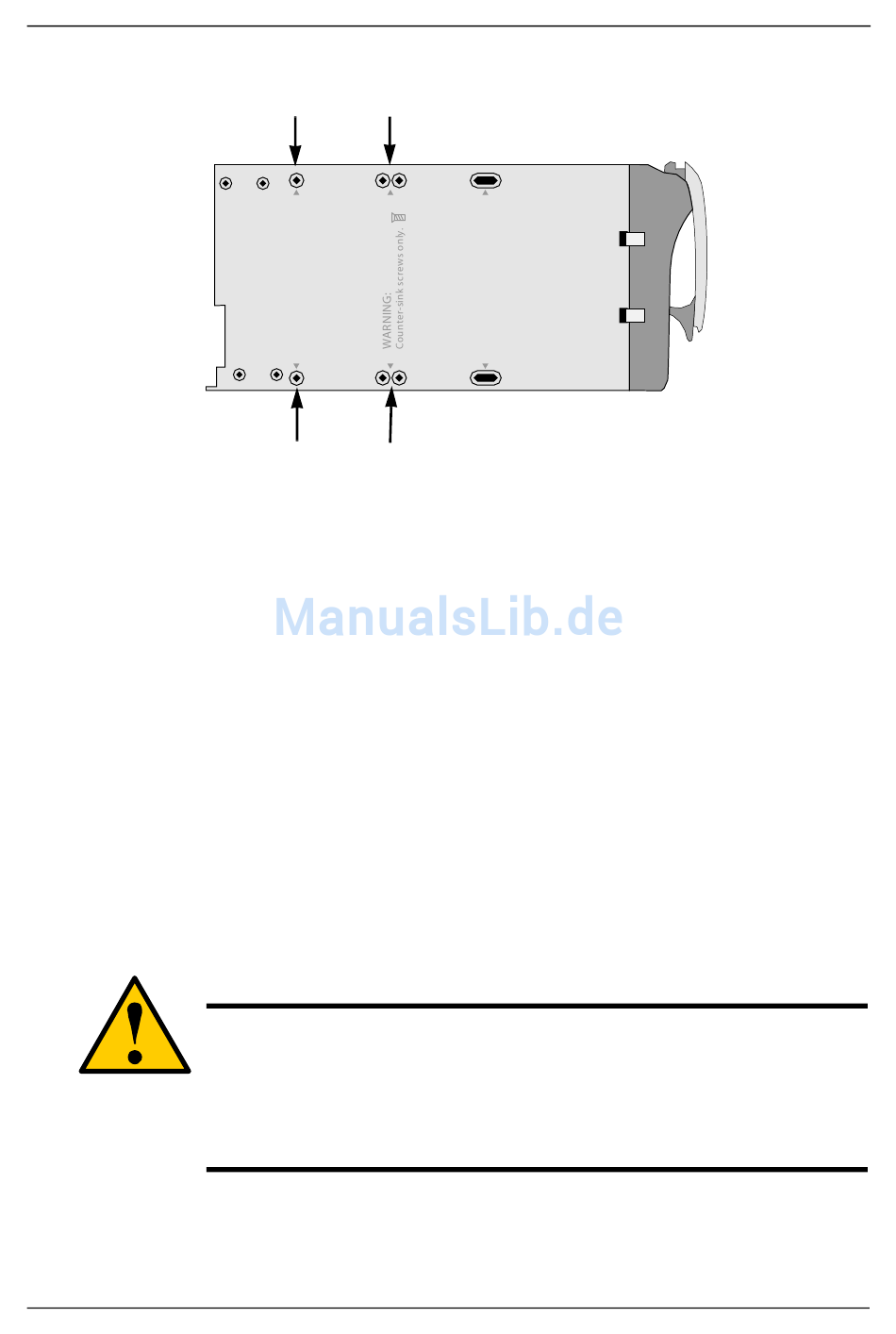

Figure 3. J300s unit drive carrier mounting holes
1. Remove the front bezel (drive door).
2. Remove a disk drive carrier.
3. Carefully lay the drive into the drive carrier at the front, so that the screw
holes on the bottom line up.
4. Insert the screws through the holes in the drive carrier and into the bottom of
the disk drive (see Figure 3).
• Install only the screws supplied with the VTrak.
• Install four screws per drive.
• Snug each screw. Be careful not to over tighten.
5. Reinstall the drive carrier into the VTrak chassis.
6. Repeat steps 2 through 5 until all of your disk drives are installed.
7. Replace the front bezel.
•
•
If you plan to operate your VTrak with fewer than a full load of
disk drives, install all of the drive carriers into the enclosure, to
ensure proper airflow for cooling.
A VTrak J300s drive carrier is similar in appearance but is
NOT interchangeable with a VTrak M500f/i/p drive carrier.
Caution
5
Step 3: Install Disk Drives
