bOX cOntEntS
• •
LanMaster 30 Outlet Identifier
• •
9 Volt Alkaline Battery
battERY

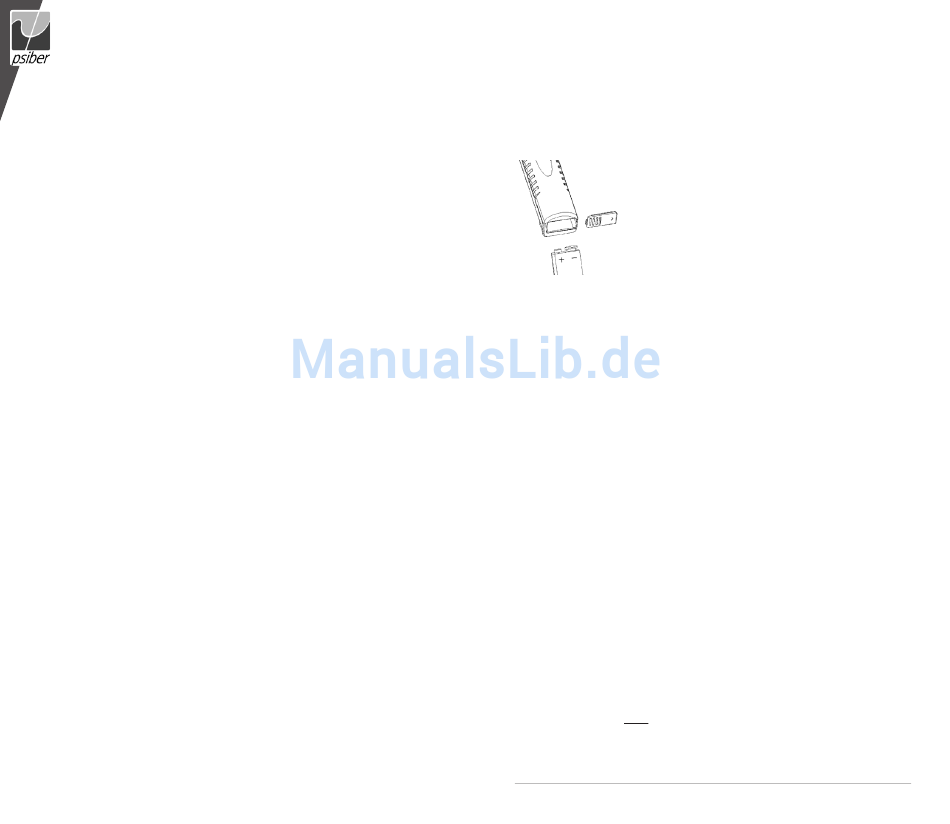

The LanMaster 30 operates on one 9 volt alkaline
battery. Remove the battery cover at the bottom
of the unit and insert the battery with the terminal
orientation as shown. Battery polarity is marked on
the back of the battery cover and inside the battery
well for reference.

tEcHnIcal OVERVIEW

The LanMaster 30 Outlet Identifier is a comprehensive signal detection,
measurement and identification device. The unit measures signals on every
combination of wire pairs in a four (RJ-11), six (RJ-12) or eight (RJ-45) wire
outlet or plug. The measurements are compared to known signal parameters
for telecommunication and data communication equipment and reported
to the user by illumination of equipment-type LEDs. A "SIGNAL" indicator
is provided to warn when signals are present at the outlet or plug that do
not correspond to known equipment parameters. A "NO LINK" indicator is
illuminated when no signals are detected on any of the wires.
The LanMaster 30 conducts a three step test that is completed in less
than six seconds. The first test measures voltages on all wire pairs and iden-
tifies an Analog, PBX or ISDN telephone circuit. The second test measures
Standard (10baseT) and Fast (100baseTX) Ethernet Link Signals and identi-
fies the operating mode of the far-end equipment. The third test transmits a
Token Ring voltage that causes the unit to be inserted in to a ring and then
measures the current level.

OPERatIOn

Insert the LanMaster 30 plug end in to the RJ-45 jack of a wall outlet,
or attach to a 4-wire, 6-wire or 8-wire patch cable with the RJ-45 coupler
provided. Press and hold the "TEST" button.
RJ-45 Coupler
User Guide
