Montagearten: Clips + Profi l
mounting type: Clips + profi le
Die Montageclpis „Clip 30mm (301)" und „Clip
30mm (316L) sind nicht für eine Montage mit
Senkkopfschrauben ausgelegt. Diese können die
Montageclips beschädigen.
Es wird empfohlen, die Montageclips „Clip 50mm"
mit Senkkopfschrauben zu montieren. Hierfür
muss zuvor das vorgebohrte Loch gesenkt
werden.
The mounting clips „Clip 30mm (301)" and „Clip
30mm (316L) are not designed for an assembly
with countersunk screws. This can damage
mounting clips.
It is recommended to assemble the mounting
clips „Clip 50mm" with countersunk screws. For
this purpose the predrilled hole has to be lowered
before.
Für die Aufnahme einer Senkkopfschraube die
Bohrung des Clips „Clip 50mm" senken.
Den Clip mit einer geeigneten Senkkopfschraube
am Untergrund befestigen (je nach Untergrund
muss dieser ggf. für die Aufnahme der Schraube
vorbereitet werden).
Lower the hole of the clip „clip 50mm" to record
a countersunk screw.
Attach the clip with a suitable countersunk screw
to the surface (depending on the surface it must
be prepared for receiving the screw).
Das Montageprofi l, mit einer Metallsäge auf die
gewünschte Länge zu sägen.
Mit einem Metallbohrer, für die Befestigung des
Profi ls, ausreichend Löcher vorbohren.
Die vorgebohrten Löcher für die Aufnahme einer
Senkkopfschraube mit einem Senker senken.
Das Profi l mit einer geeigneten Senkkopfschraube
am Untergrund befestigen (je nach Untergrund
muss dieser ggf. für die Aufnahme der Schraube
vorbereitet werden).
Cut the mounting profi le to the desired length with
a hacksaw.
With a metal drill, pre-drill adequate holes for
mounting the profi le.
Lower the pre-drilled holes with a sinker for recei-
ving a countersunk screw.
Attach the profi le with a suitable countersunk
screw to the surface (depending on the surface it
must be prepared for receiving the screw).

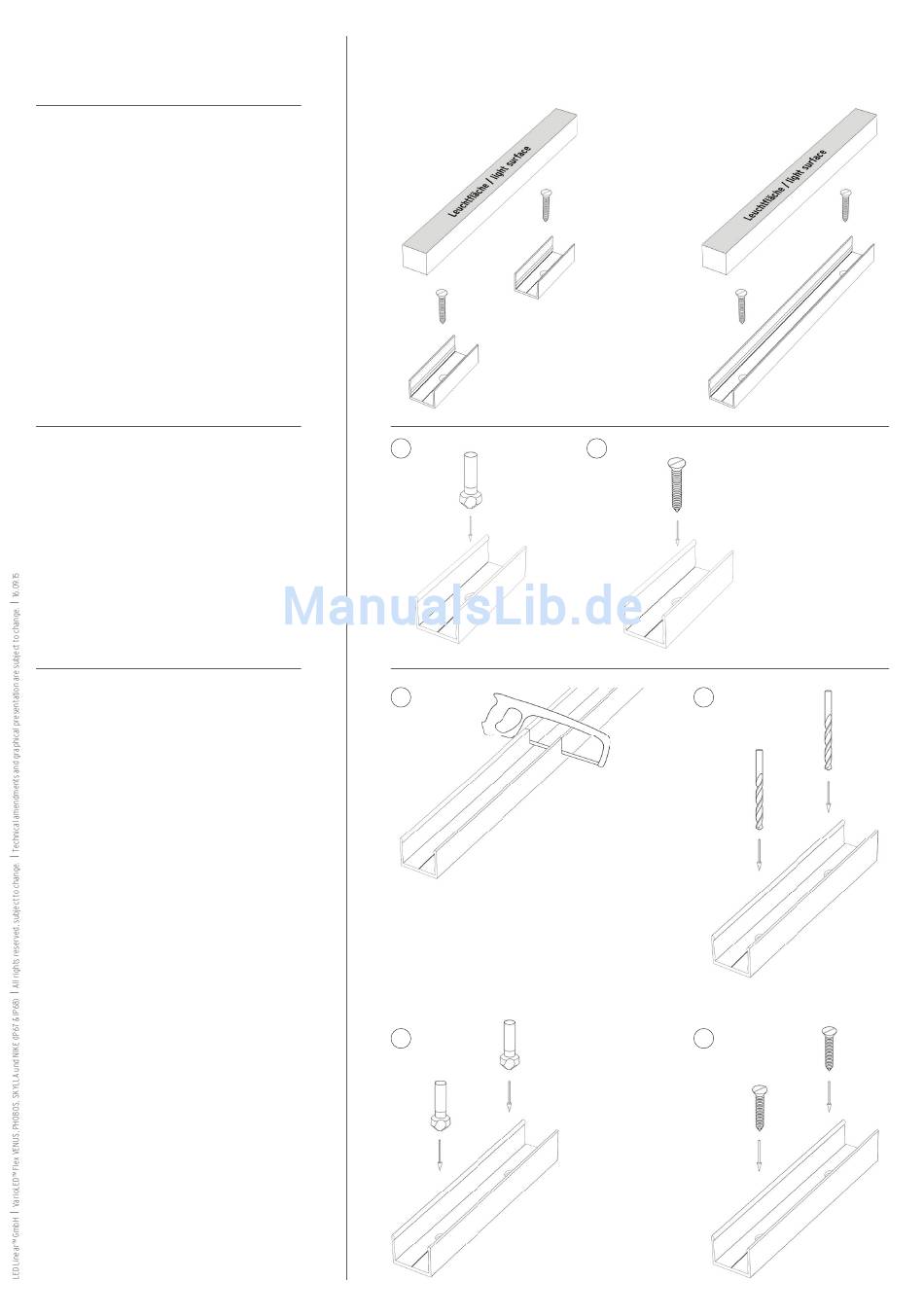

Clip Montage
Clip mounting
1
1
3
S. 11
Profi l Montage
Profi le mounting
2
2
4
