Hand-Held Transmitter Operation - Power Dynamics 179.100 Gebrauchsanleitung

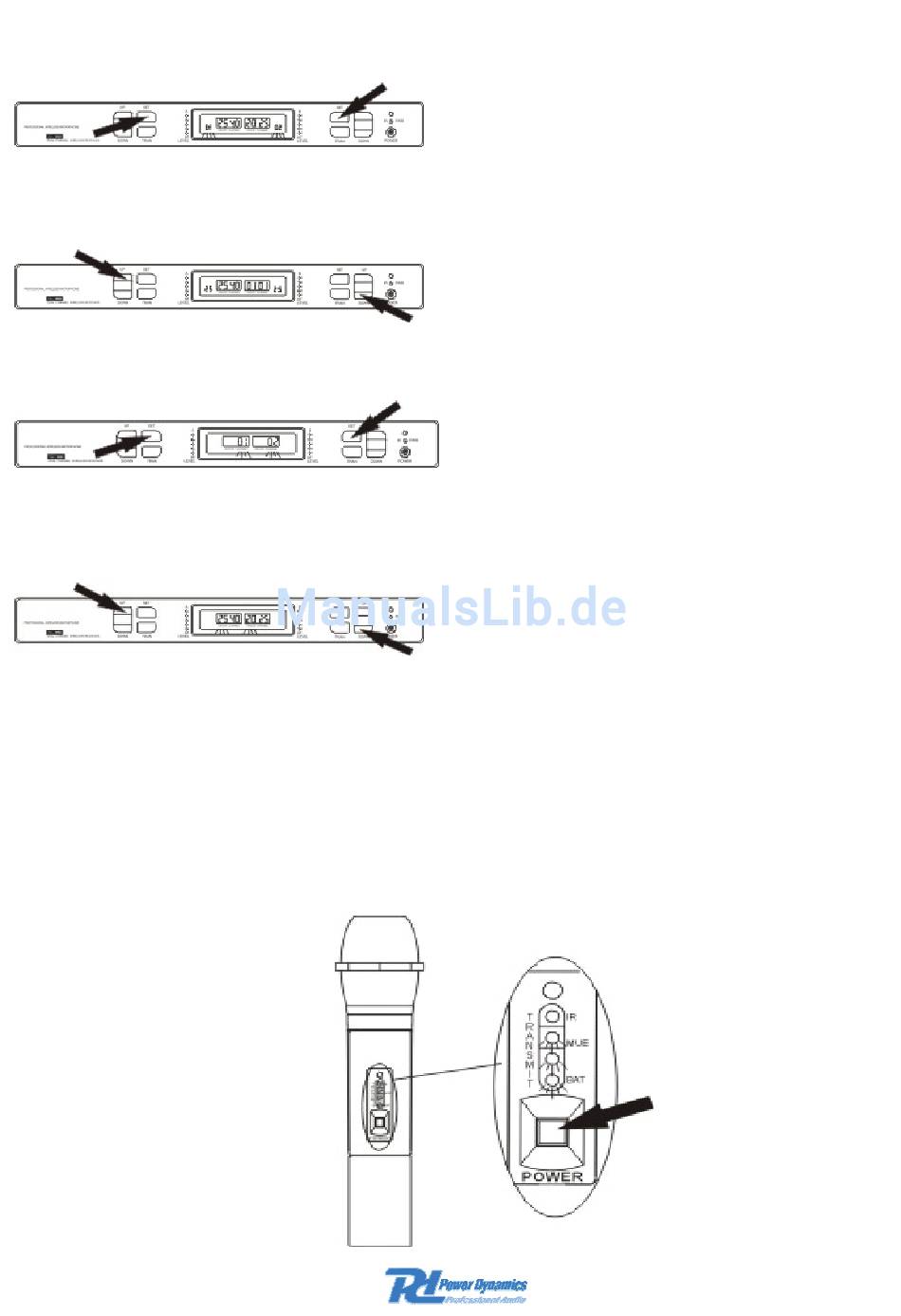

Group set up : Press Set button, group display will flash.
Press ▲ and ▼ buttons. Select a group as required.
SQL installation : Press SET button. The SQL display will flash.
Press ▲ and ▼ buttons. Select a SQL setting as required.
Note : For all Group/Channel/SQL settings, the receiver first processes the data and then
transfers the data to the transmitter by infrared link. Data will be retained until the receiver is
reset.

HAND-HELD TRANSMITTER OPERATION

Don't turn on the transmitter when the receiver is off. The channel has to be set well too before.
Length press 2a3 seconds the Power button of the transmitter . The IR/MUE/Bat indicator lights,
the transmitter entering adjusting code and transfers the RF signal.
