1. Antenna: Attach the flexible antenna to the transmitter
2. IR / Mute indicator: Green light means waiting for a code. Red light indicates mute mode. If the
indicator is off, the system is in normal operation mode.
3. Power battery indication: Red light indicates a low battery power.
4. Power On / Off button.
5. Input Connector : To suit Lavalier mic. / Headband mic. / Guitar - system.
6. IR sensor.
7. Battery cover.
8. Audio Gain to control the audio sensitivity.

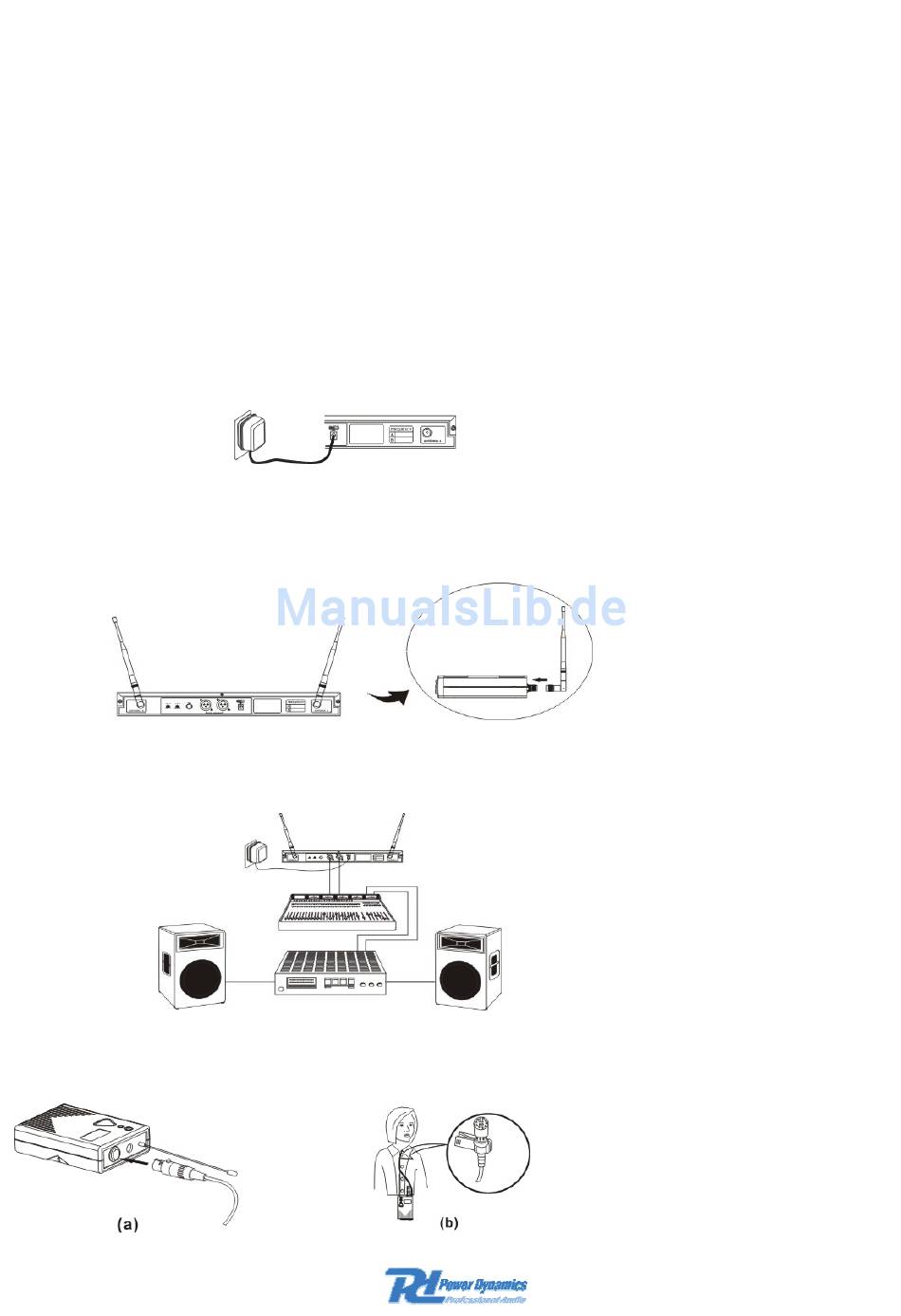

SYSTEM CONNECTIONS

Receiver Power Connection
Connect the AC adaptor into the DC power connector on the back of the receiver. Plug the
adaptor into a mains outlet.
Antenna Connection
Attach the two antennas to the Antenna connectors.
Audio connection
Connect the audio cable from audio output on the receiver to the input on the amplifier micer
equipment.

TRANSMITTER CONNECTIONS

Lavalier microphone
