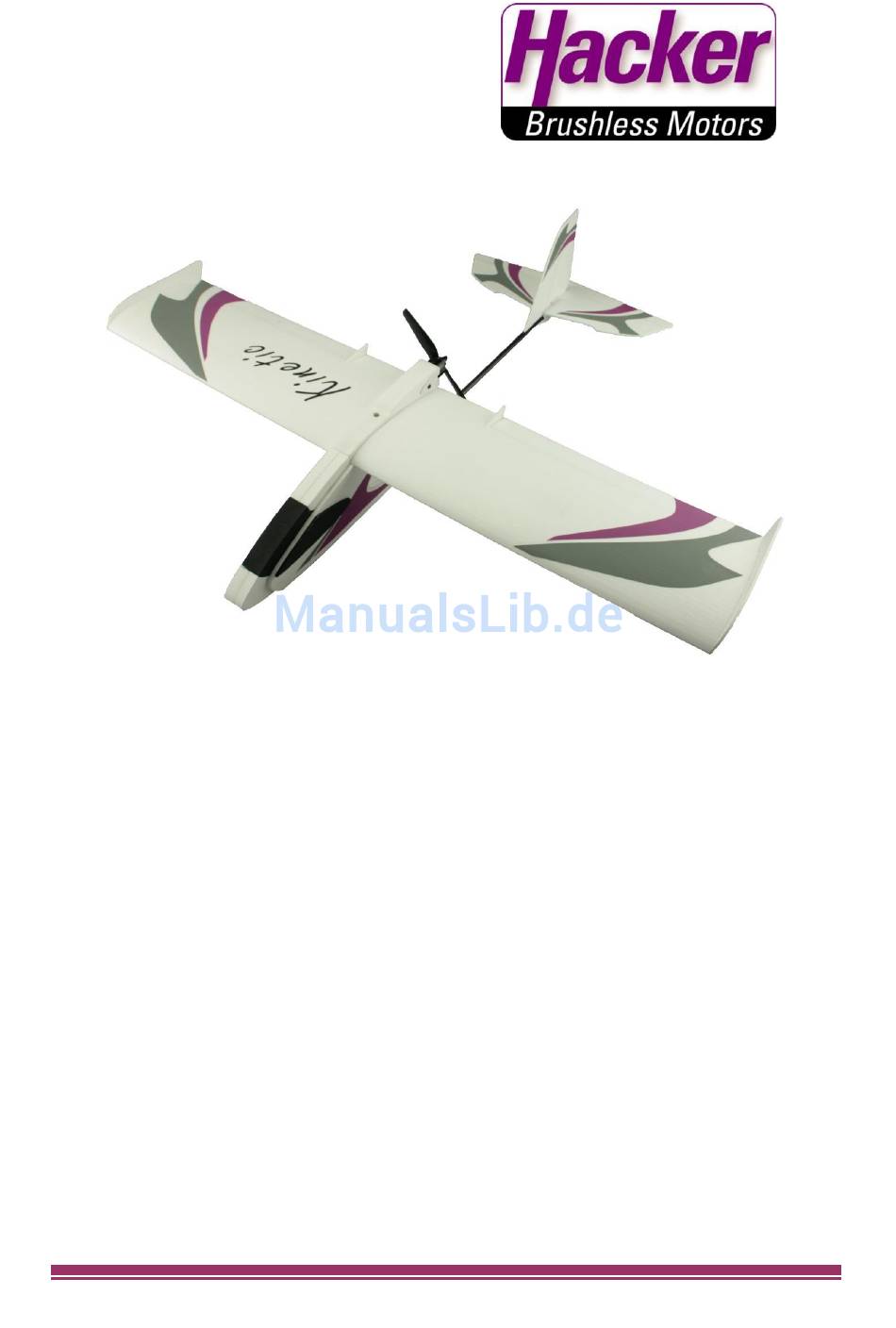

Hacker Kinetic
Montage- und Betriebsanleitung / Manual
Lesen Sie bitte vor der Inbetriebnahme die Anleitung sorgfältig durch.
Please read this instruction manual carefully before starting operation.
Vielen Dank für Ihr Interesse an unseren Produkten. Wir haben viel Zeit und Sorgfalt in dieses ganz
besondere Flugmodell investiert, um Ihnen ein Höchstmaß an Freude und Spaß beim Fliegen zu
bereiten. Es wurde auf beste Flugeigenschaften, eine hohe Materialqualität und eine praxisgerechte
Fertigung geachtet.

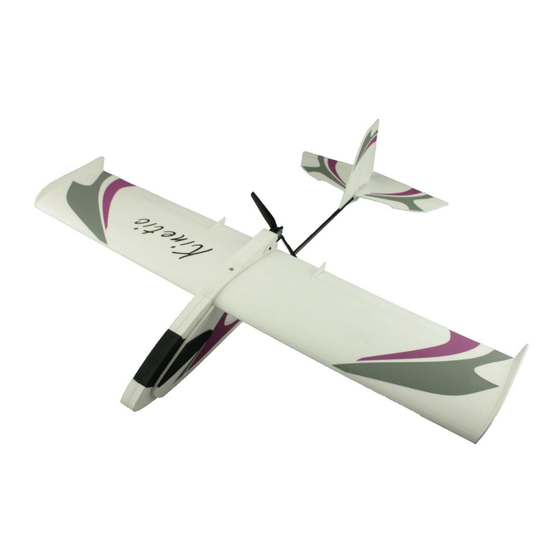

Die Kinetic ist sowohl für Einsteiger als auch für Profis geeignet. Das Modell besteht aus einem neu
entwickelten Material das sehr robust und gleichzeitig trotzdem sehr flexibel ist. Vorbei sind die
Zeiten wo man nach einer missglückten Landung frustriert nach Hause fahren muss weil der Flügel
oder das Leitwerk gebrochen ist. Dieses Material verzeiht fast jeden Fehler. Die Position des Antriebs
wurde bewusst so gewählt, so sind Motor und Propeller bei Landungen geschützt.
Gleichzeitig haben wir auch darauf geachtet das der Profi nicht zu kurz kommt. Das Modell ist
außerdem voll kunstflugtauglich. Ein handliches Kofferraummodell für jeden Modellpiloten.
The Kinetic is perfect for beginners and as well for professional pilots. The model consists of a new
developed material that is very strong, while still very flexible. Gone are the days where you have to
go home frustrated after a failed landing because the wing or the tail is broken. This
material
very
forgiving. The position of the drive has been deliberately chosen so as engine and propeller at
landings are protected.
At the same time we also have on the attention of the professional is not neglected. The model is
controled by aileron and elevator and its fully aerobatic. A plane for each model pilot.
Anleitung / Manual Hacker Kinetic
© 2016 Hacker Motor GmbH
Seite / page 1

Werbung

loading

Inhaltszusammenfassung für Hacker Kinetic

  • Seite 1 Ein handliches Kofferraummodell für jeden Modellpiloten. The Kinetic is perfect for beginners and as well for professional pilots. The model consists of a new developed material that is very strong, while still very flexible. Gone are the days where you have to go home frustrated after a failed landing because the wing or the tail is broken.
  • Seite 2 Die Fernsteuerung (Sender) muß immer eingeschaltet sein, solange das Modell in Betrieb ist. Nach der Landung ist immer zuerst der Flugakku abzustecken, erst danach darf die Fernsteuerung ausgeschaltet werden. Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 2...
  • Seite 3 Nach dem Flug ist der Flugakku vom Modell zu trennen. Lassen Sie den Flugakku nicht angesteckt, wenn Sie das Modell nicht benutzen (z.B. bei Transport oder Lagerung). Andernfalls kann der Flugakku tiefentladen werden, dadurch wird er zerstört/unbrauchbar! Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 3...
  • Seite 4 A street with many trees or street lamps. Close to high voltage electrical wires. High Population density areas. Please disconnect the lipo packs when finished flying. Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 4...
  • Seite 5 In this case, there is immediate danger of fire and explosion! Recharge the rechargeable batteries about every 3 months, because otherwise there may be a total discharge due to self-discharge, which makes the rechargeable batteries useless. Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 5...
  • Seite 6 6 x 3 2. Benötigtes Zubehör / Required accessoires Fernsteuerung mit mindestens 4 Kanälen / TX with minimum 4 channels : z.B Hacker DS-5 Flugakku / Lipo battery : 7,4V 2S 500mAH Hacker Top Fuel Eco-X Lipo Ladegerät / Lipo charger 3.
  • Seite 7 Slide the propeller onto the motor shaft and tighten it with the supplied nut. The inscription on the propeller must face in the direction of flight. Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 7...
  • Seite 8 Ruderausschlag Höhenruder (oben/unten): 5mm 3mm Ruderausschlag Querruder (oben/unten): 4 mm/4mm Travel elevator (up/down): 5mm/3mm Travel aileron (up/down): 4mm/4mm Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 8...
  • Seite 9 Geben Sie ca. 50% Gas und werfen das Model direkt gegen den Wind im leichten Winkel (ca. 5-10%) nach oben. Auf Sicherheitshöhe reduzieren sie das Gas und trimmen das Modell, falls notwendig, mit den Trimmfunktionen am Sender. Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH Seite / page 9...
  • Seite 10 Beachten sie die Bedienungsanleitung und Gefahrhinweise der Akkus. / refer to the manual of the battery for safety instructions Das Hacker-Team wünscht Ihnen viel Spaß und schöne Flüge. The Hacker- Team wishes you lots of fun and enjoyable flights. Anleitung / Manual Hacker Kinetic © 2016 Hacker Motor GmbH...
  • Seite 11 Weiterführende Ansprüche wie etwa Folgeschäden werden nicht übernommen. Guarantee Hacker guarantees this product to be free from defects in materials and workmanship for a period of 24 months (Europe only) from the original date of purchase verified by sales receipt.
  • Seite 12: Ce-Declaration Of Conformity (Doc)

    Downloadbereich einsehen. CE-Declaration of Conformity (DOC) Hacker Motor GmbH declares that the product complies with the essential requirements of the EMC Directive 2014/30/EU. You can ask for the DOC direct at Hacker Motor GmbH - Schinderstraßl 32 - 84030 Ergolding or download at www.hacker-motor.com...
