USB Mode

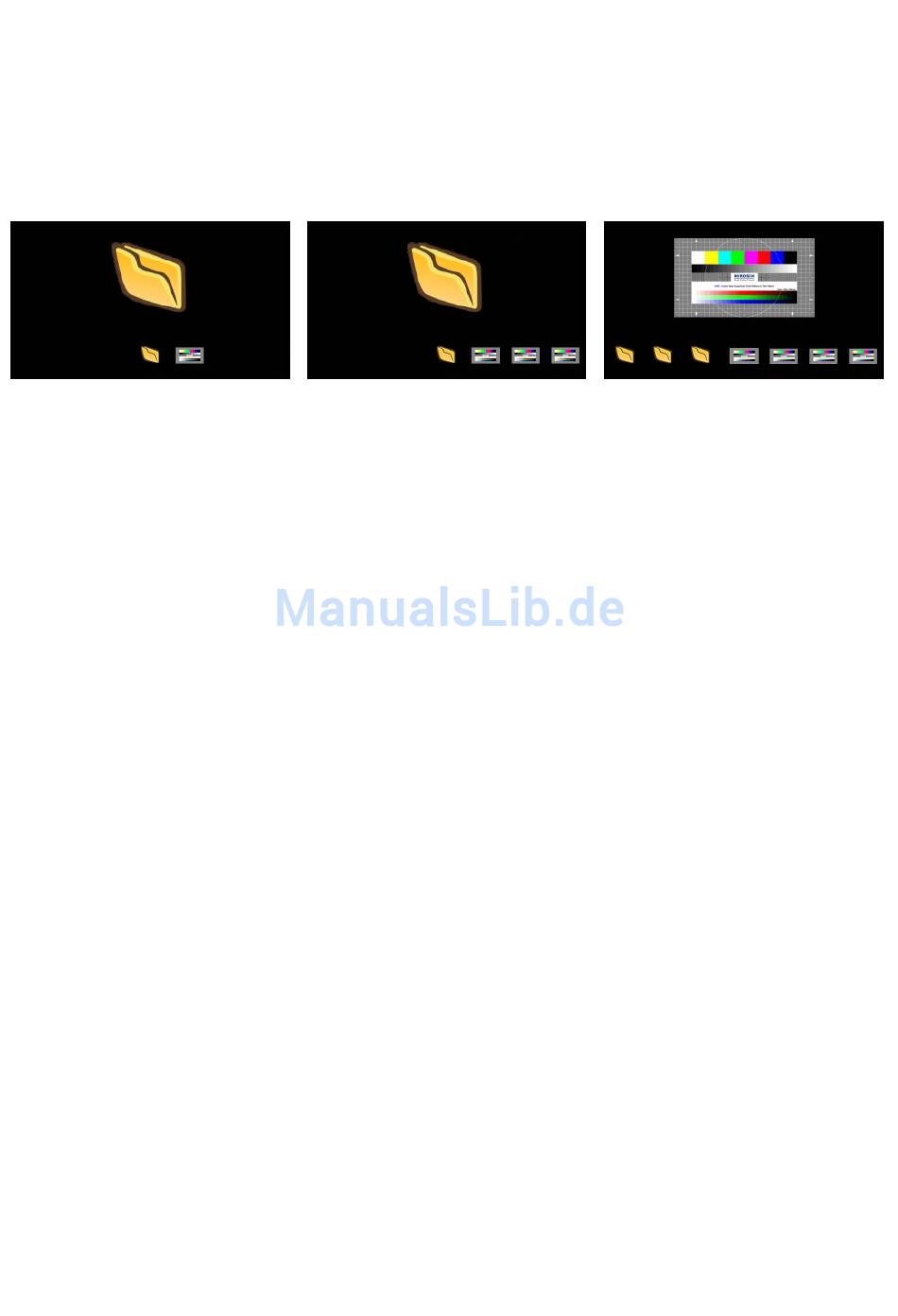

To start the USB mode, press the USB key (#16). A split image with the available folders and stored pictures
will be displayed. Additionally a status line with picture information is shown on the bottom of the screen.
Pressing the VZ key (#12) returns to the camera live image temporarily. The presentation will stay at the last
shown picture, to continue use the USB key.
To select one of the currently displayed pictures move the picture bar with the NAVIGATION keys and
confirm it with the ENTER key. Use MEMORY keys 4/6 to show the previous/next picture. Use the ENTER
key (#21) to return to the split view.
VZ
initial screen
Use your computer for organization of the USB storage device like creating or deleting folders, moving
pictures from one folder to another, deleting pictures or formatting of the USB storage device.
Please note formatting the USB storage device will delete all data.
Supported file systems are FAT16 and FAT32. Supported picture file format is JPG format.
Saving Visualizer Settings onto a USB-Stick
The Visualizer offers the opportunity to save menu settings and preset settings onto an USB stick (USB
storage device) as an XML file.
Change the settings to the desired values and store it on the USB stick (in the on-screen menu, Advanced
Settings / USB Stick Settings).
When you connect the USB stick with the prepared XML-file, a respective on-screen message will pop-up
for information.
As soon as the USB-stick is removed, the previous settings are restored.
The file will be stored in the default USB folder which can be changed in the on-screen menu
(„WOLFVISION" by default).
All settings of the Visualizer can be changed in the on-screen menu (see next page).
Built-in Digital Scaler (for Extern-in and USB-Stick)
The Visualizer has a built-in digital image scaler which can process the signal from the external input and
output it in the same mode as the Visualizer image (For example: If the Visualizer is set to output an 1080p
(FullHD) image to the projector and the computer outputs an XGA signal, the scaler of the Visualizer
converts the XGA image of the computer to 1080p. As a result the projector does not readjust the input
mode when switching between the Visualizer and computer image).
In addition images on a connected USB-stick are automatically scaled to the current output mode of the
Visualizer.
The output resolution of the Visualizer can be changed in the on-screen menu.
Integrated Seamless Switch
The Visualizer has an integrated Seamless Switch.
This allows for a seamless transition (fade-over/dissolve effect) when switching between the Visualizer
image, the image from the external input, the internal image memory of the Visualizer and images on an
USB-stick. This feature makes switching from one media to the other appear very smooth and professional.
The behavior of the Visualizer can be changed in the on-screen menu (see next page).
(1/2) (1/9) /WOLFVISION
selected folder "WOLFVISION"
.. (1/4) (1/9) /WOLFVISION
8
selected image "pattern.jpg"
(1/9)
