Condair RCC Installations- Und Bedienungsanleitung Seite 4

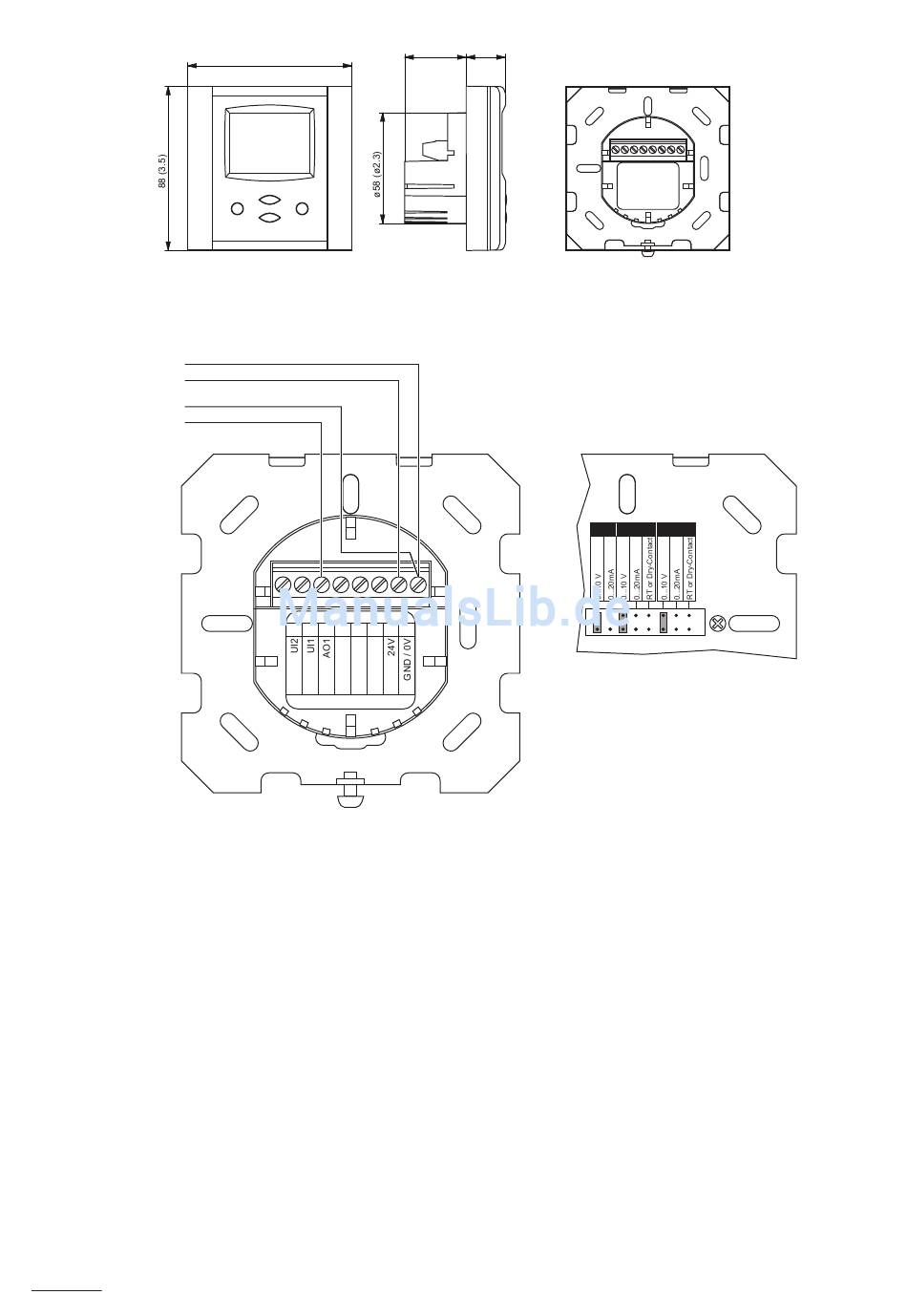

6.2 Dimensionen [mm] (")
6.3 Elektroschema/Konfiguration
0V / GND
24 V AC/DC ±10%
0V / GND
0...10 VDC/0...20 mA
4
6.2 Dimensions [mm] (")
88 (3.5)
6.3 Wiring diagram/Configuration
RCC
8 7 6 5 4
8 7 6 5 4 3
21 (0.8)
32 (1.2)
3 2 1
2 1
6.2 Dimensions [mm] (")
6.3 Schéma électrique/Configuration
AO UI1 UI2
