Installation
In order to avoid an interference
of the network by disturbances/
alterations in the range of the
230-V-installation please always
disconnect the power supply of
the active devices as IP-Switch
Master of those of other power
consumers (coffee machine,
hover, radio etc.).
Use a separate circuit, an insu-
lated overvoltage protection
(C-arrester) and label the circuit
as well as the belonging jacks
clearly with "EDP".
For installing the switching system
pay attention to the following
order:
1
Connect the mains voltage to
the screw terminals L and N
according to fig. 8.
2
Attach the cover of the electri-
cal distribution box.
16
3
Plug the patch cord of the
terminal devices in the corres-
ponding jacks (fig. 6).
4
For the disconnection of the
patch cord from the terminals
press the release knob above
of the respective terminal at
first and then extract the plug
from the terminal (fig. 7).

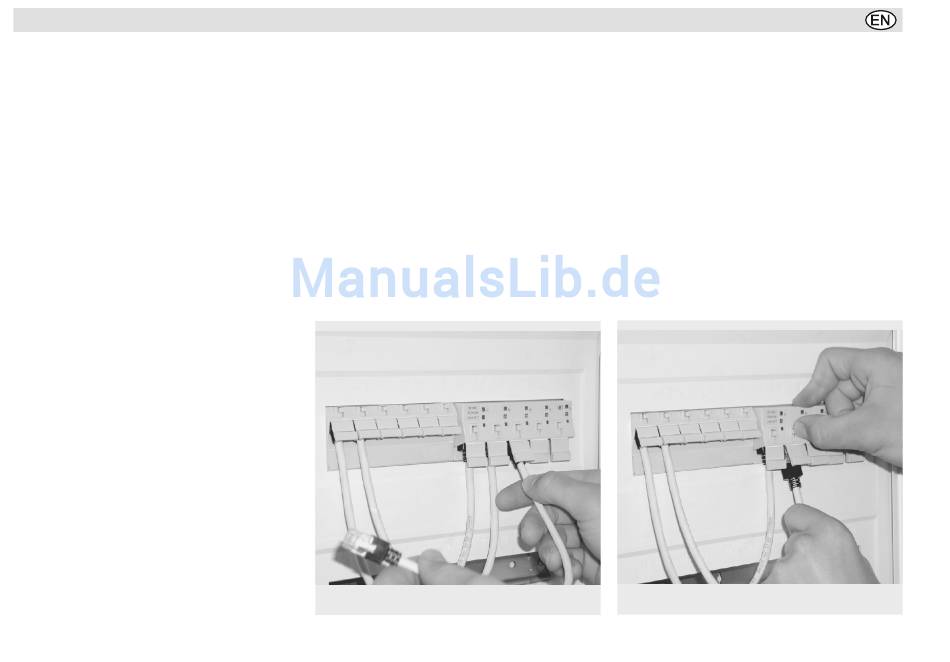

Figure 6
5
Shut the jacks, you do not use,
with the dust cover by pushing
it back till it snaps.
Figure 7
