5. Transport and start up

5.1 Transport and installation

The machine is designed to operate in
closed rooms and must be placed
stable on firm and levelled ground.
The machine can be bolted down if
required.
For packing reasons the machine is
not completely assembled
5.2 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
a mild solvent.
Note: Assemble the stand and mount
bed to stand before firmly tightening
all nuts, to avoid bed distortion.

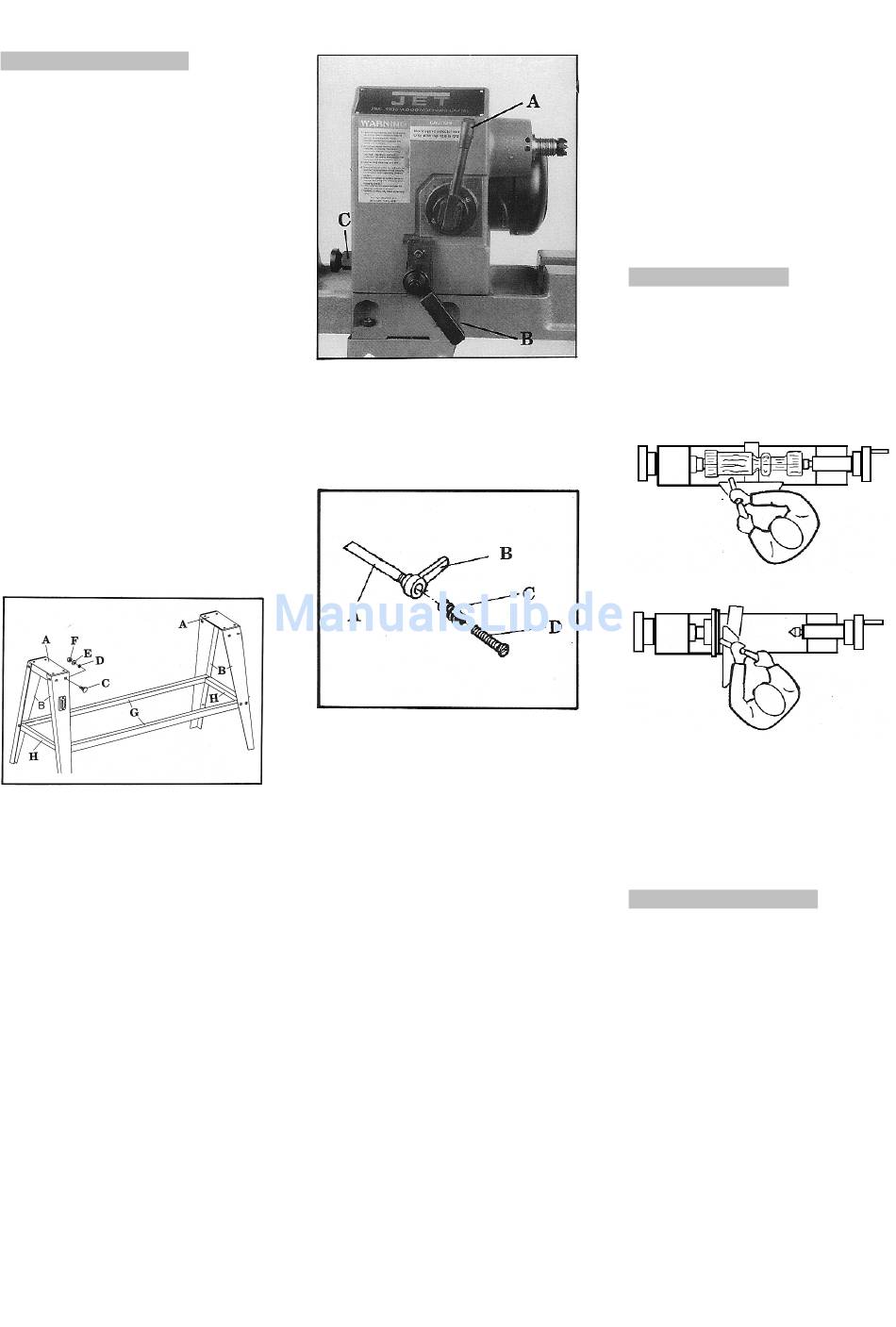

Attach the stand as shown in Fig. 1
Fig 1
The machine bed is heavy! With the
help of a second person, carefully lift
bed up and onto stand.
Be sure to place headstock to the end
with the switch.
Attach the bed with 8 hex socket cap
screws, 8 lock washers and 8 nuts.
Tighten all stand hardware making
sure it is stable on the shop floor.
Attach the bed extension using 2 hex
socket cap screws and 2 lock
washers.
Insert index plunger (C, Fig 2) into the
headstock and tighten.
Fig 2
Attach the headstock lock handle (B,
Fig 2) with one spring and one hex
socket cap screw (Fig 3)
Fig 3
Attach the tailstock handle to the
tailstock hand wheel.
Connect the motor cord plug to the
switch plug.

5.3 Mains connection

Mains connection and any extension
cords used must comply with
applicable regulations.
The mains voltage must comply with
the information on the machine
licence plate.
The mains connection must have a
10 A surge-proof fuse.
Only use power cords marked
H07RN-F
Connections and repairs to the
electrical equipment may only be
carried out by qualified electricians.
5
5.4 Dust collection
Use a suitable dust collection and
filtration system to avoid a high dust
concentrations in the air.
5.5 Starting operation
You can start the machine with the
green on button. The red button on the
main switch stops the machine.
6. Machine operation
Successful wood turning does not
result from high speeds, but rather,
from the correct use of turning tools.
A perfect and sharp wood turner tool
is a precondition for professional
wood-turning.
Fig 4
Always support the tool on the tool
rest and guide with the palm of your
hand keeping your fingers closed.
7. Setup and adjustments
General note:
Setup and adjustment work may
only be carried out after the
machine is protected against
accidental starting by pulling the
mains plug.

7.1 Changing spindle speeds

The speed selector (A, Fig2) selects
one of six available speeds.
Select desired speed by pulling handle
and turning left (lower speeds) or right
(higher speeds).
