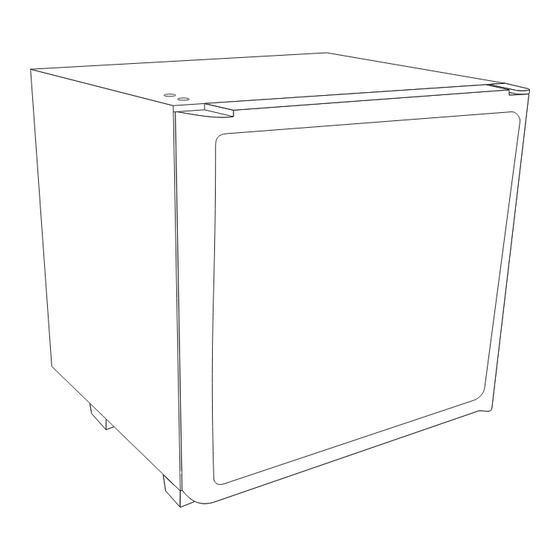

RH 023 LDA RH 023 LDAG Type: MF20-60 Operating Instructions Bedienungsanleitung Mode d'emploi Istruzioni per l'uso Handleiding Manual de Instrucciones Instruções de Utilização Bruksanvisning Bruksanvisning Betjeningsvejledning Käyttöohje 207.5191.31...
Seite 2
Please read these operating instructions carefully before putting the refrigeration unit into operation. If you later sell or dispose of it, please ensure that the new owner receives these operating instructions. Please follow the installation details below carefully Guarantee is valid for products installed as described only.
The warranty does not apply if the installing and operating instructions are not adhered to. When contacting Dometic Service Network, please state the model, product number and serial number. You will find this information on the data plate inside of the refrigerator.
6. Hinge plate (if available) 3. Thermostat knob IN CASE IF YOUR REFRIGERATOR IS EQUIPPED WITH LOCK, DOMETIC ZRT DO NOT ACCEPT LIABILITY FOR LOSS OR DAMAGE OF KEYS. HOWEVER WE WOULD BE HAPPY TO SUPPLY A COMPLETE LOCK AND KEY REPLACEMENT.
3. Cleaning 6. Air passing through the duct must not be preheated by any source of heat Clean the refrigerator thoroughly at intervals, as 7. Ventilation grills, if used, must have an free necessary. Remove the shelves; these, the openings of at least 200 cm² each cabinet interior and the door should be washed with a warm solution of sodium bi-carbonate.
5. Using the appliance system built into the appliance by switching off the unit for two hours in every 24 hours. The frost will To start the refrigerator connect the plug to the socket melt and the defrost water will run through the outlet and switch on the socket.
10.2.Reversing the door hang at a fridge with lock RH023LDA fig 7 Proceed according to 10.1 with the following supplement: Remove the hinge plate (3), then reversing place it into the open hinge-hole of the bottom righthand hinge. 11. Replacing the decorative Figure 7.
In the event of a fault developing, contact your nearest Service Centre-see local telephone directory. 14. Putting into operation Technical data: Model RH 023 LDA RH 023 LDAG Type MF20-60 MF20-60 Gross volume 23 litres 23 litres Mains operation...
It is not permitted that this product be disposed of by way of the normal household refuse collection system. Dometic refrigerators bear this symbol on the specifications plate (data plate) to be found in the interior of the unit. This appliance complies with the following EEC...
Seite 10
Vor Inbetriebnahme des Kühlgerätes sollten Sie diese Bedienungsanleitung sorgfältig lesen. Beim Verkauf oder bei Weitergabe an einen neuen Besitzer muss auch die Bedienungsanleitung weitergeleitet werden. Beachten Sie die nachfolgend aufgeführten Installationshinweise. Die Garantie gilt nur für Produkte, die entsprechend dieser Beschreibung installiert wurden.
Seite 11
Die Garantie erlischt, wenn das Gerät nicht gemäß den Anweisungen installiert und benutzt wird. Nennen Sie bitte das Modell sowie die Produkt- und die Seriennummer des Geräts, wenn Sie sich mit dem Dometic Servicenetzwerk in Verbindung setzen. Diese Informationen finden Sie auf dem Typenschild im Innern des Kühlgerätes.
4. Verdampferplatte 5. Beleuchtung (wo vorhanden) 2. Sensor 3. Thermostatregler 6. Scharnierplatte (wo vorhanden) BEI GERÄTEN MIT SCHLOSS ÜBERNIMMT DOMETIC ZRT KEINE HAFTUNG FÜR VERLUST ODER BESCHÄDIGUNG VON SCHLÜSSELN. WIR SIND JEDOCH GERN BEREIT, SCHLOSS UND SCHLÜSSEL ALS ERSATZTEIL-SET ZU LIEFERN.
3. Reinigung 3. Die Belüftung muss wie in den Abbildungen A, B, C oder D gezeigt erfolgen. Das Gerät ist von Zeit zu Zeit gründlich zu 4. Der Belüftungsschacht muss die folgenden reinigen. Entfernen Sie hierzu die Ablagen. Die Mindestmaße aufweisen: 105 mm x der Ablagen, der Innenraum des Gerätes und die Tür Breite des Kühlschranks.
5. Einsatz des Gerätes Die Reifbildung wird durch die in das Gerät eingebaute FUZZY LOGIC reguliert, die das Gerät Zur Inbetriebnahme verbinden Sie das Gerät mit dem alle 24 Stunden für zwei Stunden abschaltet . Der Stromnetz. Die Kühlrippen sollten nach etwa drei Reif schmilzt, und das Tauwasser läuft über das Stunden eine feststellbare Kühlwirkung zeigen.
Abbildung 6. 10.2 Umkehren der Türaufhängung an einem verschließbaren Kühlschrank Abbildung 8. RH023LDA Abb. 7 Gehen Sie vor wie unter 10.1 mit der folgenden Ergänzung: Entfernen Sie die Scharnierplatte (3) und stecken Sie sie in das offene Scharnierloch für das Scharnier rechts unten.
Fachmann durchzuführen. Falls diese Sicherheitsmaßnahmen nicht beachtet werden, lehnt Dometic ZRt jede Haftung Elektrische Anforderungen Vor dem Einschalten ist sicherzustellen, dass die Spannungsangabe auf dem Typenschild des Gerätes der Versorgungsspannung entspricht, an die das Gerät angeschlossen werden soll.
