Connection of HPAC should be done under the
supervision of a qualified electrician.
The front cover is removed by pulling out the lower
edge and then lifting it up.
The internal covers are opened by loosening the
screws at the edges and by the electrical connec-
tion.
Check that the valves are set in the required posi-
tion. See section Shuttle valves > Valve inspection.

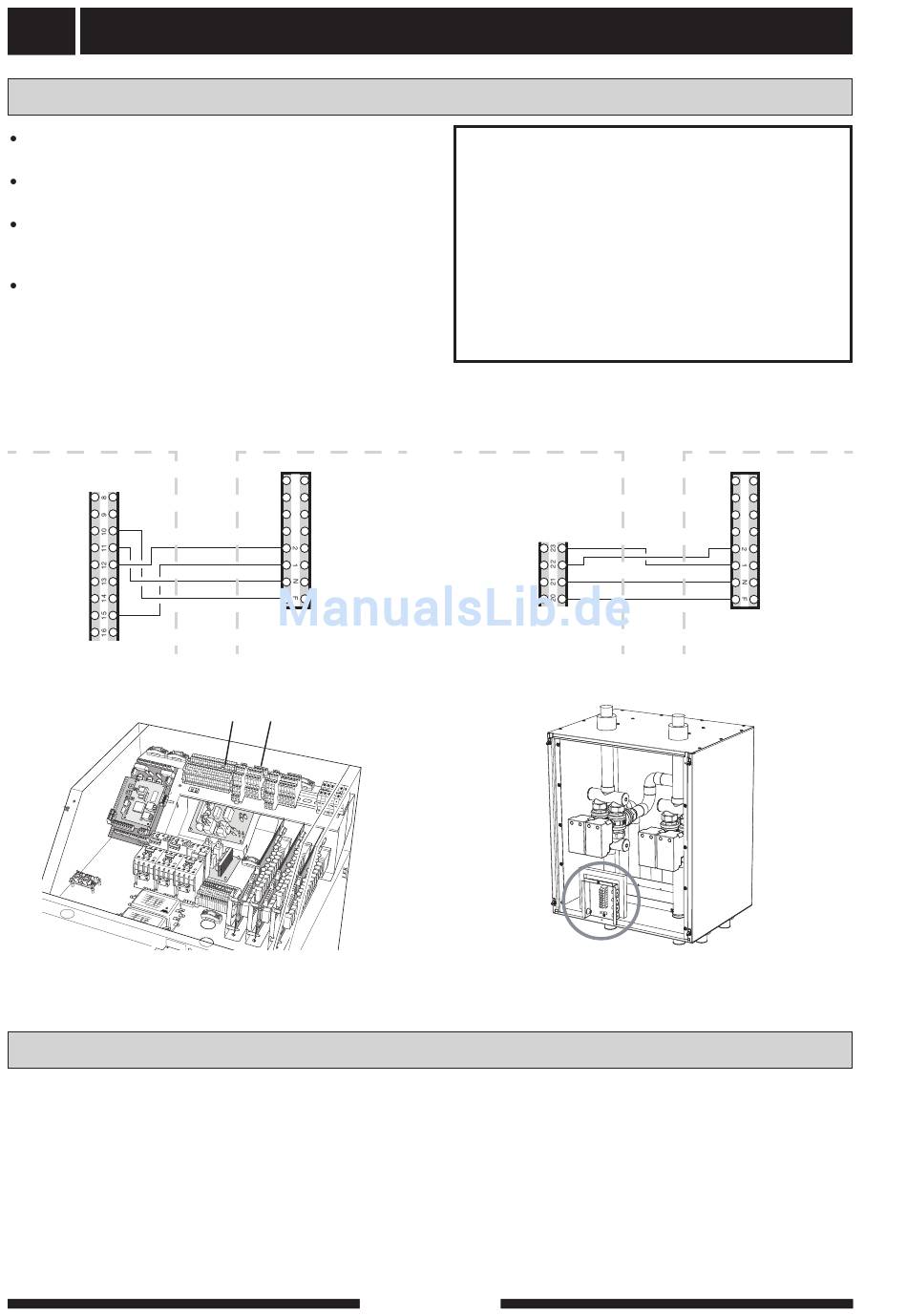

Alt.1 F1330 Basecard
FIGHTER 1330
X6
FIGHTER 1330

Description of functions / Connection to FIGHTER 1330

For a description of functions and connecting a HPAC to
FIGHTER 1330, see FIGHTER 1330 Installation and Main-
tenance Instructions section Description of Functions —
Basic Functions > HPAC.
Electrical connection

General

HPAC 42
PCX
ACX
N
230 V
X6 X6A
Electrical installation and service
must be carried out under the
supervision of a qualified electri-
cian. Electrical installation and
wiring must be carried out in
accordance with the stipulations
Alt.2 F1330 Expcard 1
FIGHTER 1330
X6A
HPAC 42
HPAC 42 HPAC 42
NOTE!
in force.
HPAC 42
PCX
ACX
N
230 V
