Installation

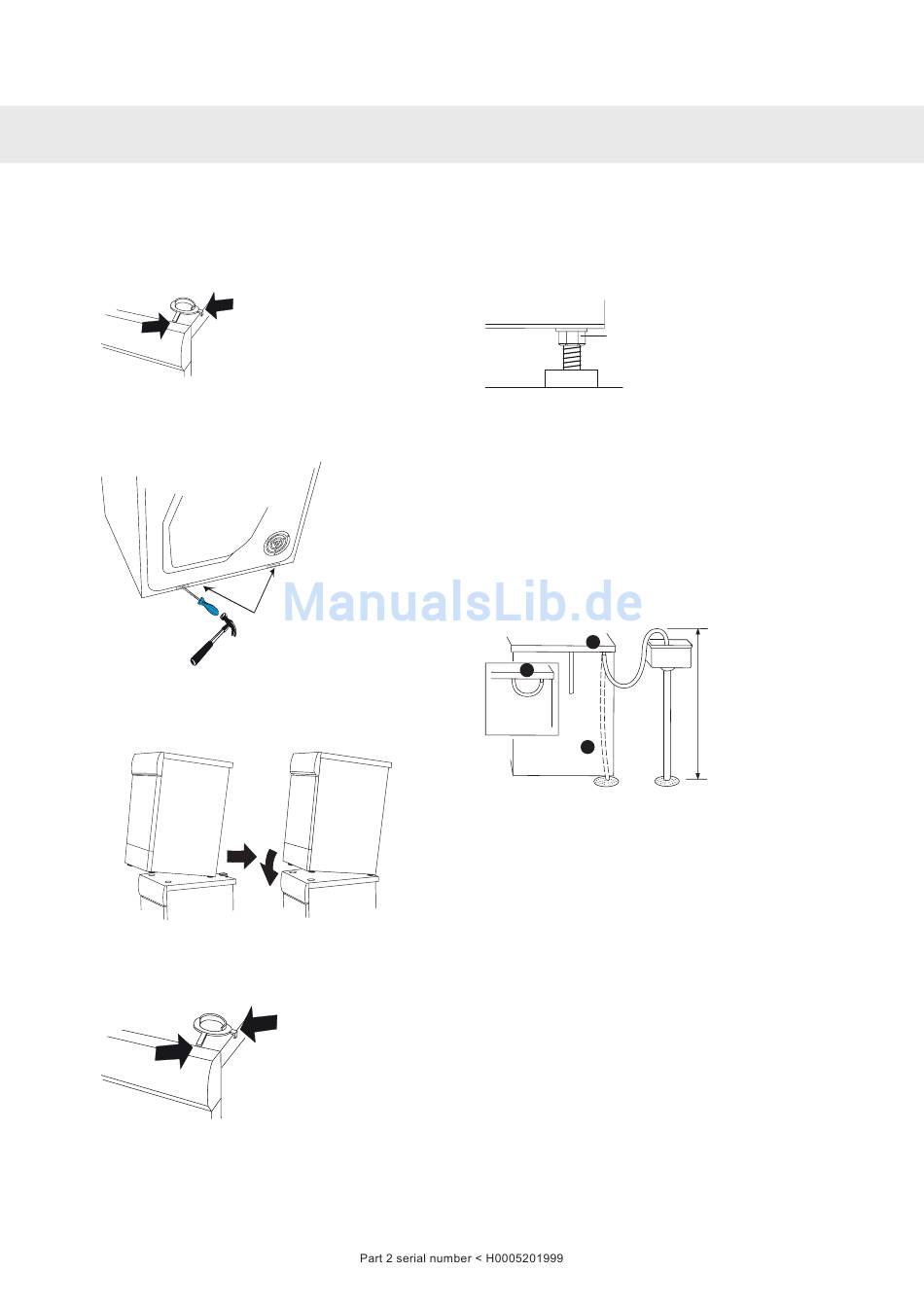

5. Fit the plastic cups so that the "tags" marked
with arrows are against the front edge or side
edge of the cover and press them firmly onto
the cover. Then break off the remaining tags.
6. Push out the knock-out hole on the back of the
dryer (you must not remove it, just open it)
using a hammer and screwdriver.
7. Push the tumble dryer in under the metal
brackets. At the same time keep the front edge
raised by 10mm to 20mm.
8. Lower the tumble dryer's front feet into the
plastic cups and adjust the dryer to ensure that
it is balanced.
20

Adjusting the feet

Screw the feet in or out so that the tumble dryer
is steady and balanced on the floor or on the
washing machine. Then tighten the lock nuts.
Locking nut

Condensed water

The machine is supplied as shown in Option 1
(inset). This means that the condensed water is
pumped into the condensed water container. This
must then be removed and emptied by hand.
Option 2 allows you to remove the small short
hose from the nipple. Attach the rubber hose
supplied to the same nipple. The water can then
be pumped out into a sink or a floor drain (2a).
2
1
2a
Max 1000 mm
