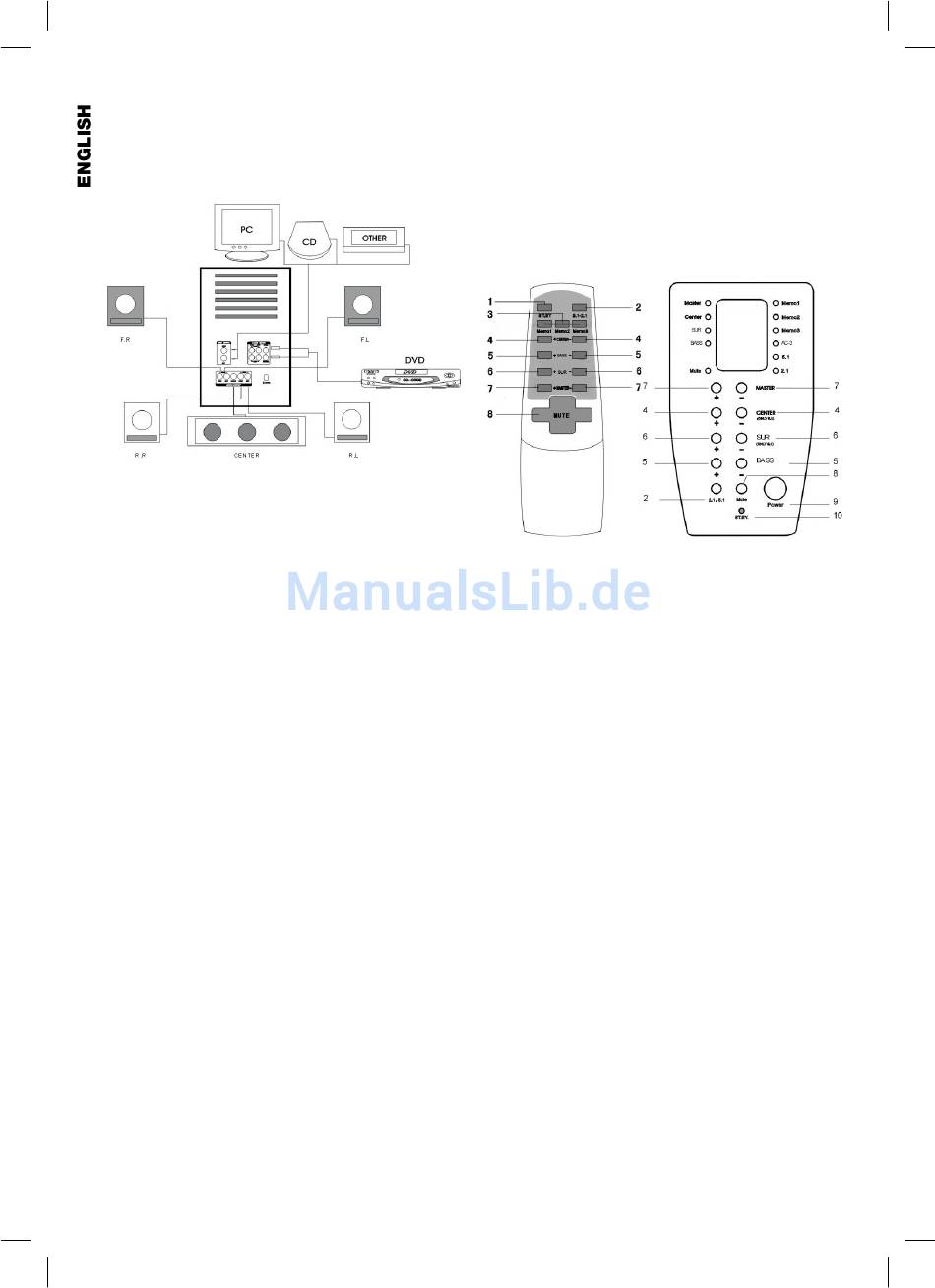

Correct connection is as follows:
When you have connected all loud speakers and devices
as described you can insert the mains plug of the sub-
woofer into a correctly installed 230 volt, 50 hertz power
socket.
Remote Control
Inserting the Batteries (not supplied)
• Open the lid of the battery compartment on the back
of the remote control.
• Insert 2 batteries of type UM4 „AAA" 1.5V. Please
ensure that the polarity is correct (see the floor of the
battery compartment or the inscription on the outside)!
If the remote control is not used for a prolonged peri-
od, remove the batteries in order to prevent battery
acid leaking.
• Always replace the complete set of batteries. Do not
replace just one battery.
Warning: batteries are not to be disposed of together
with domestic wastes. Dispose of the used batteries at the
relevant collection bin or at your dealer's.
Never throw batteries into the fire.
When the remote control is used, care should be taken
that there are no objects between the remote control and
the central loudspeaker. (e.g. table, chair, etc.). These
objects prevent the infrared beam of the remote control
from reaching the receiver of the central loudspeaker. It is
then not possible to control the television with the remote
control.
Buttons on the Remote Control and
Front Panel
1 ST.BY: Switches the system to the standby mode.
2 5.1/2.1: Switches between AC3/DTS, 2.1 and 5.1.
3 MEMO 1-2-3: For selection of three preset volume
levels. Note: These preset values cannot be changed.
4 CENTER +/-: With these buttons you can set the volu-
me of the centre loudspeaker.
5 BASS (SUBWOOFER) +/-: With these buttons you
can set the volume of the subwoofer.
6 SUR (SURROUND) +/-: With these buttons you can
set the volume of the surround loudspeakers.
7 MASTER +/-: Buttons for volume adjustment.
8 MUTE: With this button you can switch off the
loudspeakers without changing the volume.
26
NOTE: When switching off this function ensure that the
overall volume is not set to maximum!
9 POWER:
Mains switch
10 ST.BY:
Standby lamp
Note: Some buttons are located both on the front
panel of the device and on the remote control. The
buttons with the same designation have the same
function.
Initial Operation
Insert the plug in a duly installed 230V/50Hz socket.
1. Switch on your sound source (e.g. DVD player) and
start it.
2. Switch on the subwoofer with the on/off switch on the
front of the device.
3. Use the 5.1/2.1 button to select the desired input sour-
ce.
4. With the MASTER +/- regulator on the remote control
you can set the overall volume.
5. By pressing buttons 4 to 7 on the remote control or the
corresponding buttons on the front of the subwoofer,
you can set the volume of the centre, surround and
subwoofer loudspeakers.
6. To stop operation, turn off the subwoofer with the on/
off switch.
This device has been tested according to all relevant cur-
rent CE guidelines, such as electromagnetic compatibili-
ty and low voltage directives, and has been constructed
in accordance with the latest safety regulations.
Subject to technical changes without prior notice!
